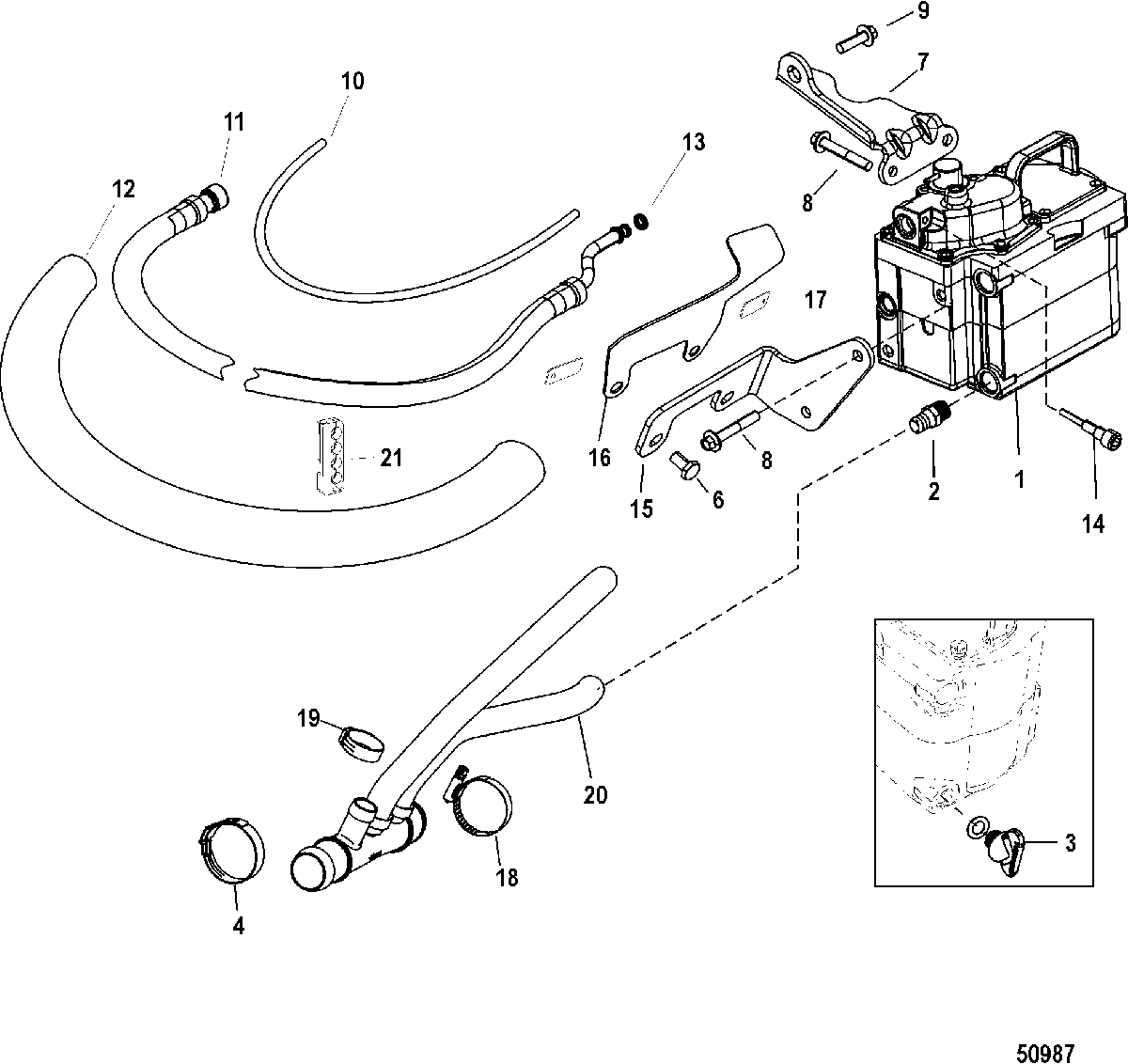

Cool Fuel System для Mercruiser - 8.2L Mag EC (H.O. Model) 2A041665 THRU 2A051740
-
№АртикулНазвание
-
18M0047215 MODULE KIT, Fuel Pump, CompleteMODULE KIT, Fuel Pump, Complete
-
18M0047215 MODULE KIT, Fuel Pump, Complete, With Drain PortMODULE KIT, Fuel Pump, Complete, With Drain Port
-
222-8M2010476 FITTING, (3/8-18)FITTING, (3/8-18)
-
322-8M0119211 PLUG ASSEMBLY, (.500-13) Blue, Housing With Drain Port OnlyPLUG ASSEMBLY, (.500-13) Blue, Housing With Drain Port Only
-
454-815504220 CLAMP, Worm GearCLAMP, Worm Gear
-
554-815504222 CLAMP, Worm Gear (1.98 DIameter)CLAMP, Worm Gear (1.98 DIameter)
-
610-40001195 SCREW, (M10 x 30)SCREW, (M10 x 30)
-
78M2017251 BRACKET, Support, Fuel ModuleBRACKET, Support, Fuel Module
-
810-4010720 SCREW, (M8 x 20)SCREW, (M8 x 20)
-
910-8M2017668 SCREW, (7/16-14 x 1.00)SCREW, (7/16-14 x 1.00)
-
1032-8M0063567 HOSE, 58.00 inch BulkHOSE, 58.00 inch Bulk
-
1132-8M0046149 LINE, Fuel, Fuel Module to Fuel RailLINE, Fuel, Fuel Module to Fuel Rail
-
12NSS NOT SOLD SEPARATE, INSULATOR SLEEVENOT SOLD SEPARATE, INSULATOR SLEEVE
-
1326-863151 SEAL, Quad RingSEAL, Quad Ring
-
1410-866114 SCREW, (.250-28) SpecialSCREW, (.250-28) Special
-
15864468T BRACKETBRACKET
-
168M0065221 SHIELD, Fuel LineSHIELD, Fuel Line
-
1754-8M6500043 CLIP, IgnitionCLIP, Ignition
-
1854-815504232 CLAMP, Worm Gear (2.50 Diameter)CLAMP, Worm Gear (2.50 Diameter)
-
1954-815504212 CLAMP, Worm GearCLAMP, Worm Gear
-
2022-8M0045363 HOSE ASSEMBLY, 3 Bib Orifice MeterHOSE ASSEMBLY, 3 Bib Orifice Meter
-
2154-8M6500044 CLIP, Ignition, DualCLIP, Ignition, Dual
