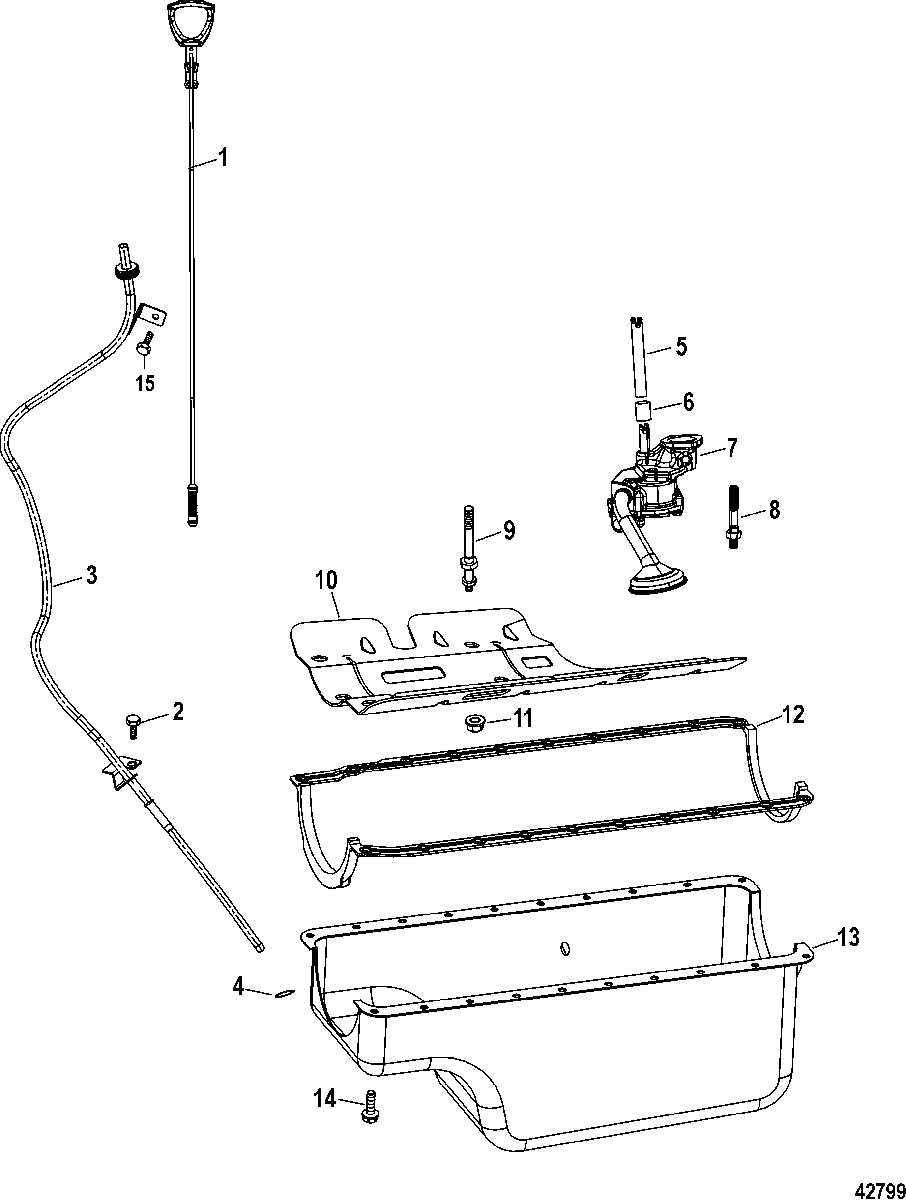

Oil Pan And Oil Pump для Mercruiser - 8.2L Mag (H.O. Model) 1A351597 & Up
-
№АртикулНазвание
-
18M0045293 DIPSTICK, Oil Level
SN# 2A041664 & BelowDIPSTICK, Oil Level
SN# 2A041664 & Below -
18M0070212 DIPSTICK, Oil level
SN# 2A041665 & UpDIPSTICK, Oil level
SN# 2A041665 & Up -
210-98257 SCREW, (.312-18 x .500), Dipstick Tube to Block, BottomSCREW, (.312-18 x .500), Dipstick Tube to Block, Bottom
-
38M2018769 TUBE ASSEMBLY, DipstickTUBE ASSEMBLY, Dipstick
-
425-62704 O-RING, (.362 x .103)O-RING, (.362 x .103)
-
58M0046892 SHAFT AND RETAINERSHAFT AND RETAINER
-
623-36183 RETAINERRETAINER
-
78M0051418 PUMP ASSEMBLY, OilPUMP ASSEMBLY, Oil
-
816-845599 STUD, (.375-16/.438-14 x 3.00)STUD, (.375-16/.438-14 x 3.00)
-
916-843375 STUD, (.375-16/.500-12 x 5.500)STUD, (.375-16/.500-12 x 5.500)
-
10843945T WINDAGE TRAY, Oil DeflectorWINDAGE TRAY, Oil Deflector
-
1111-845602 NUT, (.375-16)NUT, (.375-16)
-
1227-845628 GASKET, Oil PanGASKET, Oil Pan
-
13845668T PAN ASSEMBLY, OilPAN ASSEMBLY, Oil
-
1410-841389 SCREW, (.312-18 x .620)SCREW, (.312-18 x .620)
-
1510-8M0103804 SCREW, (M6 x 12 MM) Stainless Steel, Dipstick Tube to Coolant Reservoir BracketSCREW, (M6 x 12 MM) Stainless Steel, Dipstick Tube to Coolant Reservoir Bracket
