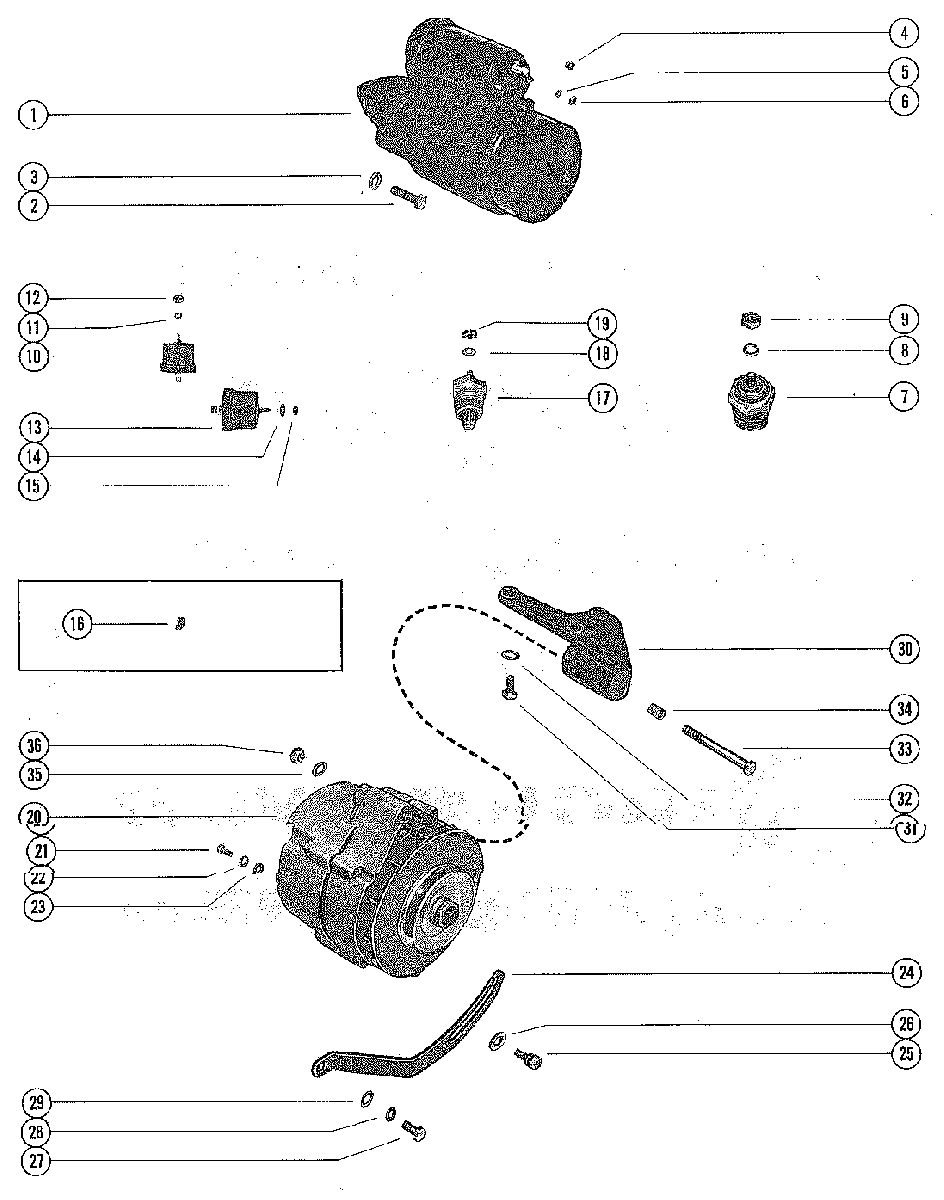

STARTER MOTOR AND ALTERNATOR для Mercruiser - 325 GM 427 V-8 1969-1972 2278747 THRU 3780449
-
№АртикулНазвание
-
150-808011A05 STARTER MOTOR ASSEMBLY (LEFT HAND CRANKSHAFT ROTATION)
SEE NOTESTARTER MOTOR ASSEMBLY (LEFT HAND CRANKSHAFT ROTATION)
SEE NOTE -
150-97499R3 STARTER MOTOR ASSEMBLY (RIGHT HAND CRANKSHAFT ROTATION)
SEE NOTESTARTER MOTOR ASSEMBLY (RIGHT HAND CRANKSHAFT ROTATION)
SEE NOTE -
210-47462 SCREW, STARTER MOTOR TO CYLINDER BLOCK (1 1/4")SCREW, STARTER MOTOR TO CYLINDER BLOCK (1 1/4")
-
313-32993 LOCKWASHER, STARTER MOTOR SCREWLOCKWASHER, STARTER MOTOR SCREW
-
411-32219 NUT, STARTER TERMINAL (3/8")NUT, STARTER TERMINAL (3/8")
-
513-26995 LOCKWASHER, STARTER TERMINAL (#8)LOCKWASHER, STARTER TERMINAL (#8)
-
611-26419 NUT, STARTER TERMINAL (#8)NUT, STARTER TERMINAL (#8)
-
797258A1 WATER TEMPERATURE SENDER ASSEMBLY (AUTOMATIC CHOKE)WATER TEMPERATURE SENDER ASSEMBLY (AUTOMATIC CHOKE)
-
7806490T WATER TEMPERATURE SENDER ASSEMBLY (ELECTRIC CHOKE)WATER TEMPERATURE SENDER ASSEMBLY (ELECTRIC CHOKE)
-
813-26996 LOCKWASHER, WATER TEMPERATURE SENDER TERMINAL (#10)LOCKWASHER, WATER TEMPERATURE SENDER TERMINAL (#10)
-
911-68219 NUT, WATER TEMPERATURE SENDER TERMINAL (#10)NUT, WATER TEMPERATURE SENDER TERMINAL (#10)
-
1052676 SWITCH, ELECTRIC CHOKE
ELECTRIC CHOKESWITCH, ELECTRIC CHOKE
ELECTRIC CHOKE -
1113-26996 LOCKWASHER, CHOKE SWITCH TERMINAL (#10)
ELECTRIC CHOKELOCKWASHER, CHOKE SWITCH TERMINAL (#10)
ELECTRIC CHOKE -
1211-68219 NUT, CHOKE SWITCH TERMINAL
ELECTRIC CHOKENUT, CHOKE SWITCH TERMINAL
ELECTRIC CHOKE -
138M0068784 OIL PRESSURE SENDER ASSEMBLYOIL PRESSURE SENDER ASSEMBLY
-
1413-26996 LOCKWASHER, OIL PRESSURE SENDER TERMINAL (#10)LOCKWASHER, OIL PRESSURE SENDER TERMINAL (#10)
-
1511-68219 NUT, OIL PRESSURE SENDER TERMINAL (#10)NUT, OIL PRESSURE SENDER TERMINAL (#10)
-
1622-48556 BUSHING, REDUCER-OIL PRESSURE SENDER
SERIAL 00000000-03469127BUSHING, REDUCER-OIL PRESSURE SENDER
SERIAL 00000000-03469127 -
1787-805605A1 SWITCH, OIL PRESSURE SERIAL # AND UP
SERIAL 03469128-09999999SWITCH, OIL PRESSURE SERIAL # AND UP
SERIAL 03469128-09999999 -
1812-20878 WASHER, OIL PRESSURE SWITCH TERMINAL
SERIAL 03469128-09999999WASHER, OIL PRESSURE SWITCH TERMINAL
SERIAL 03469128-09999999 -
1911-68219 NUT, OIL PRESSURE SWITCH TERMINAL
SERIAL 03469128-09999999NUT, OIL PRESSURE SWITCH TERMINAL
SERIAL 03469128-09999999 -
2047456A1 ALTERNATOR ASSEMBLY
SEE NOTE SERIAL 00000000-02761141ALTERNATOR ASSEMBLY
SEE NOTE SERIAL 00000000-02761141 -
2078403A2 ALTERNATOR ASSEMBLY
SEE NOTE SERIAL 02761992-03042957ALTERNATOR ASSEMBLY
SEE NOTE SERIAL 02761992-03042957 -
2078403A2 ALTERNATOR ASSEMBLY
SEE NOTE SERIAL 03042958-09999999ALTERNATOR ASSEMBLY
SEE NOTE SERIAL 03042958-09999999 -
2110-20055 SCREW. GROUND CABLE TO ALTERNATOR
SERIAL 02761992-09999999SCREW. GROUND CABLE TO ALTERNATOR
SERIAL 02761992-09999999 -
2213-26996 LOCKWASHER, GROUND CABLE SCREW
SERIAL 02761992-09999999LOCKWASHER, GROUND CABLE SCREW
SERIAL 02761992-09999999 -
2312-30164 WASHER, GROUND CABLE SCREW
SERIAL 02761992-09999999WASHER, GROUND CABLE SCREW
SERIAL 02761992-09999999 -
2485013T BRACE, ALTERNATOR ADJUSTINGBRACE, ALTERNATOR ADJUSTING
-
2510-29198 SCREW, ALTERNATOR BRACE TO ALTERNATOR (7/8")SCREW, ALTERNATOR BRACE TO ALTERNATOR (7/8")
-
2612-26168 WASHER, ALTERNATOR BRACE SCREWWASHER, ALTERNATOR BRACE SCREW
-
2710-31381 SCREW, ALTERNATOR BRACE TO CYLINDER BLOCK (1")SCREW, ALTERNATOR BRACE TO CYLINDER BLOCK (1")
-
2813-32993 LOCKWASHER, ALTERNATOR BRACE SCREWLOCKWASHER, ALTERNATOR BRACE SCREW
-
2912-74758 WASHER, ALTERNATOR BRACE SCREWWASHER, ALTERNATOR BRACE SCREW
-
3047487T BRACKET, ALTERNATOR MOUNTINGBRACKET, ALTERNATOR MOUNTING
-
3110-34353 SCREW, ALTERNATOR BRACKET TO EXHAUST MANIFOLD (1")SCREW, ALTERNATOR BRACKET TO EXHAUST MANIFOLD (1")
-
3110-358701 SCREW, ALTERNATOR BRACKET TO EXHAUST MANIFOLD (2")SCREW, ALTERNATOR BRACKET TO EXHAUST MANIFOLD (2")
-
3213-35048 LOCKWASHER, ALTERNATOR BRACKET SCREWLOCKWASHER, ALTERNATOR BRACKET SCREW
-
3310-48308 SCREW, ALTERNATOR TO ALTERNATOR BRACKET (#3 3/4")SCREW, ALTERNATOR TO ALTERNATOR BRACKET (#3 3/4")
-
3423-33186 BUSHING, ALTERNATOR BRACKET SCREWBUSHING, ALTERNATOR BRACKET SCREW
-
3512-20553 WASHER, ALTERNATOR BRACKET SCREWWASHER, ALTERNATOR BRACKET SCREW
-
3611-23161 NUT, ALTERNATOR BRACKET SCREWNUT, ALTERNATOR BRACKET SCREW
