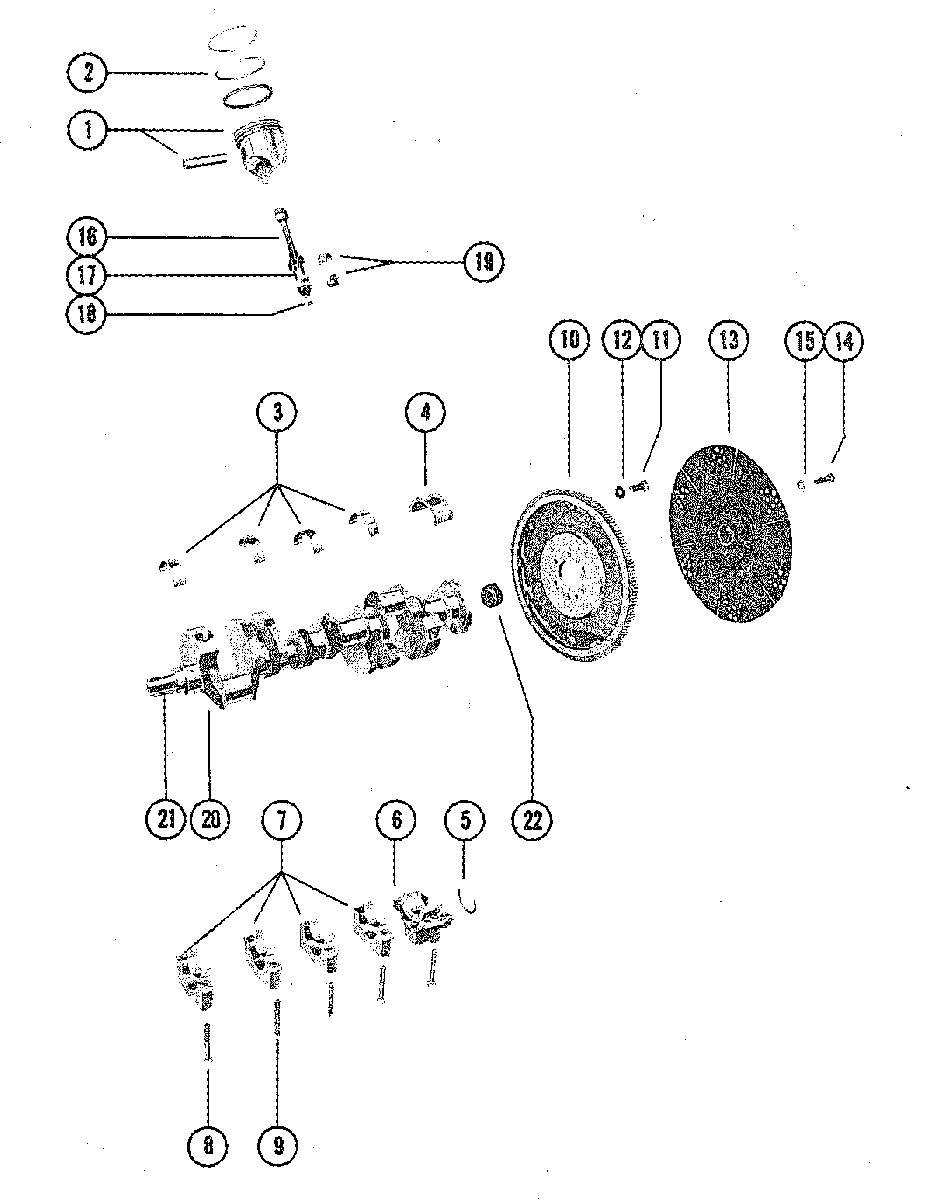

PISTONS AND CRANKSHAFT для Mercruiser - 330 GM 454 V-8 1977-1981 4623115 THRU 6083144
-
№АртикулНазвание
-
1737-879194035 PISTON AND PISTON PIN ASSEMBLY (STANDARD)
NOT INCLUDED WITH CYLINDER BLOCK ASSYPISTON AND PISTON PIN ASSEMBLY (STANDARD)
NOT INCLUDED WITH CYLINDER BLOCK ASSY -
1737-6615T1 PISTON AND PISTON PIN ASSEMBLY (.030 O.S.)
NOT INCLUDED WITH CYLINDER BLOCK ASSYPISTON AND PISTON PIN ASSEMBLY (.030 O.S.)
NOT INCLUDED WITH CYLINDER BLOCK ASSY -
239-67127 RING, PISTON (STANDARD)
NOT INCLUDED WITH CYLINDER BLOCK ASSYRING, PISTON (STANDARD)
NOT INCLUDED WITH CYLINDER BLOCK ASSY -
239-67128 RING, PISTON (.030 O.S.)
NOT INCLUDED WITH CYLINDER BLOCK ASSYRING, PISTON (.030 O.S.)
NOT INCLUDED WITH CYLINDER BLOCK ASSY -
323-818473001 BEARING UNIT, CRANKSHAFT MAIN (STANDARD)
NOT INCLUDED WITH CYLINDER BLOCK ASSYBEARING UNIT, CRANKSHAFT MAIN (STANDARD)
NOT INCLUDED WITH CYLINDER BLOCK ASSY -
323-818474 BEARING UNIT, CRANKSHAFT MAIN (.001 U.S.)
NOT INCLUDED WITH CYLINDER BLOCK ASSYBEARING UNIT, CRANKSHAFT MAIN (.001 U.S.)
NOT INCLUDED WITH CYLINDER BLOCK ASSY -
323-818475 BEARING UNIT, CRANKSHAFT MAIN (.002 U.S.)
NOT INCLUDED WITH CYLINDER BLOCK ASSYBEARING UNIT, CRANKSHAFT MAIN (.002 U.S.)
NOT INCLUDED WITH CYLINDER BLOCK ASSY -
323-85724 BEARING UNIT, CRANKSHAFT MAIN (.010 U.S.)
NOT INCLUDED WITH CYLINDER BLOCK ASSYBEARING UNIT, CRANKSHAFT MAIN (.010 U.S.)
NOT INCLUDED WITH CYLINDER BLOCK ASSY -
323-818477 BEARING UNIT, CRANKSHAFT MAIN (.020 U.S.)
NOT INCLUDED WITH CYLINDER BLOCK ASSYBEARING UNIT, CRANKSHAFT MAIN (.020 U.S.)
NOT INCLUDED WITH CYLINDER BLOCK ASSY -
423-818473001 BEARING UNIT, CRANKSHAFT MAIN - REAR (STANDARD)
NOT INCLUDED WITH CYLINDER BLOCK ASSYBEARING UNIT, CRANKSHAFT MAIN - REAR (STANDARD)
NOT INCLUDED WITH CYLINDER BLOCK ASSY -
423-818474 BEARING UNIT, CRANKSHAFT MAIN - REAR (.001 U.S.)
NOT INCLUDED WITH CYLINDER BLOCK ASSYBEARING UNIT, CRANKSHAFT MAIN - REAR (.001 U.S.)
NOT INCLUDED WITH CYLINDER BLOCK ASSY -
423-818475 BEARING UNIT, CRANKSHAFT MAIN - REAR (.002 U.S.)
NOT INCLUDED WITH CYLINDER BLOCK ASSYBEARING UNIT, CRANKSHAFT MAIN - REAR (.002 U.S.)
NOT INCLUDED WITH CYLINDER BLOCK ASSY -
423-818476001 BEARING UNIT, CRANKSHAFT MAIN - REAR (.010 U.S.)
NOT INCLUDED WITH CYLINDER BLOCK ASSYBEARING UNIT, CRANKSHAFT MAIN - REAR (.010 U.S.)
NOT INCLUDED WITH CYLINDER BLOCK ASSY -
423-818477 BEARING UNIT, CRANKSHAFT MAIN - REAR (.020 U.S.)
NOT INCLUDED WITH CYLINDER BLOCK ASSYBEARING UNIT, CRANKSHAFT MAIN - REAR (.020 U.S.)
NOT INCLUDED WITH CYLINDER BLOCK ASSY -
526-8M0062773 OIL SEAL, REAR CRANKSHAFT BRG. CAP (L.H. ROTATION)
NOT INCLUDED WITH CYLINDER BLOCK ASSYOIL SEAL, REAR CRANKSHAFT BRG. CAP (L.H. ROTATION)
NOT INCLUDED WITH CYLINDER BLOCK ASSY -
526-75980 OIL SEAL, REAR CRANKSHAFT BRG. CAP (R.H. ROTATION)
NOT INCLUDED WITH CYLINDER BLOCK ASSYOIL SEAL, REAR CRANKSHAFT BRG. CAP (R.H. ROTATION)
NOT INCLUDED WITH CYLINDER BLOCK ASSY -
675583 CAP, REAR - CRANKSHAFT BEARINGCAP, REAR - CRANKSHAFT BEARING
-
775582 CAP, INTERMEDIATE AND FRONT - CRANKSHAFT BEARINGCAP, INTERMEDIATE AND FRONT - CRANKSHAFT BEARING
-
810-49147 BOLT, CRANKSHAFT BEARING CAP TO CYLINDER BLOCK (3 3/8")BOLT, CRANKSHAFT BEARING CAP TO CYLINDER BLOCK (3 3/8")
-
916-49144 STUD, CRANKSHAFT BEARING CAP TO CYLINDER BLOCKSTUD, CRANKSHAFT BEARING CAP TO CYLINDER BLOCK
-
10200-8M0084209 FLYWHEEL ASSEMBLY (STERN DRIVE)FLYWHEEL ASSEMBLY (STERN DRIVE)
-
10230-5534 FLYWHEEL ASSEMBLY (INBOARD)FLYWHEEL ASSEMBLY (INBOARD)
-
1110-845757 SCREW, FLYWHEEL TO CRANKSHAFTSCREW, FLYWHEEL TO CRANKSHAFT
-
1213-39131 LOCKWAHSER< FLYWHEEL SCREWLOCKWAHSER< FLYWHEEL SCREW
-
1377480A1 DRIVE PLATE, FLYWHEEL (STERN DRIVE)DRIVE PLATE, FLYWHEEL (STERN DRIVE)
-
13860125T DRIVE PLATE, FLYWHEEL (INBOARD)DRIVE PLATE, FLYWHEEL (INBOARD)
-
1410-35091 SCREW, DRIVE PLATE TO FLYWHEELSCREW, DRIVE PLATE TO FLYWHEEL
-
1513-35048 LOCKWASHER, DRIVE PLATE SCREWLOCKWASHER, DRIVE PLATE SCREW
-
16614-8M0030663 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
1710-52192 BOLT, CONNECTING ROD CAPBOLT, CONNECTING ROD CAP
-
1811-37493 NUT, CONNECTING ROD CAP BOLTNUT, CONNECTING ROD CAP BOLT
-
1923-85726001 BEARING SET (PAIR), CONNECTING ROD (STANDARD)BEARING SET (PAIR), CONNECTING ROD (STANDARD)
-
1923-85727 BEARING UNIT (PAIR), CONNECTING ROD (.001 U.S.)BEARING UNIT (PAIR), CONNECTING ROD (.001 U.S.)
-
1923-85728 BEARING UNIT (PAIR), CONNECTING ROD (.002 U.S.)BEARING UNIT (PAIR), CONNECTING ROD (.002 U.S.)
-
1923-85691 BEARING UNIT (PAIR), CONNECTING ROD (.010 U.S.)BEARING UNIT (PAIR), CONNECTING ROD (.010 U.S.)
-
1923-85729 BEARING UNIT (PAIR), CONNECTING ROD (.020 U.S.)BEARING UNIT (PAIR), CONNECTING ROD (.020 U.S.)
-
20429-6612 CRANKSHAFT (L.H. ROTATION)CRANKSHAFT (L.H. ROTATION)
-
20429-6612 CRANKSHAFT (R.H. ROTATION)CRANKSHAFT (R.H. ROTATION)
-
2128-34466 KEY, CRANKSHAFT GEAR, CAMSHAFT GEAR AND DAMPERKEY, CRANKSHAFT GEAR, CAMSHAFT GEAR AND DAMPER
-
2223-71647 BUSHING, CRANKSHAFT PILOT (STERN DRIVE)BUSHING, CRANKSHAFT PILOT (STERN DRIVE)
