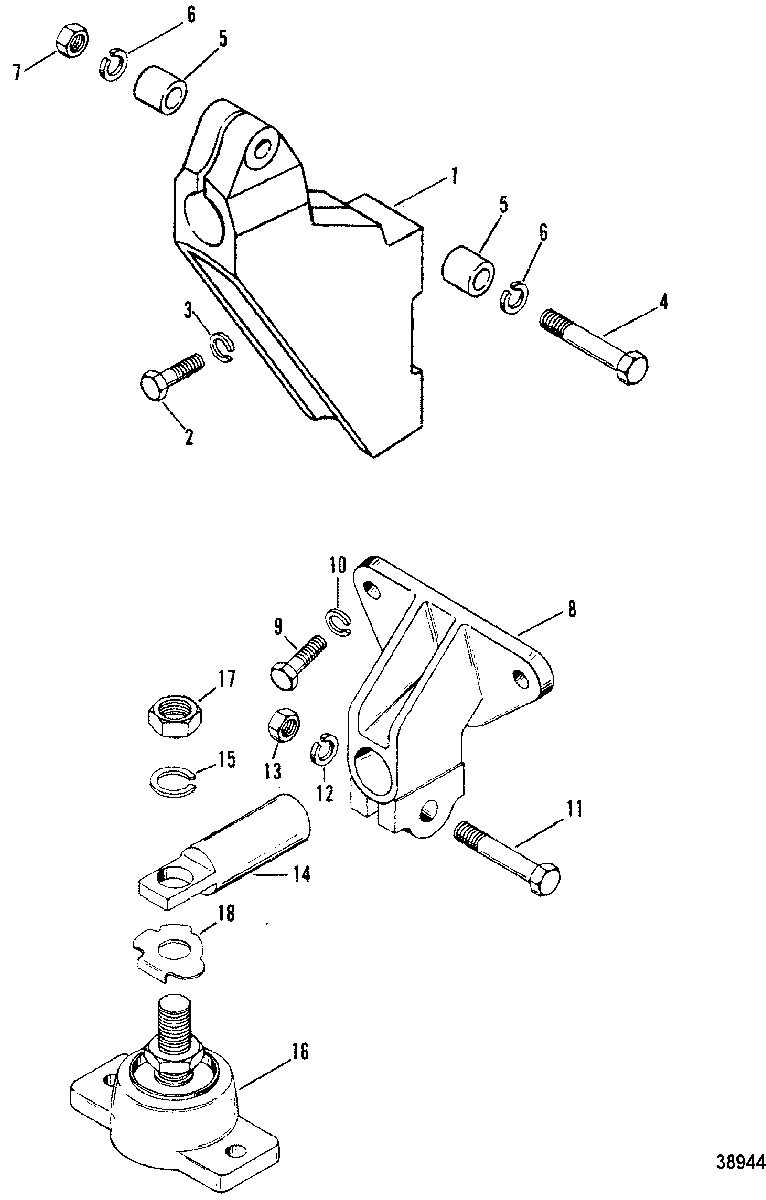

TRANSMISSION AND ENGINE MOUNTING(IN-LINE) для Mercruiser - 340 MIE W/B/W GM 454 V-8 1981-1987 5889914 THRU 0B788365
-
№АртикулНазвание
-
166167A2 BRACKET, TRANSMISSION (REAR)BRACKET, TRANSMISSION (REAR)
-
152158A20 BRACKET, TRANSMISSION (REAR) (HORIZONTAL MTG.)BRACKET, TRANSMISSION (REAR) (HORIZONTAL MTG.)
-
210-37269 SCREW, (.437-14 x 2.00), BRACKET TO TRANSMISSIONSCREW, (.437-14 x 2.00), BRACKET TO TRANSMISSION
-
210-47462 SCREW, (.437-14 x 1.250), BRACKET TO TRANSMISSION (HORIZONTAL MTG)SCREW, (.437-14 x 1.250), BRACKET TO TRANSMISSION (HORIZONTAL MTG)
-
313-32993 LOCKWASHER, (.437), BRACKET SCREWLOCKWASHER, (.437), BRACKET SCREW
-
410-57357 SCREW, (.437-13 x 2.250), CLAMPING - MOUNTING BRACKETSCREW, (.437-13 x 2.250), CLAMPING - MOUNTING BRACKET
-
410-47724 SCREW, (.437-14 x 3.00), CLAMPING - MTG. BRACKET (HORIZONTAL MTG)SCREW, (.437-14 x 3.00), CLAMPING - MTG. BRACKET (HORIZONTAL MTG)
-
513-32993 LOCKWASHER, (.437), CLAMPING SCREWLOCKWASHER, (.437), CLAMPING SCREW
-
654-47528 CLAMP, ADJUSTING TRUNNION SCREWCLAMP, ADJUSTING TRUNNION SCREW
-
711-82670814 NUT, (.437-14), CLAMPING SCREWNUT, (.437-14), CLAMPING SCREW
-
866418T BRACKET, Front, MOUNTING - ENGINE (FRONT)BRACKET, Front, MOUNTING - ENGINE (FRONT)
-
910-68101 SCREW, (.375-16 x 1.375), MOUNTING BRACKETSCREW, (.375-16 x 1.375), MOUNTING BRACKET
-
1013-35048 LOCKWASHER, (.375), MOUNTING BRACKET SCREWLOCKWASHER, (.375), MOUNTING BRACKET SCREW
-
1110-37269 SCREW, (.437-14 x 2.00), CLAMPING - MOUNTING BRACKETSCREW, (.437-14 x 2.00), CLAMPING - MOUNTING BRACKET
-
1213-32993 LOCKWASHER, (.437), CLAMPING SCREWLOCKWASHER, (.437), CLAMPING SCREW
-
1311-82670814 NUT, (.437-14), CLAMPING SCREWNUT, (.437-14), CLAMPING SCREW
-
1466166A4 TRUNNION, ADJUSTING - MOUNTING BRACKETTRUNNION, ADJUSTING - MOUNTING BRACKET
-
1513-68102 LOCKWASHER, (.750), MOUNTING BRACKETLOCKWASHER, (.750), MOUNTING BRACKET
-
1666284A2 BASE ASSEMBLY, ENGINE MOUNTBASE ASSEMBLY, ENGINE MOUNT
-
1711-20739 NUT, (.750-16), JAM - ENGINE MOUNT BASENUT, (.750-16), JAM - ENGINE MOUNT BASE
-
1814-66658 TAB WASHER, BASE NUTTAB WASHER, BASE NUT
