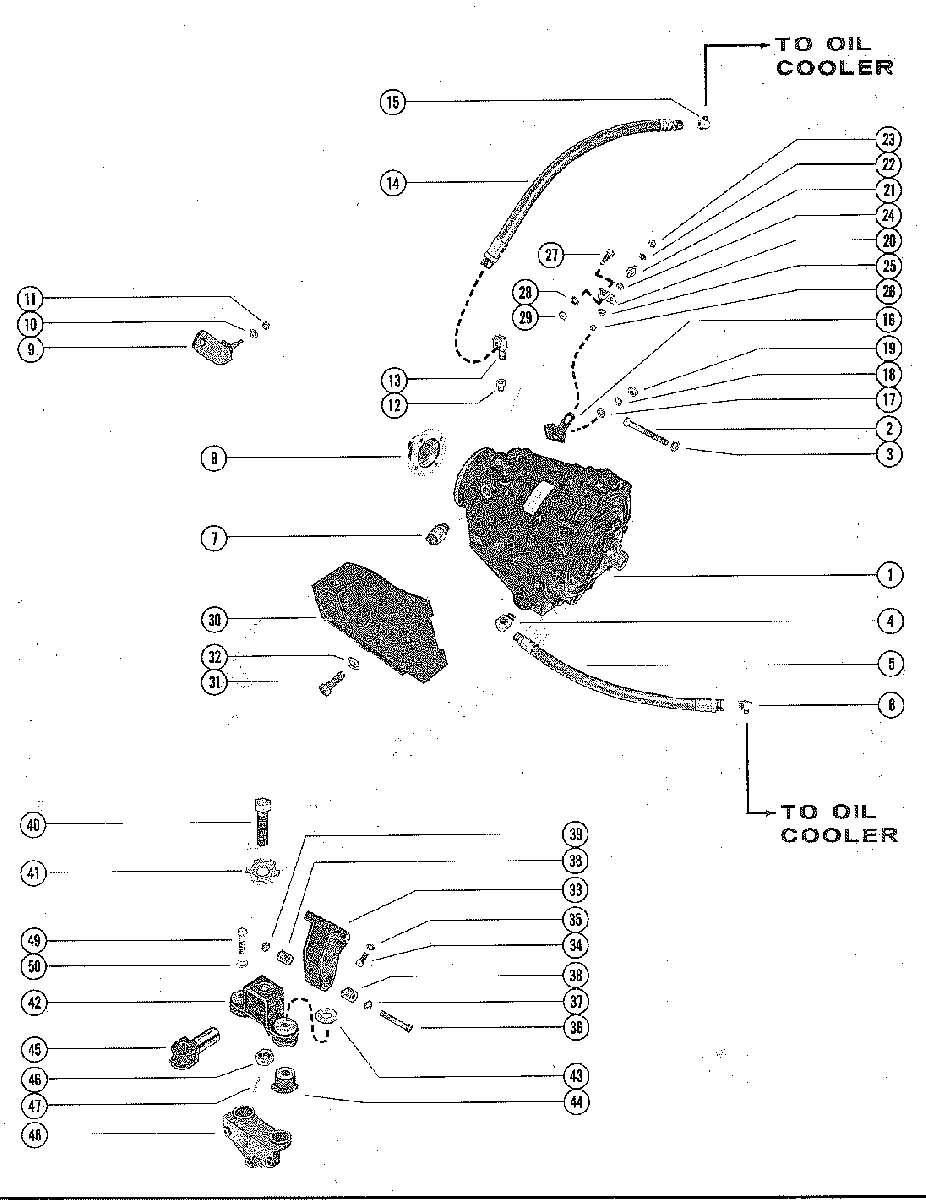

TRANSMISSION ASSEMBLY для Mercruiser - 390 MIE GM 482 V-8 1969-1970 2781129 THRU 2825059
-
№АртикулНазвание
-
147810A19 TRANSMISSION (DIRECT DRIVE)TRANSMISSION (DIRECT DRIVE)
-
147811A7 TRANSMISSION (1.523:1 REDUCTION)TRANSMISSION (1.523:1 REDUCTION)
-
147812A7 TRANSMISSION (1.909:1 REDUCTION)TRANSMISSION (1.909:1 REDUCTION)
-
147813A7 TRANSMISSION (2.57:1 REDUCTION)TRANSMISSION (2.57:1 REDUCTION)
-
147814A7 TRANSMISSION (2.909:1 REDUCTION)TRANSMISSION (2.909:1 REDUCTION)
-
210-38197 SCREW, TRANSMISSION TO ENGINE (3 1/2")SCREW, TRANSMISSION TO ENGINE (3 1/2")
-
313-32993 LOCKWASHER, TRANSMISSION SCREWLOCKWASHER, TRANSMISSION SCREW
-
422-47629 ELBOW, HOSE TO TRANSMISSION (90 DEGREES)ELBOW, HOSE TO TRANSMISSION (90 DEGREES)
-
532-475163 HOSE, OIL COOLER TO TRANSMISSION (7 7/8")HOSE, OIL COOLER TO TRANSMISSION (7 7/8")
-
622-47630 ELBOW, HOSE TO OIL COOLER (90 DEGREES)ELBOW, HOSE TO OIL COOLER (90 DEGREES)
-
747613 SWITCH, NEUTRAL SAFETYSWITCH, NEUTRAL SAFETY
-
879476A1 FLANGE (1")FLANGE (1")
-
879476A2 FLANGE (1 1/8")FLANGE (1 1/8")
-
879476A3 FLANGE (1 1/4")FLANGE (1 1/4")
-
879476A4 FLANGE (1 3/8")FLANGE (1 3/8")
-
879476A5 FLANGE (1 1/2")FLANGE (1 1/2")
-
948649 BRACKET, SHIFT CABLEBRACKET, SHIFT CABLE
-
1012-56681 WASHER, SHIFT CABLE TO BRACKET STUDWASHER, SHIFT CABLE TO BRACKET STUD
-
1111-46438 NUT, SHIFT CABLE TO BRACKET STUD (10-32)NUT, SHIFT CABLE TO BRACKET STUD (10-32)
-
1223-36159 BUSHING, REDUCING - TRANSMISSION ELBOWBUSHING, REDUCING - TRANSMISSION ELBOW
-
1322-47631 ELBOW, HOSE TO TRANSMISSION (90 DEGREES)ELBOW, HOSE TO TRANSMISSION (90 DEGREES)
-
1432-4751612 HOSE, TRANSMISSION TO OIL COOLER (16 3/4")HOSE, TRANSMISSION TO OIL COOLER (16 3/4")
-
1522-47630 ELBOW, HOSE TO OIL COOLER (90 DEGREES)ELBOW, HOSE TO OIL COOLER (90 DEGREES)
-
1648515 LEVER, SHIFT - TRANSMISSIONLEVER, SHIFT - TRANSMISSION
-
1712-20722 WASHER, SHIFT LEVER TO TRANSMISSIONWASHER, SHIFT LEVER TO TRANSMISSION
-
1813-26993 LOCKWASHER, SHIFT LEVER TO TRANSMISSIONLOCKWASHER, SHIFT LEVER TO TRANSMISSION
-
1911-22053 NUT, SHIFT LEVER TO TRANSMISSIONNUT, SHIFT LEVER TO TRANSMISSION
-
2048652 ADAPTOR, SHIFT CABLE TO SHIFT LEVERADAPTOR, SHIFT CABLE TO SHIFT LEVER
-
2116-48680 STUD, SHIFT CABLE ADAPTOR TO SHIFT LEVER (1 1/4")STUD, SHIFT CABLE ADAPTOR TO SHIFT LEVER (1 1/4")
-
2212-20533 WASHER, SHIFT CABLE ADAPTOR STUDWASHER, SHIFT CABLE ADAPTOR STUD
-
2311-20184 NUT, SHIFT CABLE ADAPTOR STUD (1/4-28)NUT, SHIFT CABLE ADAPTOR STUD (1/4-28)
-
2413-29402 WAVE WASHER, SHIFT CABLE ADAPTOR STUDWAVE WASHER, SHIFT CABLE ADAPTOR STUD
-
2512-56681 WASHER, SHIFT CABLE ADAPTOR STUDWASHER, SHIFT CABLE ADAPTOR STUD
-
2611-46438 NUT, SHIFT CABLE ADAPTOR STUD (10-32)NUT, SHIFT CABLE ADAPTOR STUD (10-32)
-
2710-20639 SCREW, SHIFT CABLE TO ADAPTOR (1 1/8")SCREW, SHIFT CABLE TO ADAPTOR (1 1/8")
-
2812-22753 WASHER, SHIFT CABLE SCREWWASHER, SHIFT CABLE SCREW
-
2911-29250 NUT, SHIFT CABLE SCREW (5/16-24)NUT, SHIFT CABLE SCREW (5/16-24)
-
3047501 BRACKET, MOUNTING (REAR)BRACKET, MOUNTING (REAR)
-
3110-37269 SCREW, MOUNTING BRACKET TO TRANSMISSION (2") 4SCREW, MOUNTING BRACKET TO TRANSMISSION (2") 4
-
3213-32993 LOCKWASHER, MOUNTING BRACKET SCREWLOCKWASHER, MOUNTING BRACKET SCREW
-
3347499 BRACKET, MOUNTING (FRONT)BRACKET, MOUNTING (FRONT)
-
3410-48424 SCREW, MOUNTING BRACKET TO CYLINDER BLOCK (1 5/8")SCREW, MOUNTING BRACKET TO CYLINDER BLOCK (1 5/8")
-
3513-35048 LOCKWASHER, MOUNTING BTACKET SCREWLOCKWASHER, MOUNTING BTACKET SCREW
-
3610-47654 SCREW, CLAMP - ADJUSTING TRUNNION (2 3/4")SCREW, CLAMP - ADJUSTING TRUNNION (2 3/4")
-
3713-32993 LOCKWASHER, CLAMP ADJUSTING TRUNNION SCREWLOCKWASHER, CLAMP ADJUSTING TRUNNION SCREW
-
3854-47528 CLAMP, ADJUSTING TRUNNION SCREWCLAMP, ADJUSTING TRUNNION SCREW
-
3911-82670814 NUT, CLAMP ADJUSTING TRUNNION SCREWNUT, CLAMP ADJUSTING TRUNNION SCREW
-
4010-52156 SCREW, ADJUSTING TRUNNION (4 1/2")SCREW, ADJUSTING TRUNNION (4 1/2")
-
4114-48467 TAB WASHER, ADJUSTING TRUNNION SCREWTAB WASHER, ADJUSTING TRUNNION SCREW
-
4252139A4 BRACKET ASSEMBLY, MOUNTING - FRONT AND REARBRACKET ASSEMBLY, MOUNTING - FRONT AND REAR
-
4312-48611 WASHER, MOUNTING BRACKETWASHER, MOUNTING BRACKET
-
4447656 MOUNT, MOUNTING BRACKETMOUNT, MOUNTING BRACKET
-
4547518 TRUNNION, ADJUSTING - MOUNTING BRACKETTRUNNION, ADJUSTING - MOUNTING BRACKET
-
4611-47525 NUT, JAM - ADJUSTING TRUNNION SCREWNUT, JAM - ADJUSTING TRUNNION SCREW
-
4717-22116 PIN, ROLL - JAM NUTPIN, ROLL - JAM NUT
-
4847986 BRACKET, MOUNTING - ENGINEBRACKET, MOUNTING - ENGINE
-
4910-48254 SCREW, MOUNTING BRACKET ATTACHING (2 1/8")SCREW, MOUNTING BRACKET ATTACHING (2 1/8")
-
5013-31848 LOCKWASHER, MOUNTING BRACKET SCREWLOCKWASHER, MOUNTING BRACKET SCREW
