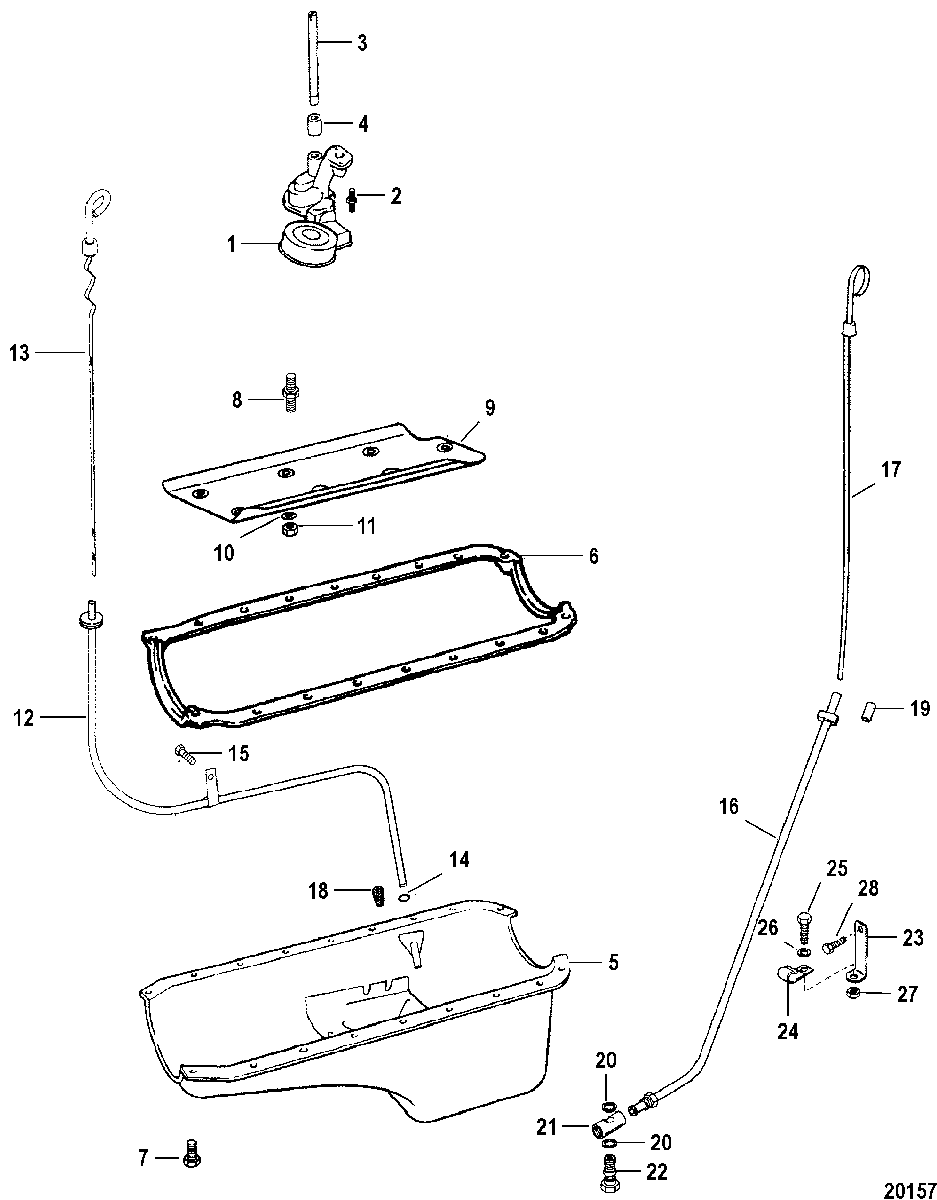

Oil Pan and Oil Pump для Mercruiser - 454 MAG. MPI HORIZON (GEN. VI) GM 454 V-8 0L086050 THRU 0L674000
-
№АртикулНазвание
-
1827643 PUMP ASSEMBLY, OilPUMP ASSEMBLY, Oil
-
216-845599 STUDSTUD
-
38M0046892 SHAFT AND RETAINERSHAFT AND RETAINER
-
423-36183 RETAINERRETAINER
-
5845668T PAN ASSEMBLY, OilPAN ASSEMBLY, Oil
-
627-845628 GASKETGASKET
-
710-841389 SCREW, (.312-18 x .625) (5/16-18 X 5/8 IN.)SCREW, (.312-18 x .625) (5/16-18 X 5/8 IN.)
-
816-843375 STUD, (.375-16/.500-12 x 5.500)STUD, (.375-16/.500-12 x 5.500)
-
9843945T BAFFLE, Oil DeflectorBAFFLE, Oil Deflector
-
1012-49112 WASHERWASHER
-
1111-845602 NUT, (.375-16)NUT, (.375-16)
-
12818631A6 TUBE ASSEMBLY, Dipstick
BORG WARNER 5000 V-DRIVETUBE ASSEMBLY, Dipstick
BORG WARNER 5000 V-DRIVE -
13861942T9 DIPSTICK, Oil Level
BORG WARNER 5000 V-DRIVEDIPSTICK, Oil Level
BORG WARNER 5000 V-DRIVE -
1425-62704 O-RING, (.362 x .103)
BORG WARNER 5000 V-DRIVEO-RING, (.362 x .103)
BORG WARNER 5000 V-DRIVE -
1510-8M0040582 SCREW
BORG WARNER 5000 V-DRIVESCREW
BORG WARNER 5000 V-DRIVE -
16805162T1 TUBE, Dipstick
(PORT)TUBE, Dipstick
(PORT) -
16805162T TUBE, Dipstick
(STARBOARD)TUBE, Dipstick
(STARBOARD) -
17861942T5 DIPSTICK
(HURTH 630 & B/W 5000 & B/W 72 W/ REMOTE V-DRIVE)DIPSTICK
(HURTH 630 & B/W 5000 & B/W 72 W/ REMOTE V-DRIVE) -
17861942T4 DIPSTICK
(BORG WARNER 72)DIPSTICK
(BORG WARNER 72) -
1819-818841 PLUG, Oil Pan Dipstick HolePLUG, Oil Pan Dipstick Hole
-
19805339 CAP, Vinyl (YELLOW)CAP, Vinyl (YELLOW)
-
2027-8M0077608 GASKET, DrainGASKET, Drain
-
21821504 FITTING, BanjoFITTING, Banjo
-
22807497 BOLT, Banjo (M12)BOLT, Banjo (M12)
-
2348134 BRACKETBRACKET
-
2454-92338 CLIPCLIP
-
2510-54630 SCREW, (.312-24 x .625)SCREW, (.312-24 x .625)
-
2613-39107 LOCKWASHER, (.312-24)LOCKWASHER, (.312-24)
-
2711-22053 NUT, (.312-24)NUT, (.312-24)
-
2810-98260 SCREW, (.375-16 x .620)SCREW, (.375-16 x .620)
-
-27-811572A94 GASKET SET, Overhaul
(454)GASKET SET, Overhaul
(454) -
-27-805396A92 GASKET SET, Overhaul
(8.2L)GASKET SET, Overhaul
(8.2L)
