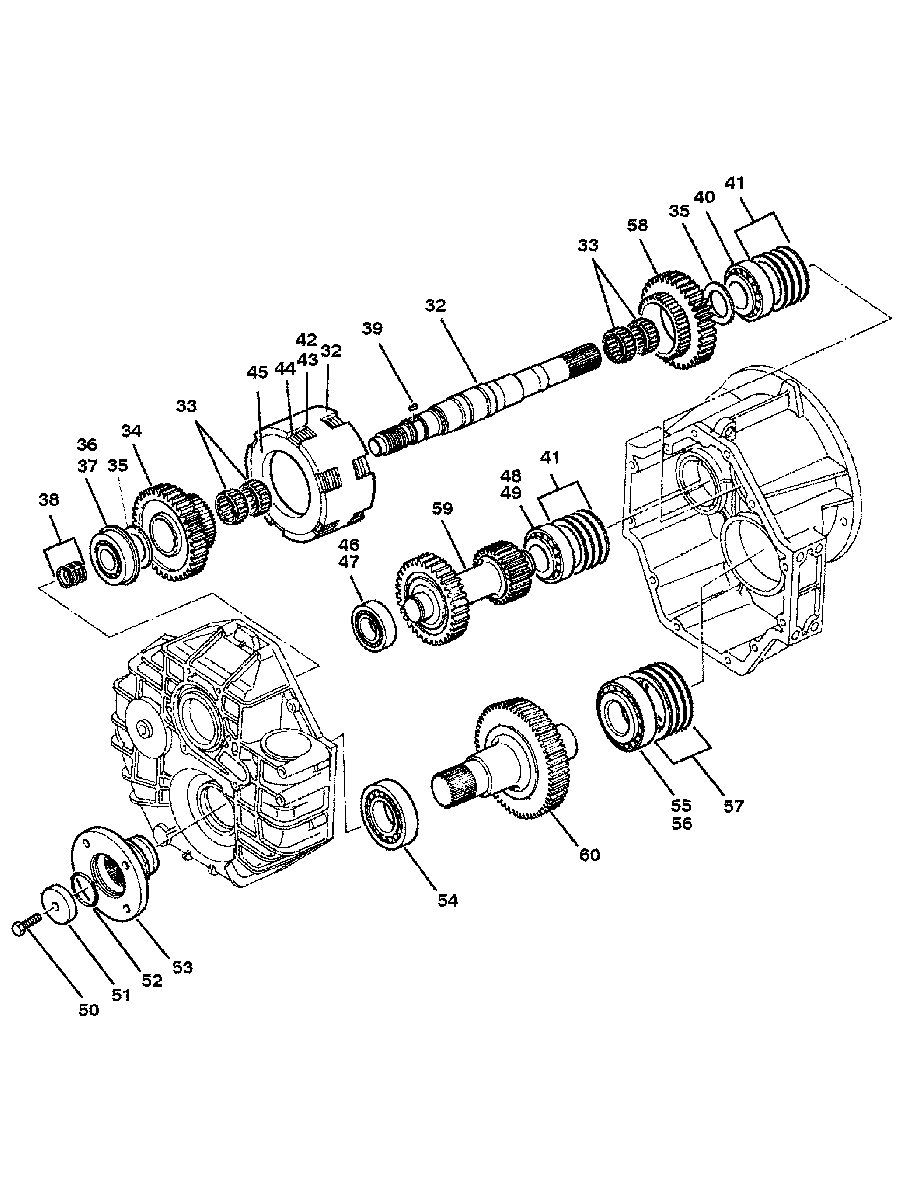

TRANSMISSION (IN-LINE) (HURTH 630) для Mercruiser - 7.4L MIE (LH) GEN. VI GM 454 V-8 1996-1997 0F820142 THRU 0K999999
-
№АртикулНазвание
-
-863744T2 TRANSMISSION ASSEMBLY
(1.5:1 RATIO)TRANSMISSION ASSEMBLY
(1.5:1 RATIO) -
-863744T3 TRANSMISSION ASSEMBLY
(2.0:1 RATIO)TRANSMISSION ASSEMBLY
(2.0:1 RATIO) -
-863744T4 TRANSMISSION ASSEMBLY
(2.5:1 RATIO)TRANSMISSION ASSEMBLY
(2.5:1 RATIO) -
32813306 SHAFT-INPUTSHAFT-INPUT
-
3331-813307 BEARING-ROLLERBEARING-ROLLER
-
3443-813308 GEARGEAR
-
3512-813309 WASHERWASHER
-
3631-852066 BEARING-TAPERED ROLLER (INNER)BEARING-TAPERED ROLLER (INNER)
-
3731-852066 BEARING-TAPERED ROLLER (OUTER)BEARING-TAPERED ROLLER (OUTER)
-
3853-813312 RING-SNAPRING-SNAP
-
3928-813313 KEYKEY
-
4030-813314 BEARING-BALLBEARING-BALL
-
4115-813315 SHIM (.10 MM)SHIM (.10 MM)
-
4115-813316 SHIM (.15 MM)SHIM (.15 MM)
-
4115-813317 SHIM (.20 MM)SHIM (.20 MM)
-
4115-813318 SHIM (.50 MM)SHIM (.50 MM)
-
42813319 CLUTCH DISC-INNERCLUTCH DISC-INNER
-
43813320 CLUTCH DISC-OUTERCLUTCH DISC-OUTER
-
4453-813321 SNAP RINGSNAP RING
-
45813322 PRESSURE DISCPRESSURE DISC
-
4631-813323 BEARING-TAPERED ROLLER (INNER)BEARING-TAPERED ROLLER (INNER)
-
4731-813324 BEARING-TAPERED ROLLER (OUTER)BEARING-TAPERED ROLLER (OUTER)
-
4831-813325 BEARING-TAPERED ROLLER (INNER)BEARING-TAPERED ROLLER (INNER)
-
4931-813326 BEARING-TAPERED ROLLER (OUTER)BEARING-TAPERED ROLLER (OUTER)
-
5010-813327 SCREWSCREW
-
5123-813328 SPACERSPACER
-
5225-813329 O-RINGO-RING
-
53813330 FLANGE-OUTPUTFLANGE-OUTPUT
-
5431-813331 BEARING-TAPERED ROLLERBEARING-TAPERED ROLLER
-
5531-813332 BEARING-TAPERED ROLLER (INNER)BEARING-TAPERED ROLLER (INNER)
-
5631-813333 BEARING-TAPERED ROLLER (OUTER)BEARING-TAPERED ROLLER (OUTER)
-
5715-813334 SHIM (.10 MM)SHIM (.10 MM)
-
5715-813335 SHIM (.15 MM)SHIM (.15 MM)
-
5715-813336 SHIM (.30 MM)SHIM (.30 MM)
-
5715-813337 SHIM (.50 MM)SHIM (.50 MM)
-
5843-813338 GEAR
1.5:1 RATIOGEAR
1.5:1 RATIO -
59813339 SHAFT-INTERMEDIATE
1.5:1 RATIOSHAFT-INTERMEDIATE
1.5:1 RATIO -
60813340 SHAFT-OUTPUT
1.5:1 RATIOSHAFT-OUTPUT
1.5:1 RATIO -
5843-813341 GEAR
2.0:1 RATIOGEAR
2.0:1 RATIO -
59813342 SHAFT-INTERMEDIATE
2.0:1 RATIOSHAFT-INTERMEDIATE
2.0:1 RATIO -
60813343 SHAFT-OUTPUT
2.0:1 RATIOSHAFT-OUTPUT
2.0:1 RATIO -
5843-813344 GEAR
2.5:1 RATIOGEAR
2.5:1 RATIO -
59813345 SHAFT-INTERMEDIATE
2.5:1 RATIOSHAFT-INTERMEDIATE
2.5:1 RATIO -
60813346 SHAFT-OUTPUT
2.5:1 RATIOSHAFT-OUTPUT
2.5:1 RATIO
