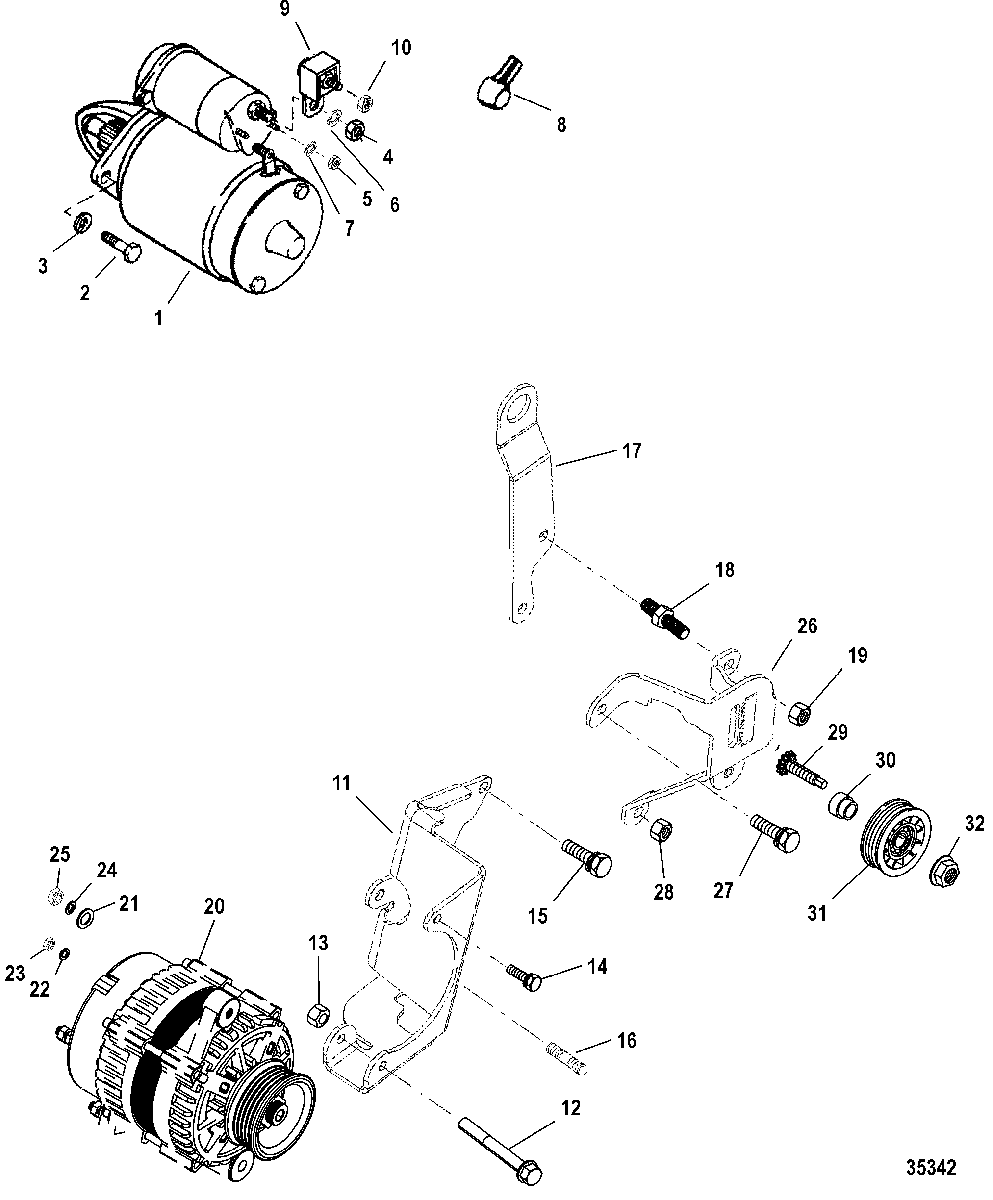

ALTERNATOR AND STARTER(MANDO) для Mercruiser - 7.4L MPI MIE (L29) GEN. VI GM 454 V-8 1998-2000 0L002006 THRU 0L674613
-
№АртикулНазвание
-
150-808011A05 STARTER MOTOR ASSEMBLY
(SEE "STARTER MOTOR" FOR BREAKDOWN)STARTER MOTOR ASSEMBLY
(SEE "STARTER MOTOR" FOR BREAKDOWN) -
210-47462 SCREW, (.437-14 x 1.250)SCREW, (.437-14 x 1.250)
-
313-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
411-15874 NUT, (M10)NUT, (M10)
-
511-400211 NUT, (M5) Stainless SteelNUT, (M5) Stainless Steel
-
613-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
713-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
885-79695T BOOT, Insulator - BlackBOOT, Insulator - Black
-
988-79023A91 FUSE ASSEMBLY, 90 AmpereFUSE ASSEMBLY, 90 Ampere
-
1011-21825 NUT, (.250-28)NUT, (.250-28)
-
11861047 BRACKETBRACKET
-
1210-56743 SCREW, (.375-24 x 3.125)SCREW, (.375-24 x 3.125)
-
1311-23161 NUT, (.375-24)NUT, (.375-24)
-
1410-29198 SCREW AND LOCKWASHER, (.312-18 x .875)SCREW AND LOCKWASHER, (.312-18 x .875)
-
1510-17965 SCREW, (.437-14 x .70)SCREW, (.437-14 x .70)
-
1616-806591 STUD, (7/16-14)STUD, (7/16-14)
-
17807081T BRACKETBRACKET
-
1816-861174 STUD (7/16-14 X 2 1/2 IN.)STUD (7/16-14 X 2 1/2 IN.)
-
1911-82670814 NUT, (.437-14)NUT, (.437-14)
-
20807653T ALTERNATOR ASSEMBLY
(SEE "ALTERNATOR (MANDO)" FOR BREAKDOWN)ALTERNATOR ASSEMBLY
(SEE "ALTERNATOR (MANDO)" FOR BREAKDOWN) -
2112-96457 WASHER, Phenolic (.27 x .81 x .062)WASHER, Phenolic (.27 x .81 x .062)
-
2213-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
2311-79989 NUT, (#10-24) Stainless SteelNUT, (#10-24) Stainless Steel
-
2413-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
2511-94330 NUT, (.250-20) BrassNUT, (.250-20) Brass
-
26861045 BRACKET, IdlerBRACKET, Idler
-
2710-92913 SCREW, (.437-14 x .750)SCREW, (.437-14 x .750)
-
2811-82670814 NUT, (.437-14)NUT, (.437-14)
-
2943-8M0113182 PINION STUD, (.437-20) Stainless SteelPINION STUD, (.437-20) Stainless Steel
-
30865193 BUSHINGBUSHING
-
31807757T PULLEY ASSEMBLY, Idler - BlackPULLEY ASSEMBLY, Idler - Black
-
3211-859135 NUT, (.437-20) Brass/Nickel PlatedNUT, (.437-20) Brass/Nickel Plated
