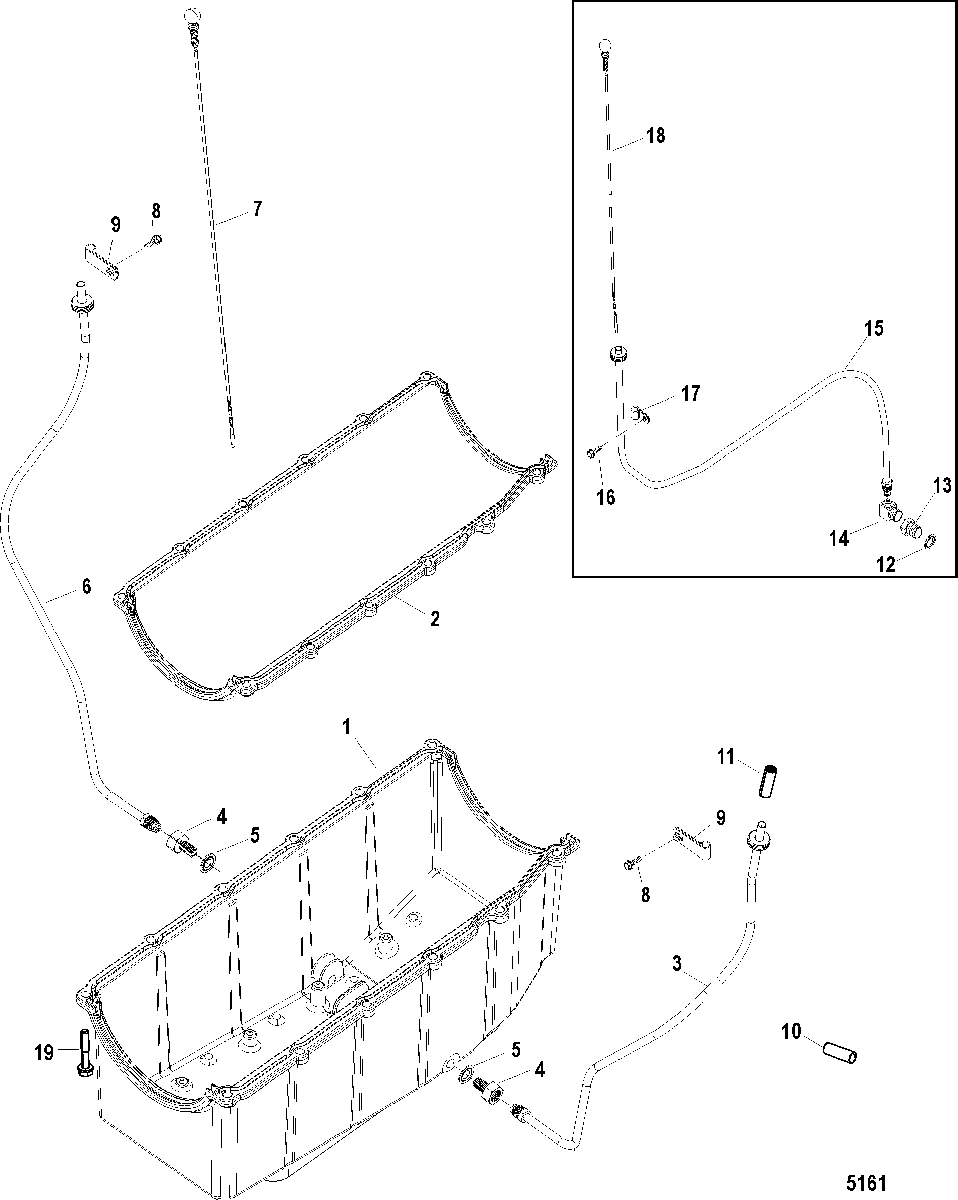

OIL PAN AND DRAIN SYSTEM для Mercruiser - 8.1L INBOARD (Base) 0M026000 THRU 0M319124
-
№АртикулНазвание
-
1881653001 PAN, OilPAN, Oil
-
NS883922 BAFFLE, Oil PanBAFFLE, Oil Pan
-
NS10-883923 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
227-881612 GASKET, Oil PanGASKET, Oil Pan
-
3863406 TUBE, Engine Oil Gauge
( In-Line Starboard)TUBE, Engine Oil Gauge
( In-Line Starboard) -
422-807804 FITTING, Oil Gauge Tube
(In-Line)FITTING, Oil Gauge Tube
(In-Line) -
527-8M0077608 GASKET, Drain
(In-Line)GASKET, Drain
(In-Line) -
6863407 TUBE, Engine Oil Gauge
(In-Line Port)TUBE, Engine Oil Gauge
(In-Line Port) -
786194211 GAUGE, Oil Level
(In-Line)GAUGE, Oil Level
(In-Line) -
810-4000328 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
954-65653 CLIPCLIP
-
10861982 CAP, VinylCAP, Vinyl
-
1154-805524 CLIPCLIP
-
1227-8M0077608 GASKET, Drain
(V-Drive)GASKET, Drain
(V-Drive) -
1322-863389A01 FITTING, Oil Gauge Tube
(V-Drive)FITTING, Oil Gauge Tube
(V-Drive) -
1422-19697 ELBOW
(V-Drive)ELBOW
(V-Drive) -
15863408 TUBE, Engine Oil Gauge
(V-Drive)TUBE, Engine Oil Gauge
(V-Drive) -
1610-4000328 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
1754-65653 CLIP
(V-Drive)CLIP
(V-Drive) -
1886194210 GAUGE, Oil Level
(V-Drive)GAUGE, Oil Level
(V-Drive) -
1910-898101392 BOLT, (M8 x 30)BOLT, (M8 x 30)
