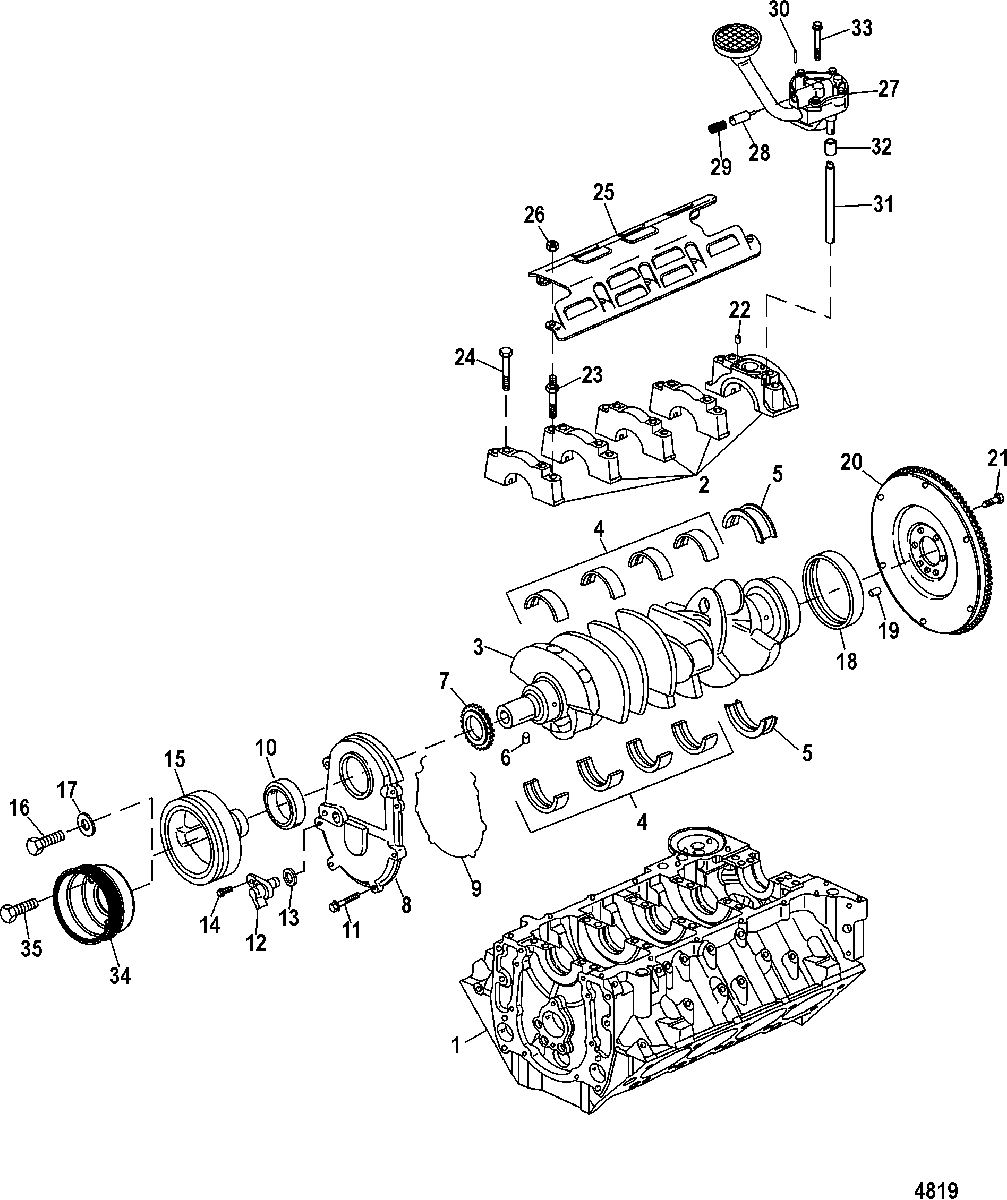

Block, Crankshaft, Oil Pump and Front Cover для Mercruiser - 8.1L INBOARD (Base) 0M319125 THRU 0W089999
-
№АртикулНазвание
-
NS8M0086000 LONGBLOCK ASSEMBLY, Base
(Block codes 4WW and 4WY)LONGBLOCK ASSEMBLY, Base
(Block codes 4WW and 4WY) -
NS8M0086000 LONGBLOCK ASSEMBLY, Base
(Block codes 4ZW and 4ZY)LONGBLOCK ASSEMBLY, Base
(Block codes 4ZW and 4ZY) -
NS8M0086001 LONGBLOCK ASSEMBLY, H.O.
(Block codes 4WA and 4WF)LONGBLOCK ASSEMBLY, H.O.
(Block codes 4WA and 4WF) -
NS8M0086001 LONGBLOCK ASSEMBLY, H.O.
(Block codes 4ZA and 4ZF)LONGBLOCK ASSEMBLY, H.O.
(Block codes 4ZA and 4ZF) -
1NSS NOT SOLD SEPARATE, BLOCK-Engine
(Order Longblock Assembly)NOT SOLD SEPARATE, BLOCK-Engine
(Order Longblock Assembly) -
2NSS NOT SOLD SEPARATE, CAP-Crankshaft BearingNOT SOLD SEPARATE, CAP-Crankshaft Bearing
-
3400-8M0084521 CRANKSHAFT
(Base)CRANKSHAFT
(Base) -
3400-8M0084521 CRANKSHAFT
(H.O.)CRANKSHAFT
(H.O.) -
423-884702 BEARING KIT, CrankshaftBEARING KIT, Crankshaft
-
523-881607001 BEARING KIT, Crankshaft Main ThrustBEARING KIT, Crankshaft Main Thrust
-
617-881605 PIN, Balancer LocatingPIN, Balancer Locating
-
743-881655 SPROCKET, CrankshaftSPROCKET, Crankshaft
-
8892616001 COVER, FrontCOVER, Front
-
927-881604 GASKET, Front CoverGASKET, Front Cover
-
1026-881613001 SEAL, Crankshaft Front OilSEAL, Crankshaft Front Oil
-
1110-8M0069806 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
12892615002 SENSOR, Camshaft PositionSENSOR, Camshaft Position
-
13NSS NOT SOLD SEPARATE, SEAL-Camshaft Position SensorNOT SOLD SEPARATE, SEAL-Camshaft Position Sensor
-
1410-883923 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
15891769 BALANCER, CrankshaftBALANCER, Crankshaft
-
1610-881587 SCREW, (M16 x 1.5)SCREW, (M16 x 1.5)
-
1712-881614 WASHERWASHER
-
1826-881608001 SEAL, Crankshaft Rear OilSEAL, Crankshaft Rear Oil
-
1917-881609 PIN, Flywheel LocatingPIN, Flywheel Locating
-
20200-8M0083318 FLYWHEEL
(Base and H.O.)FLYWHEEL
(Base and H.O.) -
2110-881578 BOLTBOLT
-
2217-843378 PIN, Dowel (1/4 In. Diameter), Oil Pump LocatingPIN, Dowel (1/4 In. Diameter), Oil Pump Locating
-
2316-881615 STUD, Crankshaft Bearing CapSTUD, Crankshaft Bearing Cap
-
2410-881580 SCREW, (M12 x 89)SCREW, (M12 x 89)
-
25883236001 DEFLECTOR, OilDEFLECTOR, Oil
-
2611-881579001 NUTNUT
-
278M0069808 PUMP, With Screen, OilPUMP, With Screen, Oil
-
2817-881611 PIN, Oil PumpPIN, Oil Pump
-
2924-881610 SPRING, Oil PumpSPRING, Oil Pump
-
308M0069808 VALVE, Pressure ReliefVALVE, Pressure Relief
-
318M0046892 SHAFT AND RETAINER, Oil Pump DriveSHAFT AND RETAINER, Oil Pump Drive
-
3223-36183 RETAINER, Oil Pump DriveRETAINER, Oil Pump Drive
-
3310-881585 SCREW, (M10 x 60)SCREW, (M10 x 60)
-
34862349 PULLEY, CrankshaftPULLEY, Crankshaft
-
3510-4009025 SCREW, (M10 x 25) Stainless SteelSCREW, (M10 x 25) Stainless Steel
