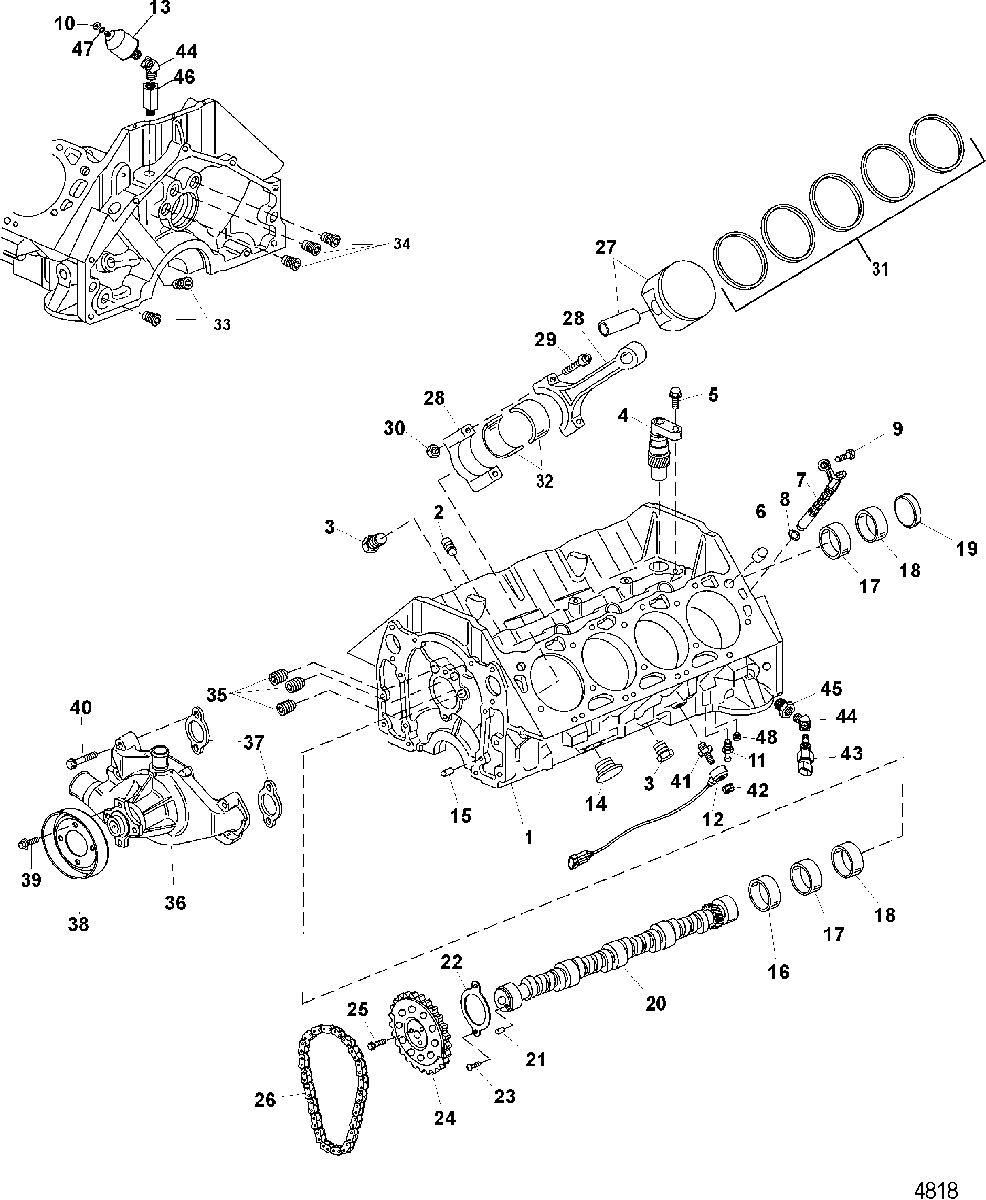

Block, Camshaft and Pistons для Mercruiser - 8.1L INBOARD (Base) 0W390000 THRU 0W689999

№

Артикул

Название
NS

8M0086000 LONGBLOCK ASSEMBLY (Base)
(Block Code 5XY)

LONGBLOCK ASSEMBLY (Base)
(Block Code 5XY)

1 150 000 ₽
NS

8M0086001 LONGBLOCK ASSEMBLY (H.O.)
(Block Code 5XA)

LONGBLOCK ASSEMBLY (H.O.)
(Block Code 5XA)

1 150 000 ₽
1

NSS NOT SOLD SEPARATE, Block, Engine
(Order Longblock Assembly)

NOT SOLD SEPARATE, Block, Engine
(Order Longblock Assembly)

0 ₽
2

22-48341 PLUG, (.125-27 x .375), Oil Galley

PLUG, (.125-27 x .375), Oil Galley

840 ₽
3

22-8M0114498 PLUG, Coolant Drain

PLUG, Coolant Drain

1 780 ₽
4

8M0114791 DRIVE, Oil Pump, Oil Pump

DRIVE, Oil Pump, Oil Pump

8 700 ₽
5

10-881590 SCREW, (M8 x 20), Oil Pump

SCREW, (M8 x 20), Oil Pump

330 ₽
6

17-52190 PIN, Dowel, Cylinder Head Locating

PIN, Dowel, Cylinder Head Locating

510 ₽
7

892617 SENSOR, Crankshaft Position

SENSOR, Crankshaft Position

23 460 ₽
8

NSS NOT SOLD SEPARATE, Seal, Crankshaft Position Sensor

NOT SOLD SEPARATE, Seal, Crankshaft Position Sensor

0 ₽
9

10-881595 SCREW, (M6 x 21), Crankshaft Position Sensor

SCREW, (M6 x 21), Crankshaft Position Sensor

1 330 ₽
10

11-68219 NUT, (#10-32) Stainless Steel

NUT, (#10-32) Stainless Steel

50 ₽
11

22-805563 CONNECTOR, (.500 Inch NPTF To .500 Inch Inverted Flare), Oil Hose

CONNECTOR, (.500 Inch NPTF To .500 Inch Inverted Flare), Oil Hose

1 340 ₽
12

8M6003194 SENSOR ASSEMBLY, Knock

SENSOR ASSEMBLY, Knock

6 710 ₽
13

8M0068784 SENDER ASSEMBLY, Oil Pressure

SENDER ASSEMBLY, Oil Pressure

6 360 ₽
14

22-32561 PLUG, (.250-18 x .41), Oil Galley

PLUG, (.250-18 x .41), Oil Galley

430 ₽
14

22-36373 PLUG, (.375-18 x .42), Pipe, Oil Galley

PLUG, (.375-18 x .42), Pipe, Oil Galley

440 ₽
14

22-48341 PLUG, (.125-27 x .375), Oil Galley

PLUG, (.125-27 x .375), Oil Galley

840 ₽
14

22-881568 PLUG, Engine Coolant

PLUG, Engine Coolant

2 160 ₽
14

22-881569 PLUG, (.250-18 x .54), Engine Coolant

PLUG, (.250-18 x .54), Engine Coolant

150 ₽
15

17-843378 PIN, Dowel (1/4 In. Diameter)

PIN, Dowel (1/4 In. Diameter)

1 110 ₽
16

23-85684 BEARING, Camshaft
(Position 1)

BEARING, Camshaft
(Position 1)

14 350 ₽
17

23-85684 BEARING, Camshaft
(Position 2 and 5)

BEARING, Camshaft
(Position 2 and 5)

14 350 ₽
18

23-85684 BEARING, Camshaft
(Position 3 and 4)

BEARING, Camshaft
(Position 3 and 4)

14 350 ₽
19

19-94140 EXPANSION PLUG, Camshaft Bearing Hole

EXPANSION PLUG, Camshaft Bearing Hole

330 ₽
20

431-8M0133004 CAMSHAFT
(Base)

CAMSHAFT
(Base)

0 ₽
20

431-8M0133005 CAMSHAFT
(High Output)

CAMSHAFT
(High Output)

0 ₽
21

17-843378 PIN, Dowel (1/4 In. Diameter)
Camshaft Sprocket Location

PIN, Dowel (1/4 In. Diameter)
Camshaft Sprocket Location

1 110 ₽
22

845941 RETAINER, Camshaft

RETAINER, Camshaft

3 030 ₽
23

10-881588 SCREW

SCREW

1 030 ₽
24

892640001 SPROCKET, Camshaft

SPROCKET, Camshaft

26 130 ₽
25

10-881570 SCREW, (M8 x 25 MM)

SCREW, (M8 x 25 MM)

400 ₽
26

881626 CHAIN, Camshaft Timing

CHAIN, Camshaft Timing

23 490 ₽
27

735-881592002 PISTON ASSEMBLY, Standard/Floating Design, Starboard

PISTON ASSEMBLY, Standard/Floating Design, Starboard

81 740 ₽
27

735-881592002 PISTON ASSEMBLY, Standard/Floating Design, Starboard

PISTON ASSEMBLY, Standard/Floating Design, Starboard

81 740 ₽
27

735-883515002 PISTON ASSEMBLY, Standard/Floating Design, Port

PISTON ASSEMBLY, Standard/Floating Design, Port

81 740 ₽
27

735-883515002 PISTON ASSEMBLY, Standard/Floating Design, Port

PISTON ASSEMBLY, Standard/Floating Design, Port

81 740 ₽
27

735-881596002 PISTON ASSEMBLY, .030/Floating Design (Starboard)

PISTON ASSEMBLY, .030/Floating Design (Starboard)

26 470 ₽
27

735-881596002 PISTON ASSEMBLY, .030/Floating Design, Without Connecting Rod(Starboard)

PISTON ASSEMBLY, .030/Floating Design, Without Connecting Rod(Starboard)

26 470 ₽
27

735-881597002 PISTON ASSEMBLY, .030/Floating Design (Port)

PISTON ASSEMBLY, .030/Floating Design (Port)

27 500 ₽
27

735-881597002 PISTON ASSEMBLY, .030/Floating Design, Without Connecting Rod(Port)

PISTON ASSEMBLY, .030/Floating Design, Without Connecting Rod(Port)

27 500 ₽
28

NSS NOT SOLD SEPARATE, CONNECTING ROD

NOT SOLD SEPARATE, CONNECTING ROD

0 ₽
29

10-883917 SCREW, Connecting Rod

SCREW, Connecting Rod

2 800 ₽
30

11-883918 NUT, Connecting Rod

NUT, Connecting Rod

2 720 ₽
31

39-881601 RING KIT, Piston
(Standard)

RING KIT, Piston
(Standard)

19 130 ₽
31

39-881602 RING KIT, Piston
(.030 Oversize)

RING KIT, Piston
(.030 Oversize)

23 200 ₽
32

23-8832391 BEARING, Connecting Rod

BEARING, Connecting Rod

9 000 ₽
33

22-881567001 PLUG, Oil Galley

PLUG, Oil Galley

1 280 ₽
34

22-48341 PLUG, (.125-27 x .375), Oil Galley

PLUG, (.125-27 x .375), Oil Galley

840 ₽
35

22-48341 PLUG, (.125-27 x .375), Oil Galley

PLUG, (.125-27 x .375), Oil Galley

840 ₽
35

22-36373 PLUG, (.375-18 x .42), Pipe, Oil Galley

PLUG, (.375-18 x .42), Pipe, Oil Galley

440 ₽
35

22-32561 PLUG, (.250-18 x .41), Oil Galley

PLUG, (.250-18 x .41), Oil Galley

430 ₽
36

46-8M0113736 PUMP, Circulating

PUMP, Circulating

39 320 ₽
37

27-881603001 GASKET, Circulating Pump

GASKET, Circulating Pump

3 540 ₽
38

862583 PULLEY, Circulating Pump

PULLEY, Circulating Pump

5 290 ₽
39

10-4010716 SCREW, (M8 x 16)

SCREW, (M8 x 16)

280 ₽
40

10-881576 SCREW, (M10 x 65)

SCREW, (M10 x 65)

380 ₽
40

10-884036 SCREW, (M10 x 95)

SCREW, (M10 x 95)

1 070 ₽
41

16-862915 STUD, (.250-18/M10 Special), Knock Sensor

STUD, (.250-18/M10 Special), Knock Sensor

2 710 ₽
42

11-826292 NUT, (M10) Brass/Nickel Plated, Knock Sensor

NUT, (M10) Brass/Nickel Plated, Knock Sensor

230 ₽
43

881879T11 SENSOR, (0 - 100 PSI), Oil Pressure

SENSOR, (0 - 100 PSI), Oil Pressure

19 490 ₽
44

22-8M0123050 FITTING, Elbow (45 Degree)

FITTING, Elbow (45 Degree)

0 ₽
45

22-64013 FITTING, (.375 Male To .125 Female), Reducer

FITTING, (.375 Male To .125 Female), Reducer

590 ₽
46

22-805059 FITTING, Reducer Bushing

FITTING, Reducer Bushing

870 ₽
47

13-26996 LOCKWASHER, (#10) Stainless Steel

LOCKWASHER, (#10) Stainless Steel

60 ₽
48

22-38407 PLUG, (.500-14), Pipe

PLUG, (.500-14), Pipe

600 ₽
