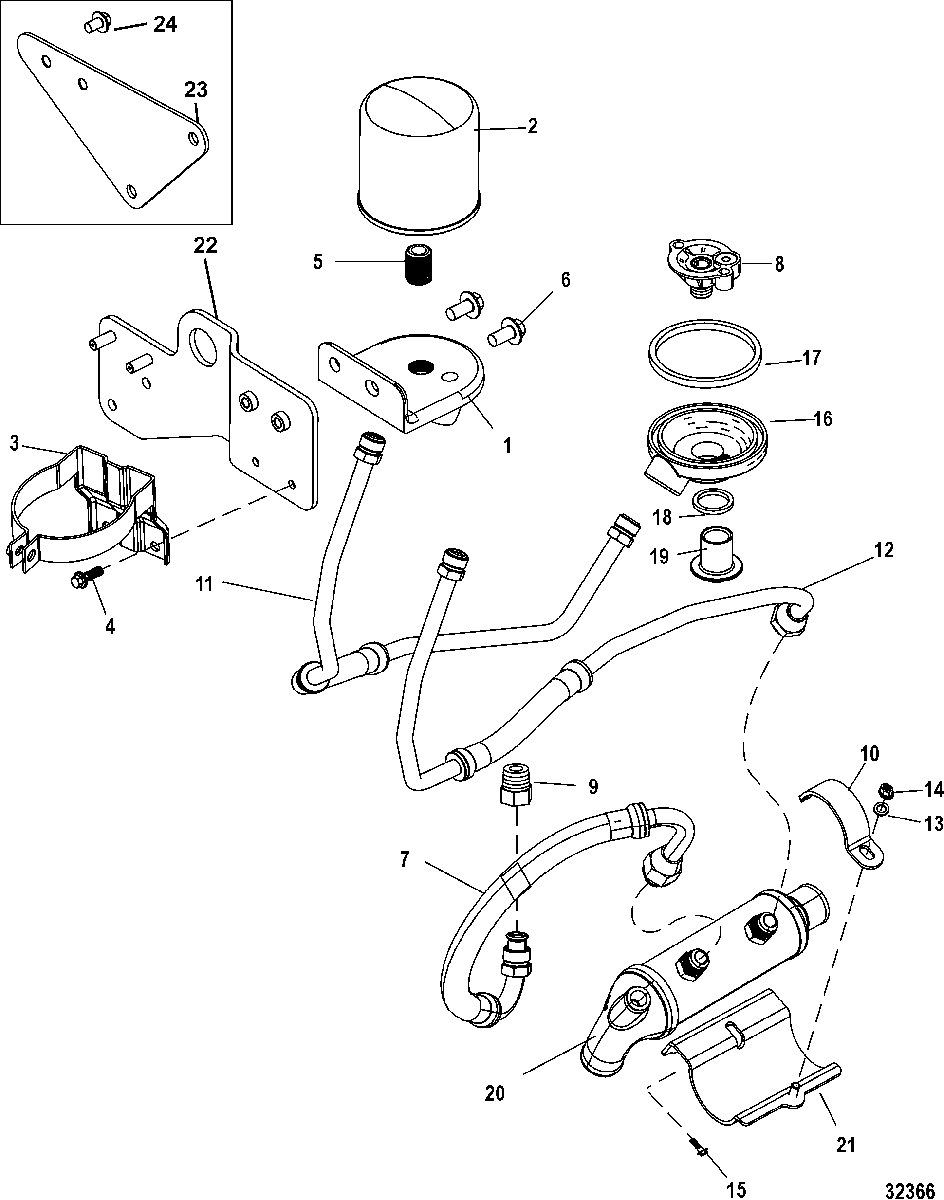

Remote Oil System для Mercruiser - 8.1L INBOARD (H.O.) EC 0W697154 THRU 1A380251
-
№АртикулНазвание
-
1863732T1 BRACKET, Remote Oil Filter
Includes FittingBRACKET, Remote Oil Filter
Includes Fitting -
235-866340Q03 FILTER, Oil - Quicksilver BrandFILTER, Oil - Quicksilver Brand
-
3865262A02 BRACKET ASSEMBLYBRACKET ASSEMBLY
-
410-4010720 SCREW, (M8 x 20)SCREW, (M8 x 20)
-
522-863485 FITTING
Part of Remote Oil Filter BracketFITTING
Part of Remote Oil Filter Bracket -
610-4010820 SCREW, (M10 x 20) Hex Flange - Stainless SteelSCREW, (M10 x 20) Hex Flange - Stainless Steel
-
732-863915 HOSE, Oil, Cooler to AdaptorHOSE, Oil, Cooler to Adaptor
-
8883920 VALVE ASSEMBLY, FilterVALVE ASSEMBLY, Filter
-
922-805563 CONNECTOR, (.500 Inch NPTF To .500 Inch Inverted Flare)CONNECTOR, (.500 Inch NPTF To .500 Inch Inverted Flare)
-
1012-22937 WASHERWASHER
-
1012-35044 WASHER, (.281 x .625 x .065) Stainless Steel
(SEACORE)WASHER, (.281 x .625 x .065) Stainless Steel
(SEACORE) -
1132-866401 HOSE, Oil, Filter Base to BlockHOSE, Oil, Filter Base to Block
-
1132-8M2000827 HOSE, Oil, Filter Base to Block
V-DriveHOSE, Oil, Filter Base to Block
V-Drive -
1232-866402 HOSE, Oil, Filter to CoolerHOSE, Oil, Filter to Cooler
-
1232-8M2000828 HOSE, Oil, Filter to Cooler
V-DriveHOSE, Oil, Filter to Cooler
V-Drive -
1311-401366 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
14807445T CLAMP, Cooler BracketCLAMP, Cooler Bracket
-
1510-4000327 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
16862870T ADAPTOR, Oil FilterADAPTOR, Oil Filter
-
1726-862957 SEAL, Oil Filter AdaptorSEAL, Oil Filter Adaptor
-
1826-42077 SEAL, Swivel TubeSEAL, Swivel Tube
-
1922-862958 FITTING, Oil Filter AdaptorFITTING, Oil Filter Adaptor
-
20879288T46 COOLER, OilCOOLER, Oil
-
21863905T BRACKET, Oil CoolerBRACKET, Oil Cooler
-
22866626T BRACKET, Front Lifting EyeBRACKET, Front Lifting Eye
-
23866703 BRACKET, Remote Oil
V-DriveBRACKET, Remote Oil
V-Drive -
2410-4010816 SCREW, (M10 x 16) Hex Flange - Stainless Steel, To HeadSCREW, (M10 x 16) Hex Flange - Stainless Steel, To Head
