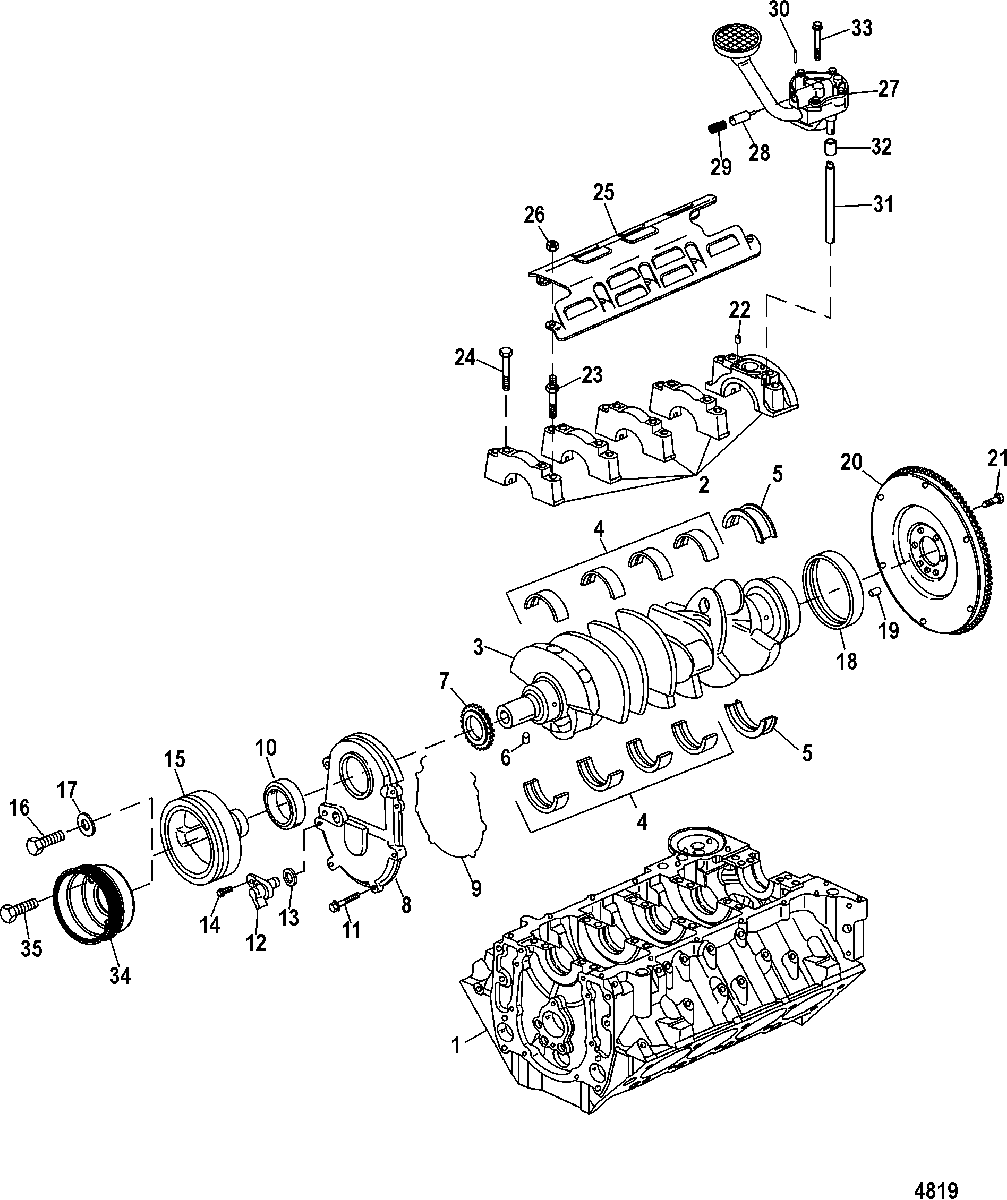

CYLINDER BLOCK, Crankshaft, Oil Pump and Front Cover для Mercruiser - 8.1L INBOARD (H.O.) 0M026000 THRU 0M319190
-
№АртикулНазвание
-
-8M0086000 LONG BLOCK (Base)
SN# 0M315052 & BelowLONG BLOCK (Base)
SN# 0M315052 & Below -
-8M0086000 LONG BLOCK (Base)
SN# 0M315053 THRU 0M316947LONG BLOCK (Base)
SN# 0M315053 THRU 0M316947 -
-8M0086000 LONG BLOCK (Base)
(GM Code 4XY) SN# 0M316948 & UpLONG BLOCK (Base)
(GM Code 4XY) SN# 0M316948 & Up -
-8M0086001 LONG BLOCK (H.O.)
SN# 0M315241 & BelowLONG BLOCK (H.O.)
SN# 0M315241 & Below -
-8M0086001 LONG BLOCK (H.O.)
SN# 0M315242 THRU 0M316893LONG BLOCK (H.O.)
SN# 0M315242 THRU 0M316893 -
-8M0086001 LONG BLOCK (H.O.)
(GM Code 4XF) SN# 0M316894 & UpLONG BLOCK (H.O.)
(GM Code 4XF) SN# 0M316894 & Up -
1NSS NOT SOLD SEPARATE, BLOCK-Engine
(Order Longblock Assembly)NOT SOLD SEPARATE, BLOCK-Engine
(Order Longblock Assembly) -
2NSS NOT SOLD SEPARATE, CAP-Crankshaft BearingNOT SOLD SEPARATE, CAP-Crankshaft Bearing
-
3400-8M0084521 CRANKSHAFT (Base)CRANKSHAFT (Base)
-
3400-8M0084521 CRANKSHAFT (H.O.)
(GM Block Code T10153XF and Below)CRANKSHAFT (H.O.)
(GM Block Code T10153XF and Below) -
3400-8M0084521 CRANKSHAFT (H.O.)
(GM Block Code T10163XF and Up)CRANKSHAFT (H.O.)
(GM Block Code T10163XF and Up) -
423-884702 BEARING KIT, CrankshaftBEARING KIT, Crankshaft
-
523-881607001 BEARING KIT, Crankshaft Main ThrustBEARING KIT, Crankshaft Main Thrust
-
617-881605 PIN, Balancer LocatingPIN, Balancer Locating
-
743-881655 SPROCKET, CrankshaftSPROCKET, Crankshaft
-
8881656 COVER, Front
SN# 0M316893 & BelowCOVER, Front
SN# 0M316893 & Below -
8892616001 COVER, Front (Base)
(GM Code 4XY) SN# 0M316948 & UpCOVER, Front (Base)
(GM Code 4XY) SN# 0M316948 & Up -
8892616001 COVER, Front (H.O.)
(GM Code 4XF) SN# 0M316894 & UpCOVER, Front (H.O.)
(GM Code 4XF) SN# 0M316894 & Up -
927-881604 GASKET, Front CoverGASKET, Front Cover
-
1026-881613001 SEAL, Crankshaft front OilSEAL, Crankshaft front Oil
-
1110-8M0069806 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
12881666 SENSOR, Camshaft Position
(GM Block Code 1XY, 1XF)SENSOR, Camshaft Position
(GM Block Code 1XY, 1XF) -
12881666 SENSOR, Camshaft Position
(GM Block Code 2XY, 2XF, 3XY, 3XF)SENSOR, Camshaft Position
(GM Block Code 2XY, 2XF, 3XY, 3XF) -
12892615002 SENSOR, Camshaft Position (Base)
(GM Code 4XY) SN# 0M316948 & UpSENSOR, Camshaft Position (Base)
(GM Code 4XY) SN# 0M316948 & Up -
12892615002 SENSOR, Camshaft Position (H.O.)
(GM Code 4XF) SN# 0M316894 & UpSENSOR, Camshaft Position (H.O.)
(GM Code 4XF) SN# 0M316894 & Up -
13NSS NOT SOLD SEPARATE, SEAL-Camshaft Position SensorNOT SOLD SEPARATE, SEAL-Camshaft Position Sensor
-
1410-883923 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
15891769 BALANCER, Crankshaft
(Base)BALANCER, Crankshaft
(Base) -
15891769 BALANCER, Crankshaft
(H.O.)BALANCER, Crankshaft
(H.O.) -
1610-881587 SCREW, (M16 x 1.5)SCREW, (M16 x 1.5)
-
1712-881614 WASHERWASHER
-
1826-881608001 SEAL, Crankshaft Rear OilSEAL, Crankshaft Rear Oil
-
1917-881609 PIN, Flywheel LocatingPIN, Flywheel Locating
-
20200-8M0083318 FLYWHEEL
(Base & HO)FLYWHEEL
(Base & HO) -
2110-881578 BOLTBOLT
-
2217-843378 PIN, Dowel (1/4 In. Diameter), Oil Pump LocatingPIN, Dowel (1/4 In. Diameter), Oil Pump Locating
-
2316-881615 STUD, Crankshaft Bearing CapSTUD, Crankshaft Bearing Cap
-
2410-881580 SCREW, (M12 x 89)SCREW, (M12 x 89)
-
25883236001 DEFLECTOR, OilDEFLECTOR, Oil
-
2611-881579001 NUTNUT
-
278M0069808 PUMP, With Screen, OilPUMP, With Screen, Oil
-
2817-881611 PIN, Oil PumpPIN, Oil Pump
-
2924-881610 SPRING, Oil PumpSPRING, Oil Pump
-
308M0069808 VALVE, Pressure ReliefVALVE, Pressure Relief
-
318M0046892 SHAFT AND RETAINER, Oil Pump DriveSHAFT AND RETAINER, Oil Pump Drive
-
3223-36183 RETAINER, Oil Pump DriveRETAINER, Oil Pump Drive
-
3310-881585 SCREW, (M10 x 60)SCREW, (M10 x 60)
-
34862349 PULLEY, CrankshaftPULLEY, Crankshaft
-
3510-4009025 SCREW, (M10 x 25) Stainless SteelSCREW, (M10 x 25) Stainless Steel
