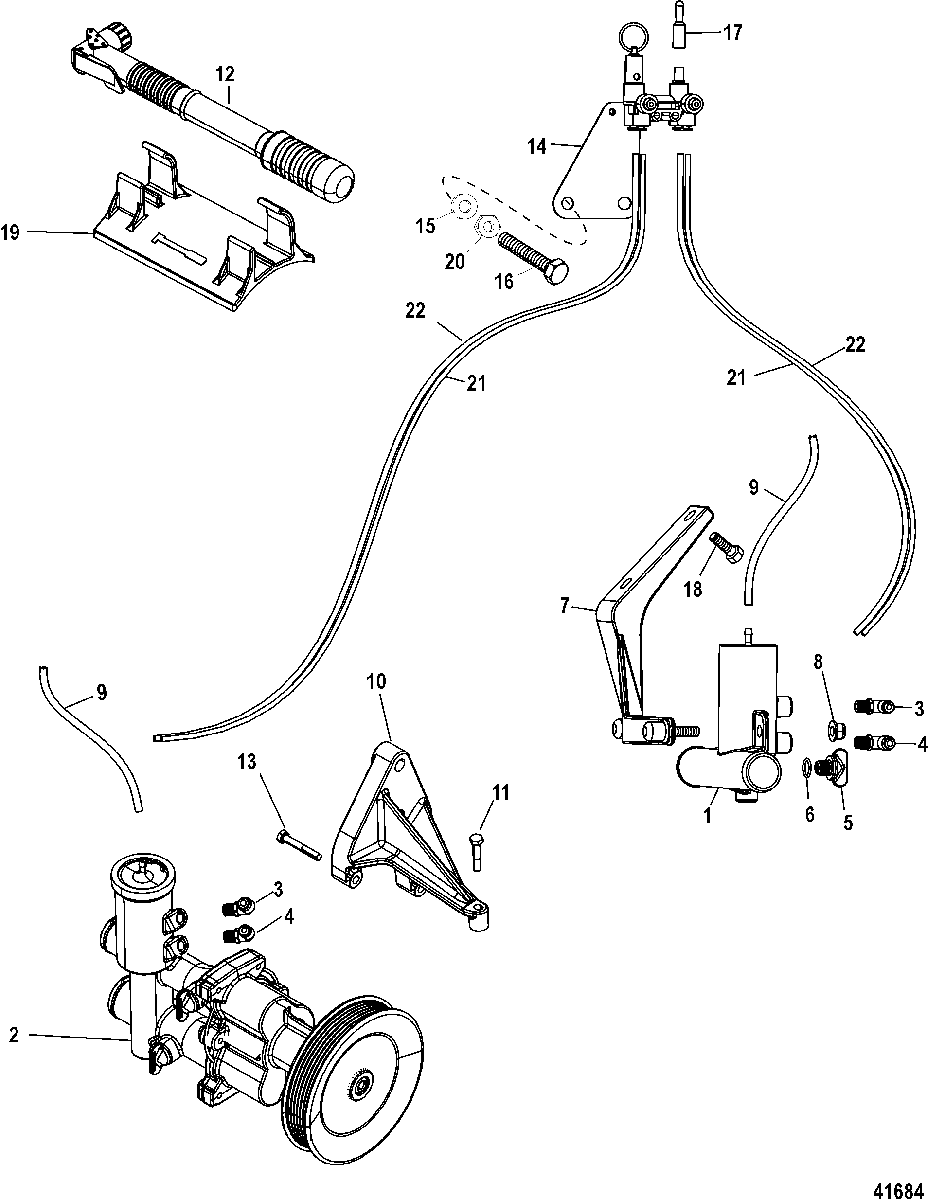

Water Drain System для Mercruiser - 8.1L INBOARD (H.O.) 0W690000 THRU 0W698172
-
№АртикулНазвание
-
1863717A2 ACTUATOR ASSEMBLY, Water Drain
PortACTUATOR ASSEMBLY, Water Drain
Port -
246-8M0137218 PUMP KIT, Sea Water
See "Seawater Pump" for Component Break downPUMP KIT, Sea Water
See "Seawater Pump" for Component Break down -
322-8M0082321 FITTING, Gray (90 Degree)FITTING, Gray (90 Degree)
-
422-8M0082322 FITTING, Orange (90 Degree)FITTING, Orange (90 Degree)
-
522-8M0119211 PLUG ASSEMBLY, (.500-13) BluePLUG ASSEMBLY, (.500-13) Blue
-
625-26802 O-RING, (.424 x .103)O-RING, (.424 x .103)
-
7863863T BRACKET, Actuator Mounting
PortBRACKET, Actuator Mounting
Port -
811-826365 NUT, (M8), NylockNUT, (M8), Nylock
-
932-8630561 HOSE, (42.00 Inches Bulk) Black, AirHOSE, (42.00 Inches Bulk) Black, Air
-
10863859T BRACKETBRACKET
-
1110-4000331 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
12863057 PUMP, AirPUMP, Air
-
1310-8M2012296 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
14862969A2 MANIFOLD ASSEMBLY, AirMANIFOLD ASSEMBLY, Air
-
1512-4002314 WASHERWASHER
-
1610-864887 SCREW, (M5)SCREW, (M5)
-
1719-883503 CAP, Service PointCAP, Service Point
-
1810-4000374 SCREW, (M10 x 16)SCREW, (M10 x 16)
-
19863059 BRACKET, Air PumpBRACKET, Air Pump
-
2011-826292 NUT, (M10) Brass/Nickel PlatedNUT, (M10) Brass/Nickel Plated
-
2132-8M0077561 HOSE, (40.00 Inches Bulk) Green
Cut Starboard to 25.5 Inch, Port Hose To 23 InchHOSE, (40.00 Inches Bulk) Green
Cut Starboard to 25.5 Inch, Port Hose To 23 Inch -
2232-8M0062601 HOSE, (40.00 Inches Bulk) Grey
Starboard 40 Inch, Port Hose To 23 InchHOSE, (40.00 Inches Bulk) Grey
Starboard 40 Inch, Port Hose To 23 Inch
