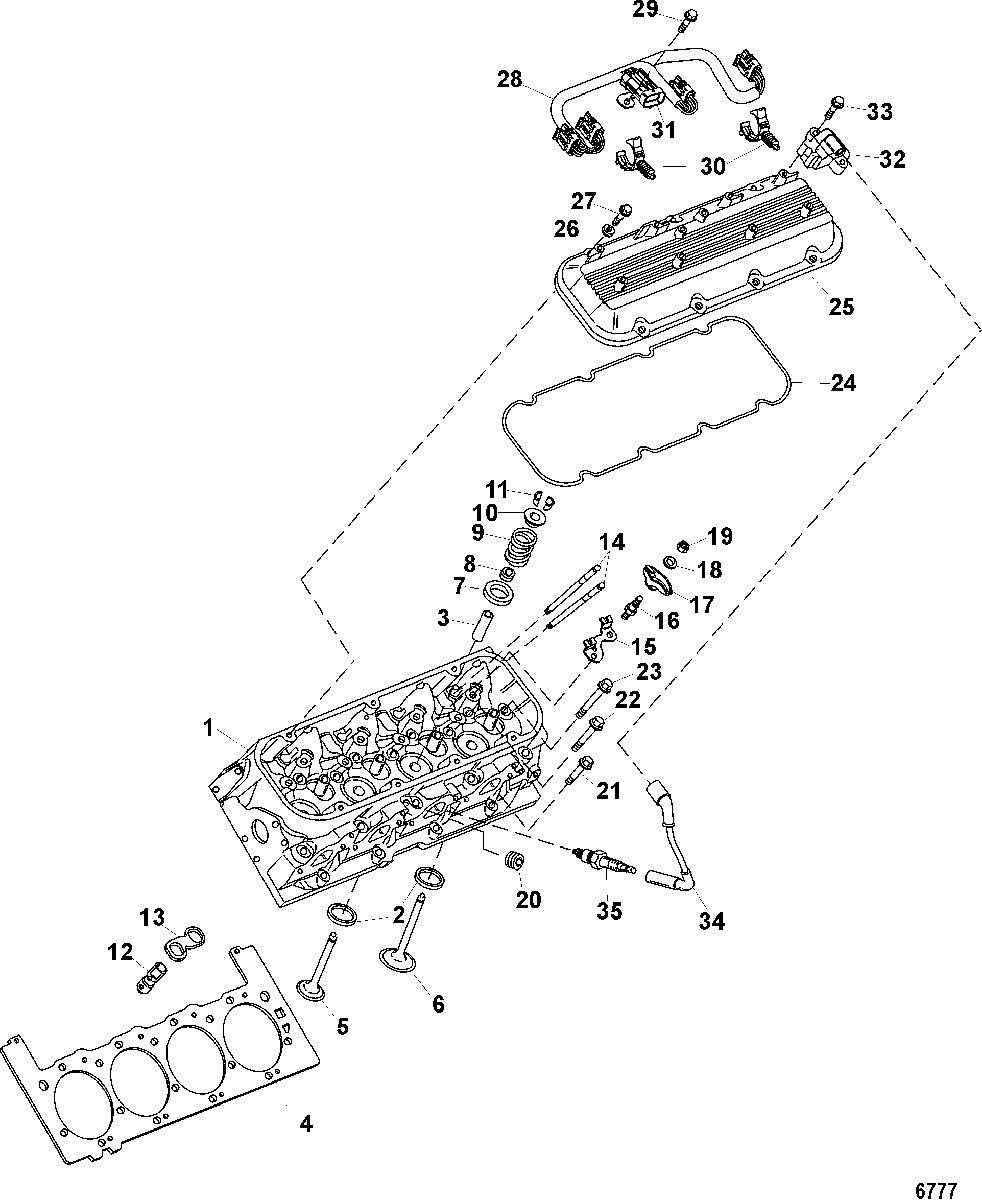

Cylinder Head для Mercruiser - 8.1L INBOARD (Inline) 1G300000 & Up
-
№АртикулНазвание
-
1900-8M0090760 CYLINDER HEAD ASSEMBLY
StarboardCYLINDER HEAD ASSEMBLY
Starboard -
1900-8M0091709 CYLINDER HEAD ASSEMBLY
PortCYLINDER HEAD ASSEMBLY
Port -
2NSS NOT SOLD SEPARATE, SeatNOT SOLD SEPARATE, Seat
-
3NSS NOT SOLD SEPARATE, Guide, ValveNOT SOLD SEPARATE, Guide, Valve
-
427-881631 GASKET, Cylinder Head
(Port)GASKET, Cylinder Head
(Port) -
427-879150064 GASKET, Cylinder Head
(Starboard)GASKET, Cylinder Head
(Starboard) -
5881674 VALVE, Intake
StandardVALVE, Intake
Standard -
5881675 VALVE, Intake
(.003) OversizeVALVE, Intake
(.003) Oversize -
58M0107993 VALVE, Intake
(.015) OversizeVALVE, Intake
(.015) Oversize -
58M0123494 VALVE, Intake
(.030) OversizeVALVE, Intake
(.030) Oversize -
6891713 VALVE, Exhaust
StandardVALVE, Exhaust
Standard -
6881679 VALVE, Exhaust
(.003) OversizeVALVE, Exhaust
(.003) Oversize -
6881680 VALVE, Exhaust
(.015) OversizeVALVE, Exhaust
(.015) Oversize -
6881681 VALVE, Exhaust
(.030) OversizeVALVE, Exhaust
(.030) Oversize -
7850463 ROTATOR, ValveROTATOR, Valve
-
826-881637T SEAL, Valve Stem OilSEAL, Valve Stem Oil
-
924-881672001 SPRING, ValveSPRING, Valve
-
10850464 CAP, Valve SpringCAP, Valve Spring
-
1128-54530 KEY, Valve StemKEY, Valve Stem
-
12850467 LIFTER, ValveLIFTER, Valve
-
13845754 GUIDE, Valve LifterGUIDE, Valve Lifter
-
14881682T PUSH ROD, IntakePUSH ROD, Intake
-
14881683 PUSH ROD, ExhaustPUSH ROD, Exhaust
-
15881686 GUIDE, Rocker ArmGUIDE, Rocker Arm
-
1616-881635 STUDSTUD
-
17881687T ARMARM
-
1858041 BALLBALL
-
1911-801883 NUTNUT
-
2022-75983 PLUGPLUG
-
-10-881642A01 BOLT KITBOLT KIT
-
21NSS NOT SOLD SEPARATE, SCREW, (M10 x 52)NOT SOLD SEPARATE, SCREW, (M10 x 52)
-
22NSS NOT SOLD SEPARATE, SCREW, (M10 x 86)NOT SOLD SEPARATE, SCREW, (M10 x 86)
-
23NSS NOT SOLD SEPARATE, SCREW, (M10 x 103)NOT SOLD SEPARATE, SCREW, (M10 x 103)
-
2427-881622 GASKET, Cylinder Head CoverGASKET, Cylinder Head Cover
-
25891870 COVER, Cylinder HeadCOVER, Cylinder Head
-
2627-881621 GASKETGASKET
-
2710-881623 SCREW, (M6 x 1)SCREW, (M6 x 1)
-
2884-8M0143829 HARNESS ASSEMBLY, Ignition Coil WiringHARNESS ASSEMBLY, Ignition Coil Wiring
-
2910-881648 BOLT, (M6 x 13)BOLT, (M6 x 13)
-
3054-8M0069809 CLIP, Wiring HarnessCLIP, Wiring Harness
-
31NSS NOT SOLD SEPARATE, Connector-Harness to HarnessNOT SOLD SEPARATE, Connector-Harness to Harness
-
32392-889925 COIL, IgnitionCOIL, Ignition
-
3310-881647 SCREWSCREW
-
3484-8M0117678 WIRE KIT, (8 Leads), Spark PlugWIRE KIT, (8 Leads), Spark Plug
-
3484-888740 WIRE, Individual, Spark Plug
Use with Cylinders 1, 2, 7 and 8WIRE, Individual, Spark Plug
Use with Cylinders 1, 2, 7 and 8 -
3484-8M0119695 WIRE, Individual, Spark Plug
Use with Cylinders 3, 4, 5 and 6WIRE, Individual, Spark Plug
Use with Cylinders 3, 4, 5 and 6 -
3533-8M0129146 SPARK PLUGSPARK PLUG
-
NS881720 RETAINER, 2 Spark Plug WireRETAINER, 2 Spark Plug Wire
-
NS883924 RETAINER, ConduitRETAINER, Conduit
-
NS19-47463 EXPANSION PLUG, Cylinder HeadEXPANSION PLUG, Cylinder Head
