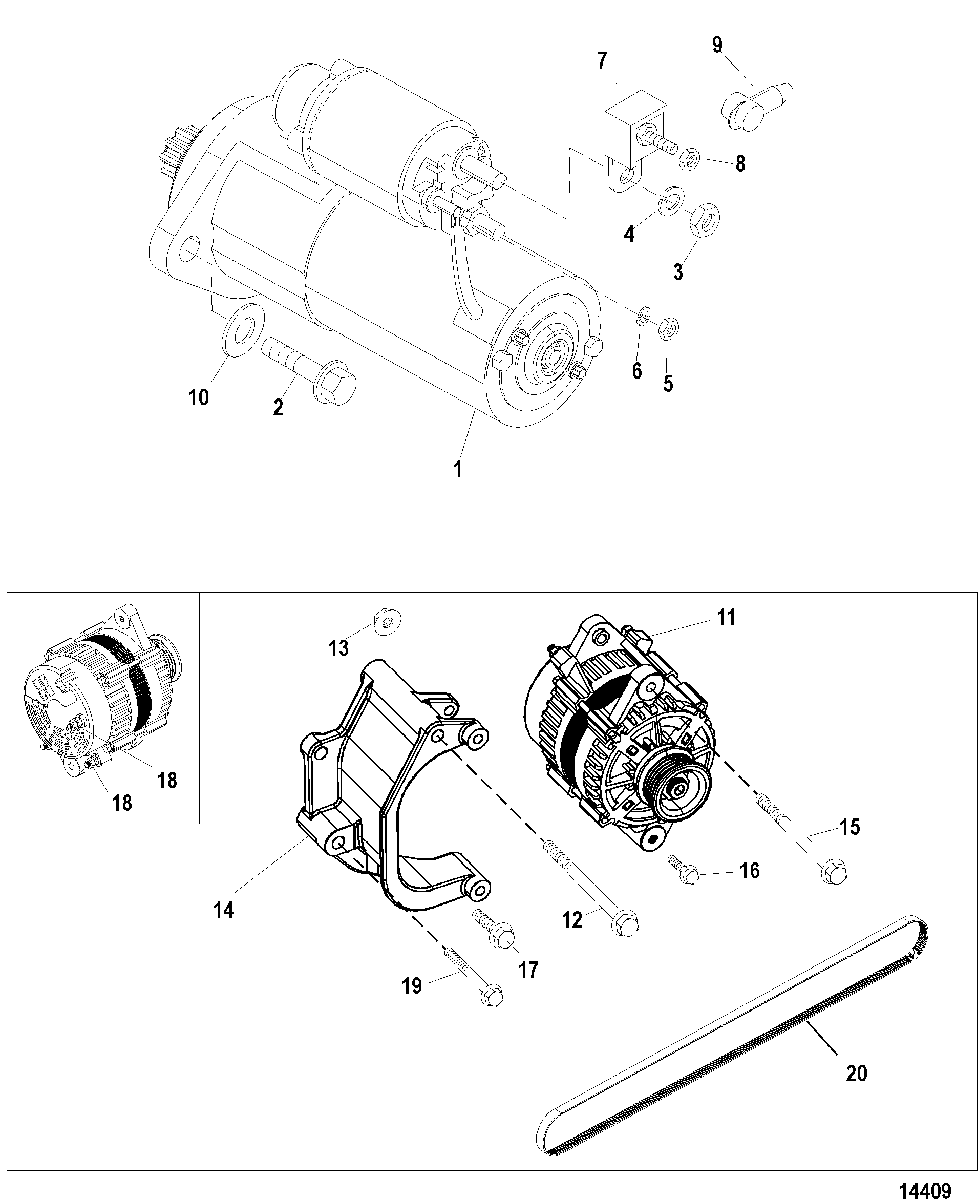

Starter and Alternator для Mercruiser - 8.1L INBOARD (V-Drive) 1G300000 & Up
-
№АртикулНазвание
-
150-808011A05 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
210-47462 SCREW, (.437-14 x 1.250)SCREW, (.437-14 x 1.250)
-
311-806949 NUT, (M8-1.5)NUT, (M8-1.5)
-
413-400247 LOCKWASHER, (M8)LOCKWASHER, (M8)
-
511-400211 NUT, (M5) Stainless SteelNUT, (M5) Stainless Steel
-
613-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
788-79023A91 FUSE ASSEMBLY, 90 AmpereFUSE ASSEMBLY, 90 Ampere
-
811-8267119 NUT, (.250-28)NUT, (.250-28)
-
985-79695T BOOT, Insulator (Black)BOOT, Insulator (Black)
-
1013-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
11863077T ALTERNATOR ASSEMBLY, BlackALTERNATOR ASSEMBLY, Black
-
1210-824459110 SCREW, (M8 x 110) Stainless SteelSCREW, (M8 x 110) Stainless Steel
-
1311-401368 NUT, (M8) Stainless SteelNUT, (M8) Stainless Steel
-
14865594T01 BRACKET, AlternatorBRACKET, Alternator
-
1510-40108120 SCREW, (M10 x 120) Hex Flange - Stainless SteelSCREW, (M10 x 120) Hex Flange - Stainless Steel
-
1610-8M0103817 SCREW, (M8 x 60)SCREW, (M8 x 60)
-
1710-4010835 SCREW, (M10 x 35) Hex Flange - Stainless SteelSCREW, (M10 x 35) Hex Flange - Stainless Steel
-
1811-400212 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
1910-4010860 SCREW, (M10 x 60) Hex Flange - Stainless SteelSCREW, (M10 x 60) Hex Flange - Stainless Steel
-
2057-865635Q02 BELT, SerpentineBELT, Serpentine
