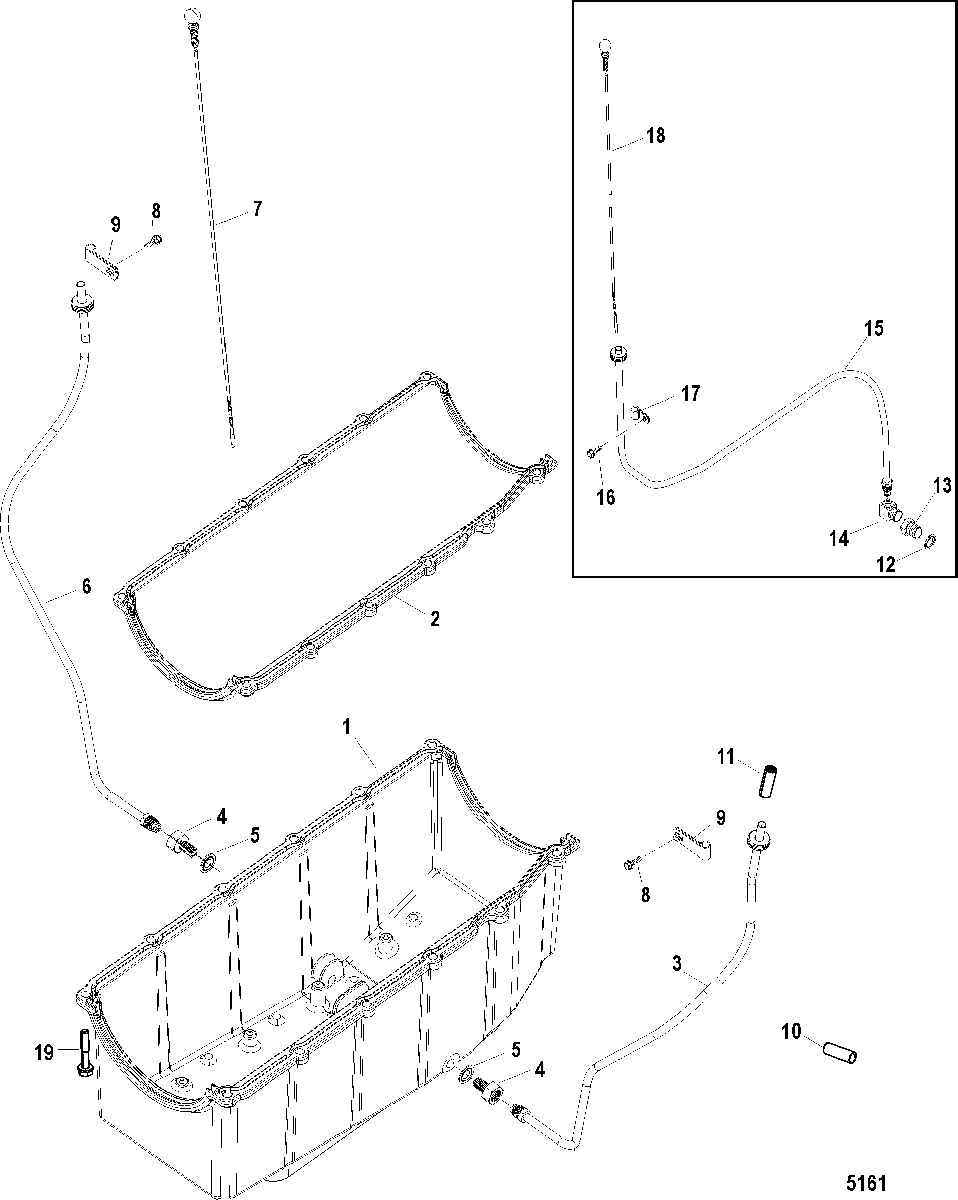

Oil Pan and Drain System для Mercruiser - 8.1L TOWSPORT (Base) 1A380074 & Up
-
№АртикулНазвание
-
1881653001 PAN, OilPAN, Oil
-
NS883922 BAFFLE, Oil PanBAFFLE, Oil Pan
-
NS10-883923 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
227-881612 GASKET, Oil PanGASKET, Oil Pan
-
3863406 TUBE, Engine Oil Gauge
In-Line, StarboardTUBE, Engine Oil Gauge
In-Line, Starboard -
422-807804 FITTING, Oil Gauge Tube
In-LineFITTING, Oil Gauge Tube
In-Line -
527-8M0077608 GASKET, Drain
In-LineGASKET, Drain
In-Line -
6863407 TUBE, Engine Oil Gauge
In-Line, PortTUBE, Engine Oil Gauge
In-Line, Port -
786194211 GAUGE, Oil Level
In-LineGAUGE, Oil Level
In-Line -
810-4000328 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
954-65653 CLIPCLIP
-
10861982 CAP, VinylCAP, Vinyl
-
1154-805524 CLIPCLIP
-
1227-8M0077608 GASKET, Drain
V-DriveGASKET, Drain
V-Drive -
1322-863389A01 FITTING, Oil Gauge Tube
V-DriveFITTING, Oil Gauge Tube
V-Drive -
1422-19697 ELBOW
V-DriveELBOW
V-Drive -
15865217 TUBE, Engine Oil Gauge
V-DriveTUBE, Engine Oil Gauge
V-Drive -
1610-4000328 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
1754-65653 CLIP
V-DriveCLIP
V-Drive -
1886194210 GAUGE, Oil Level
V-DriveGAUGE, Oil Level
V-Drive -
1910-898101392 BOLT, (M8 x 30)BOLT, (M8 x 30)
