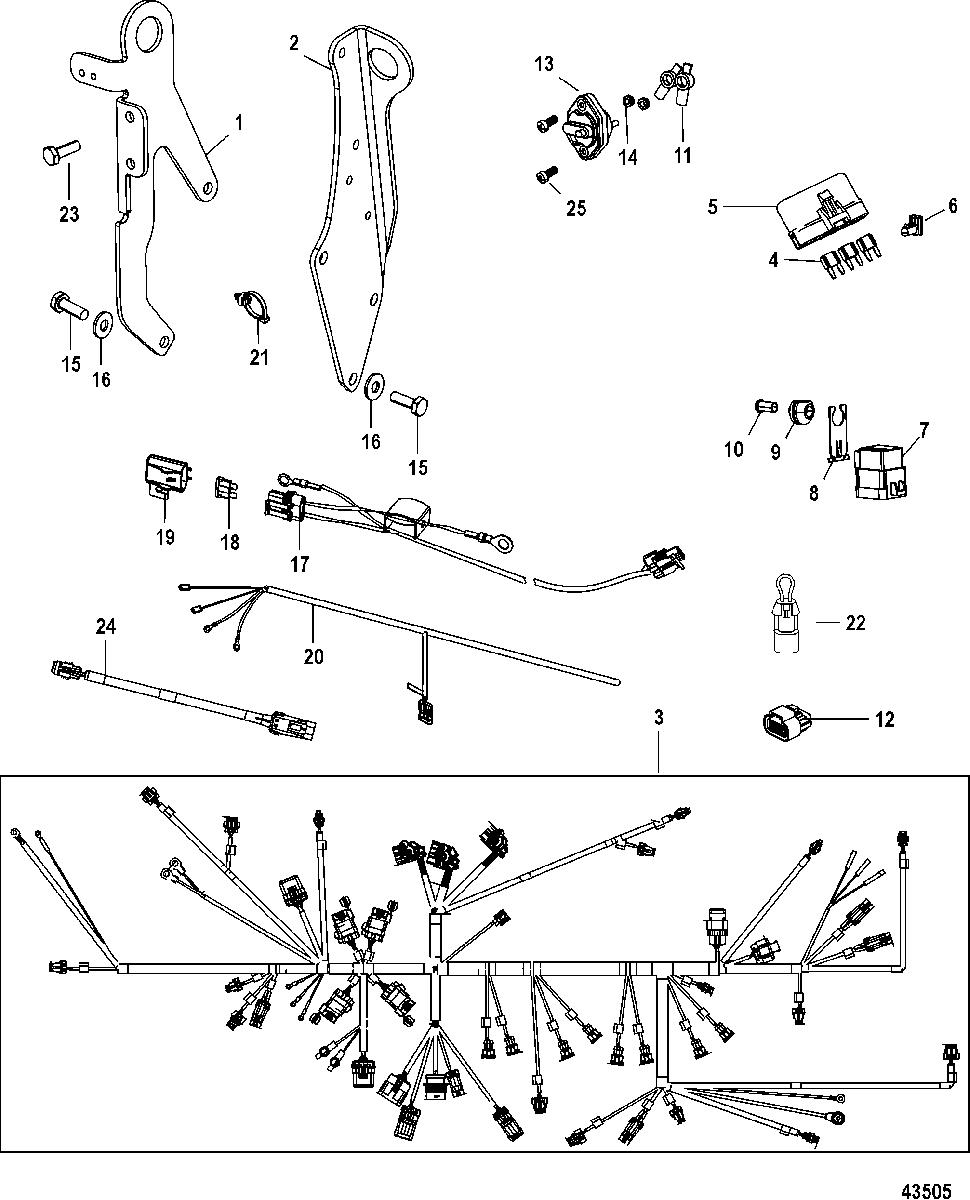

Wiring Harness and Lifting Brackets для Mercruiser - 8.2L INBOARD (BASE) EC 1A350802 THRU 2A041664
-
№АртикулНазвание
-
18M0050591 BRACKET, Lifting, FrontBRACKET, Lifting, Front
-
28M0050537 BRACKET, Lifting, RearBRACKET, Lifting, Rear
-
384-8M0045253 HARNESS ASSEMBLY
Digital Throttle & ShiftHARNESS ASSEMBLY
Digital Throttle & Shift -
488-832969T20 FUSE, Mini - Yellow - 20 Ampere
Digital Throttle & ShiftFUSE, Mini - Yellow - 20 Ampere
Digital Throttle & Shift -
5858754 COVER, FuseCOVER, Fuse
-
654-879962 CLIPCLIP
-
7882751A1 RELAY ASSEMBLY
Digital Throttle & ShiftRELAY ASSEMBLY
Digital Throttle & Shift -
8828102 BRACKETBRACKET
-
925-818967 GROMMETGROMMET
-
1023-818968 BUSHINGBUSHING
-
1185-89919 BOOT, Insulator - BlackBOOT, Insulator - Black
-
128M0055652 TERMINATOR ASSEMBLY, 10 Pin (CAN 1P and H)TERMINATOR ASSEMBLY, 10 Pin (CAN 1P and H)
-
1388-11178A01 BREAKER, Circuit - 50 AmpereBREAKER, Circuit - 50 Ampere
-
1411-826709106 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
1510-47461 SCREW, (.437-14 x 1.00)SCREW, (.437-14 x 1.00)
-
1612-22248 WASHER, (.453 x .875 x .060)WASHER, (.453 x .875 x .060)
-
1784-8M0113732 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
18862646 FUSE, Tan - 5 AmpereFUSE, Tan - 5 Ampere
-
19828054 COVER, FuseCOVER, Fuse
-
2084-865676T02 HARNESS ASSEMBLY
MIE, Digital Throttle & ShiftHARNESS ASSEMBLY
MIE, Digital Throttle & Shift -
2154-899145 CLIP, Tie StrapCLIP, Tie Strap
-
22830796A1 CONNECTOR ASSEMBLY
MIECONNECTOR ASSEMBLY
MIE -
2310-4010820 SCREW, (M10 x 20) Hex Flange - Stainless Steel, Front Lifting Eye to Remote OilSCREW, (M10 x 20) Hex Flange - Stainless Steel, Front Lifting Eye to Remote Oil
-
2484-8M0047208 HARNESS, Adapter, Oxygen SensorsHARNESS, Adapter, Oxygen Sensors
-
2510-830861 SCREW, (#8-32 x .625)SCREW, (#8-32 x .625)
-
NS8M2018134 BRACE, Rear Lifting EyeBRACE, Rear Lifting Eye
-
NS10-4010720 SCREW, (M8 x 20), Brace to Plenum & Brace to Rear LiftSCREW, (M8 x 20), Brace to Plenum & Brace to Rear Lift
