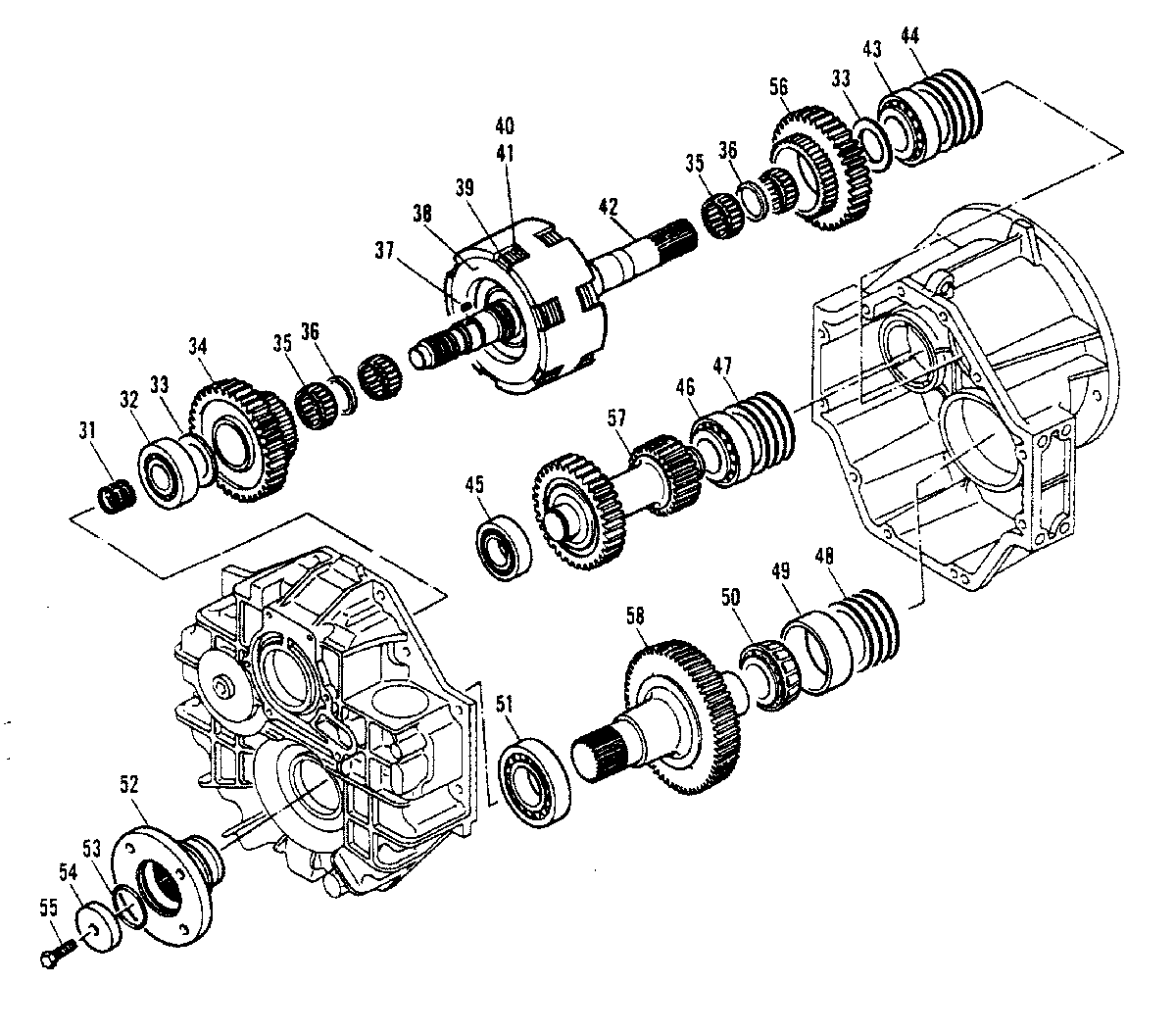

TRANSMISSION (800 SERIES DIRECT DRIVE) для Mercruiser - 8.2L MIE GEN. V GM 502 V-8 1993-1996 0D857200 THRU 0F819619
-
№АртикулНазвание
-
-806729A2 TRANSMISSION ASSEMBLY (2.5:1 RATIO)TRANSMISSION ASSEMBLY (2.5:1 RATIO)
-
-806730A2 TRANSMISSION ASSEMBLY (2.8:1 RATIO)TRANSMISSION ASSEMBLY (2.8:1 RATIO)
-
3153-813312 SNAP RINGSNAP RING
-
3230-813314 BALL BEARINGBALL BEARING
-
3312-811935 WASHERWASHER
-
3443-811936 GEARGEAR
-
3531-813307 ROLLER BEARINGROLLER BEARING
-
3625-811933 INTERMEDIATE RINGINTERMEDIATE RING
-
3728-813313 KEYKEY
-
38813322 PRESSURE DISCPRESSURE DISC
-
3953-813321 SNAP RINGSNAP RING
-
40813319 INNER CLUTCH DISCINNER CLUTCH DISC
-
41813320 OUTER CLUTCH DISCOUTER CLUTCH DISC
-
42811937 INPUT SHAFTINPUT SHAFT
-
4330-811934 BALL BEARINGBALL BEARING
-
4415-811932010 SHIM (.10MM)SHIM (.10MM)
-
4415-811932015 SHIM (.15MM)SHIM (.15MM)
-
4415-811932030 SHIM (.30MM)SHIM (.30MM)
-
4415-811932050 SHIM (.50MM)SHIM (.50MM)
-
4530-813314 BALL BEARINGBALL BEARING
-
4631-813331 TAPERED ROLLER BEARINGTAPERED ROLLER BEARING
-
4715-811931010 SHIM (.10MM)SHIM (.10MM)
-
4715-811931015 SHIM (.15MM)SHIM (.15MM)
-
4715-811931020 SHIM (.20MM)SHIM (.20MM)
-
4715-811931050 SHIM (.50MM)SHIM (.50MM)
-
4715-811931100 SHIM (1.00MM)SHIM (1.00MM)
-
4815-811925010 SHIM (.10MM)SHIM (.10MM)
-
4815-811925015 SHIM (.15MM)SHIM (.15MM)
-
4815-811925020 SHIM (.20MM)SHIM (.20MM)
-
4815-811925050 SHIM (.50MM)SHIM (.50MM)
-
4815-811925100 SHIM (1.00MM)SHIM (1.00MM)
-
4931-811924 TAPERED ROLLER BEARINGTAPERED ROLLER BEARING
-
5031-811926 TAPERED ROLLER BEARINGTAPERED ROLLER BEARING
-
5130-811927 BALL ROLLER BEARINGBALL ROLLER BEARING
-
52811929 OUTPUT FLANGEOUTPUT FLANGE
-
5325-813329 O-RINGO-RING
-
54811930 DISKDISK
-
5510-811928 SCREWSCREW
-
5643-811923 GEAR
2.5:1 RATIOGEAR
2.5:1 RATIO -
57811922 INTERMEDIATE SHAFT
2.5:1 RATIOINTERMEDIATE SHAFT
2.5:1 RATIO -
58811921 OUTPUT SHAFT
2.5:1 RATIOOUTPUT SHAFT
2.5:1 RATIO -
5643-811920 GEAR
2.8:1 RATIOGEAR
2.8:1 RATIO -
57811919 INTERMEDIATE SHAFT
2.8:1 RATIOINTERMEDIATE SHAFT
2.8:1 RATIO -
58811918 OUTPUT SHAFT
2.8:1 RATIOOUTPUT SHAFT
2.8:1 RATIO
