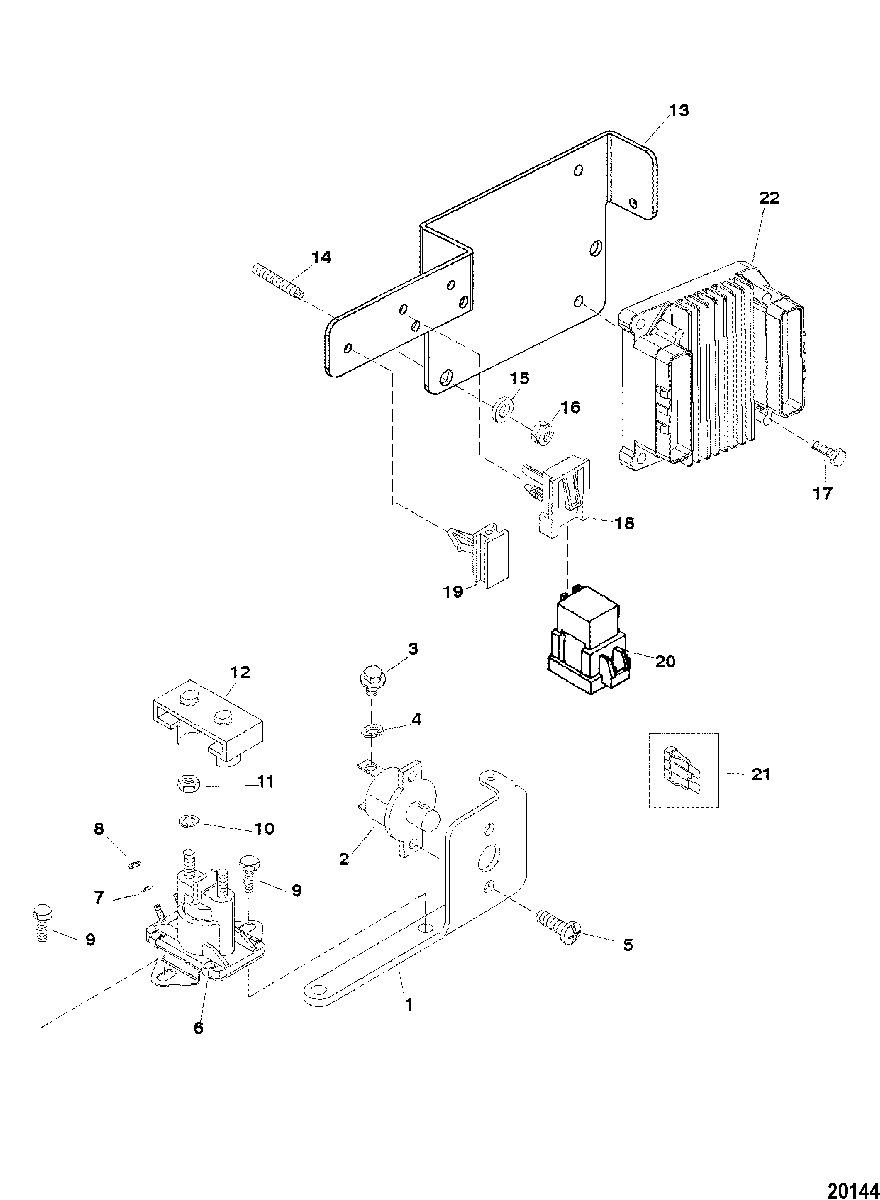

Electrical Components для Mercruiser - 8.2L MIE MPI (GEN. VI) GM 502 V-8 0L086013 THRU 0L674200
-
№АртикулНазвание
-
1899719T01 BRACKET, ElectricalBRACKET, Electrical
-
288-11178A01 BREAKER, Circuit - 50 AmpereBREAKER, Circuit - 50 Ampere
-
310-68513 SCREW, (#10-32 x .375) Stainless SteelSCREW, (#10-32 x .375) Stainless Steel
-
413-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
510-57583T SCREW, (#8-32 x .375)SCREW, (#8-32 x .375)
-
689-96158T SOLENOIDSOLENOID
-
713-26995 LOCKWASHER, (#8) Stainless SteelLOCKWASHER, (#8) Stainless Steel
-
811-26419 NUT, (#8-32) BrassNUT, (#8-32) Brass
-
910-805564 SCREW, (.250-20 x .750)SCREW, (.250-20 x .750)
-
1013-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
1111-94330 NUT, (.250-20) BrassNUT, (.250-20) Brass
-
1285-97861 INSULATORINSULATOR
-
13861714T BRACKET, ECU MountingBRACKET, ECU Mounting
-
1410-24323 SET SCREW, (.250-20 x 1.25)SET SCREW, (.250-20 x 1.25)
-
1512-35462 WASHER, (.2656 x .625 x .0625) Stainless SteelWASHER, (.2656 x .625 x .0625) Stainless Steel
-
1611-64015 NUT, (.250-20)NUT, (.250-20)
-
1710-28636 SCREW, (.250-20 x .750)SCREW, (.250-20 x .750)
-
1886-865205 CLIPCLIP
-
1954-804352 CLIPCLIP
-
2086-865202T RELAYRELAY
-
2188-83296910 FUSE, Red - 10 AmpereFUSE, Red - 10 Ampere
-
2188-832969T15 FUSE, Mini - Blue - 15 AmpereFUSE, Mini - Blue - 15 Ampere
-
22891896A01 ECM, Engine Control Module
(454)ECM, Engine Control Module
(454) -
22895104A01 ECM, Engine Control Module
(502)ECM, Engine Control Module
(502) -
NS84-861718T1 HARNESS ASSEMBLY, Neutral Safety SwitchHARNESS ASSEMBLY, Neutral Safety Switch
-
NS84-862021T1 HARNESS ASSEMBLY, Transmission Overheat SwitchHARNESS ASSEMBLY, Transmission Overheat Switch
