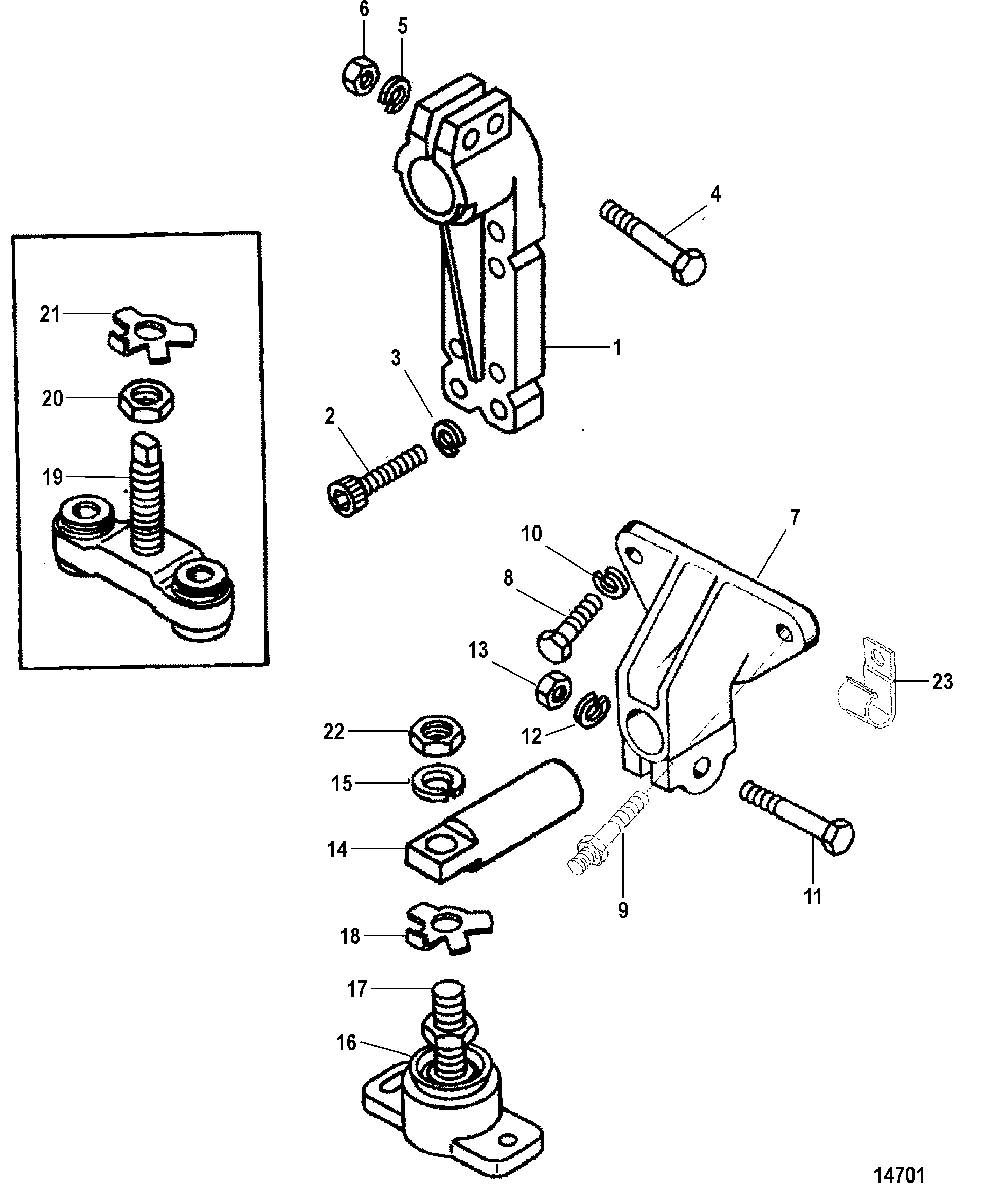

TRANSMISSION AND ENGINE MOUNTING(HURTH 630 &800) для Mercruiser - 8.2L MIE MPI (LH) GEN. VI GM 502 V-8 1996-1997 0F819620 THRU 0K999999
-
№АртикулНазвание
-
118903T02 BRACKET
(REAR)BRACKET
(REAR) -
210-806195 SCREW, (M12 x 45)SCREW, (M12 x 45)
-
313-38829 LOCKWASHER, (.500)LOCKWASHER, (.500)
-
410-57357 SCREW, (.437-13 x 2.250)SCREW, (.437-13 x 2.250)
-
513-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
611-82670814 NUT, (.437-14)NUT, (.437-14)
-
766418T BRACKET, FrontBRACKET, Front
-
810-68101 SCREW, (.375-16 x 1.375)
VST FUEL SYSTEMSCREW, (.375-16 x 1.375)
VST FUEL SYSTEM -
810-68101 SCREW, (.375-16 x 1.375)
FUEL COOLED SYSTEMSCREW, (.375-16 x 1.375)
FUEL COOLED SYSTEM -
810-48424 SCREW, (.375-16 x 1.620)
FUEL COOLED SYSTEMSCREW, (.375-16 x 1.620)
FUEL COOLED SYSTEM -
916-8M2004610 STUD, (.375-16 x 2.130)
FUEL COOLED SYSTEMSTUD, (.375-16 x 2.130)
FUEL COOLED SYSTEM -
1013-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
1110-37269 SCREW, (.437-14 x 2.00)SCREW, (.437-14 x 2.00)
-
1213-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
1311-82670814 NUT, (.437-14)NUT, (.437-14)
-
1466166A4 TRUNNIONTRUNNION
-
1513-68102 LOCKWASHER, (.750)LOCKWASHER, (.750)
-
1666284A2 BASE ASSEMBLY
(FRONT)BASE ASSEMBLY
(FRONT) -
1711-20739 NUT, (.750-16)NUT, (.750-16)
-
1814-66658 TAB WASHERTAB WASHER
-
19816326A2 BASE ASSEMBLY
(REAR)BASE ASSEMBLY
(REAR) -
2011-816331 NUT, (.750-16)NUT, (.750-16)
-
2114-66658 TAB WASHERTAB WASHER
-
2211-20739 NUT, (.750-16)NUT, (.750-16)
-
2354-78945 J CLAMP, Harness SupportJ CLAMP, Harness Support
