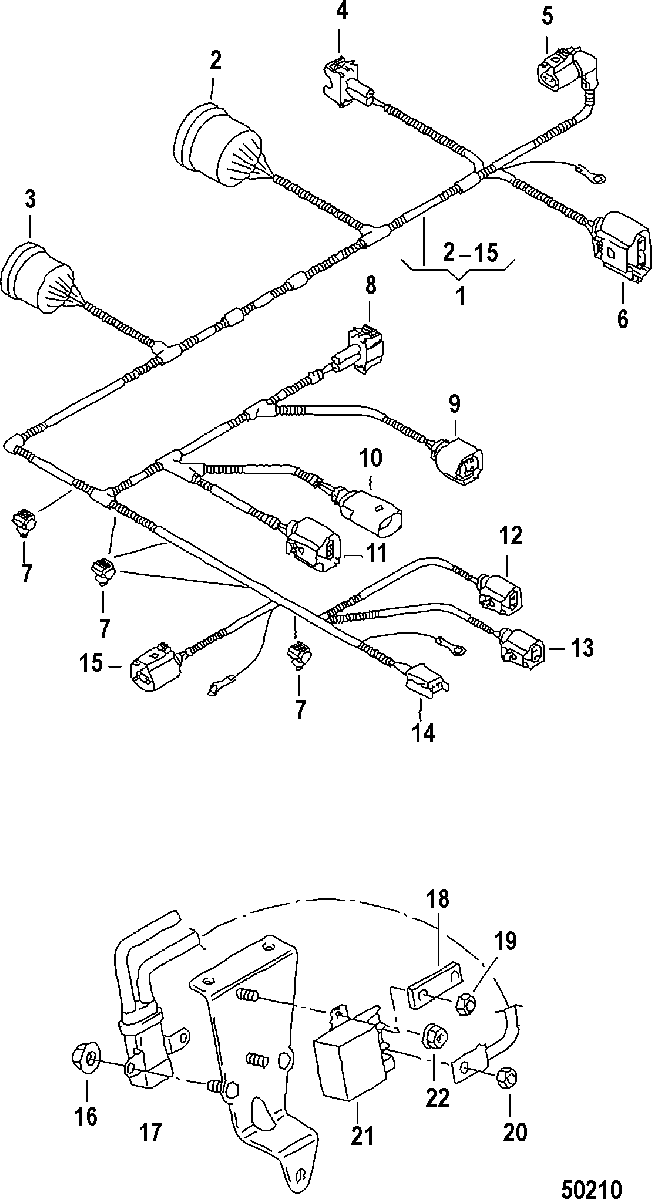

WIRING HARNESS, Engine для Mercruiser - 1.9L SDI 50 I4 BGL000901 & Up
-
№АртикулНазвание
-
184-8M0066936 WIRING HARNESSWIRING HARNESS
-
286-8M0067133 CONNECTOR, 35 PinCONNECTOR, 35 Pin
-
386-8M0067152 CONNECTOR, 16 PinCONNECTOR, 16 Pin
-
486-8M0066301 CONNECTOR, 2 PinCONNECTOR, 2 Pin
-
586-8M0068027 CONNECTOR, 2 PinCONNECTOR, 2 Pin
-
686-8M0067527 CONNECTOR, 3 PinCONNECTOR, 3 Pin
-
754-8M0068018 CLAMP, WIRE TIE, 4.5X200MMCLAMP, WIRE TIE, 4.5X200MM
-
88M0068006 CONNECTOR, 2 PinCONNECTOR, 2 Pin
-
986-8M0068023 CONNECTOR, 4 PinCONNECTOR, 4 Pin
-
1086-8M0068024 CONNECTOR, 4 PinCONNECTOR, 4 Pin
-
1186-8M0068019 CONNECTOR, 3 PinCONNECTOR, 3 Pin
-
128M0068006 CONNECTOR, 2 PinCONNECTOR, 2 Pin
-
1386-8M0067530 CONNECTOR, 2 PinCONNECTOR, 2 Pin
-
148M0067509 CONNECTOR, 1 PinCONNECTOR, 1 Pin
-
1586-8M0067524 CONNECTOR, 2 PinCONNECTOR, 2 Pin
-
1611-8M0068354 NUT, M8NUT, M8
-
1784-8M0067195 WIRING HARNESS
SN# 001 200 & BelowWIRING HARNESS
SN# 001 200 & Below -
1784-8M0066938 WIRING HARNESS
SN# 001 201 & UpWIRING HARNESS
SN# 001 201 & Up -
188M0067197 GROUND CABLEGROUND CABLE
-
1911-8M0068086 NUT, M6NUT, M6
-
2011-8M0068089 NUT, M6NUT, M6
-
218M0067541 RELAYRELAY
-
2211-8M0068164 NUT, M6NUT, M6
