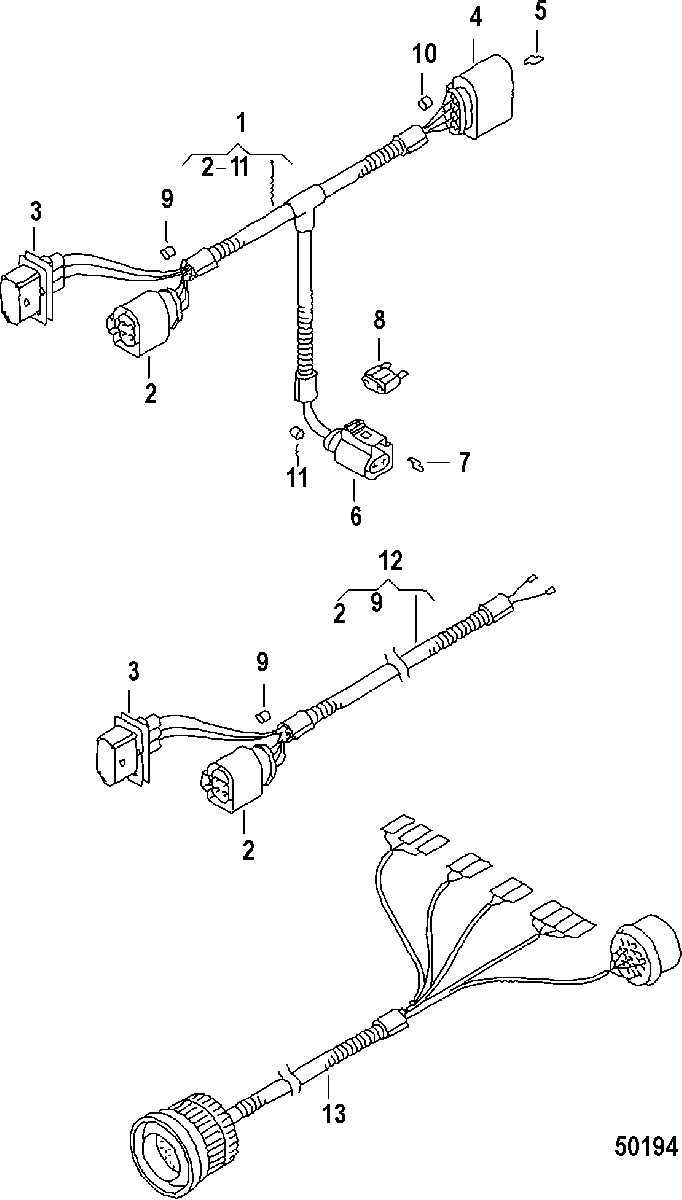

WIRING SETS для Mercruiser - 1.9L SDI 60 I4 ANC000900 & Up
-
№АртикулНазвание
-
184-8M0067180 WIRING HARNESS, Warm/Hot UnitWIRING HARNESS, Warm/Hot Unit
-
286-8M0068023 CONNECTOR, 4 PinCONNECTOR, 4 Pin
-
38M0066183 WIRE SETWIRE SET
-
486-8M0068024 CONNECTOR, 4 PinCONNECTOR, 4 Pin
-
58M0066185 WIRE SETWIRE SET
-
686-8M0067526 CONNECTOR, 2 PinCONNECTOR, 2 Pin
-
78M0066187 WIRE SETWIRE SET
-
888-8M0068278 FUSE, 4A, PinkFUSE, 4A, Pink
-
926-8M0068002 TERMINAL, 3.9x7.8 , RedTERMINAL, 3.9x7.8 , Red
-
1026-8M0068003 TERMINAL, 3.9x7.8 , YellowTERMINAL, 3.9x7.8 , Yellow
-
118M0068004 TERMINAL, 5.6x7.8 , BlueTERMINAL, 5.6x7.8 , Blue
-
1284-8M0067179 WIRING HARNESS, GearboxWIRING HARNESS, Gearbox
-
1384-8M0066935 WIRING HARNESS, Engine Instrument HousingWIRING HARNESS, Engine Instrument Housing
-
NS84-8M0067196 WIRING HARNESS, Battery, 4000mmWIRING HARNESS, Battery, 4000mm
