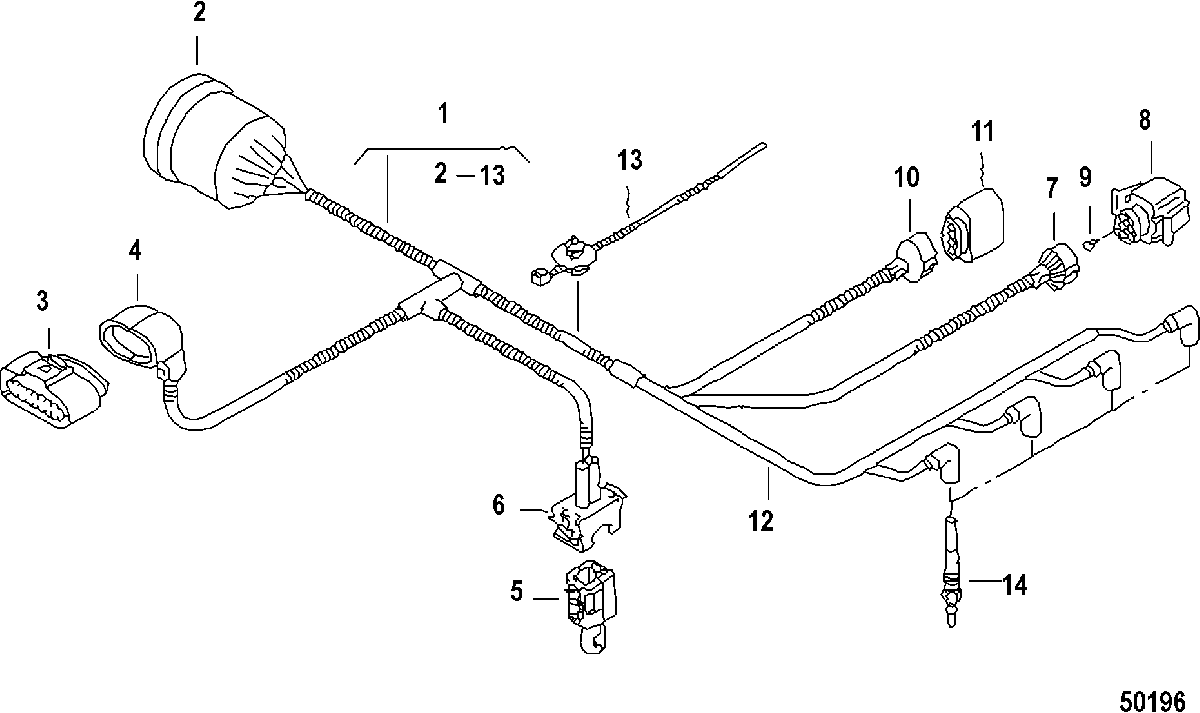

WIRING HARNESS, Engine Injection Pump для Mercruiser - 1.9L TDI 75 I4 CDX000900 & Up
-
№АртикулНазвание
-
184-8M0066937 WIRING HARNESSWIRING HARNESS
-
286-8M0067133 CONNECTOR, 35 PinCONNECTOR, 35 Pin
-
386-8M0067529 CONNECTOR, 10 PinCONNECTOR, 10 Pin
-
48M0067520 CONNECTOR CAPCONNECTOR CAP
-
586-8M0066301 CONNECTOR, 2 PinCONNECTOR, 2 Pin
-
68M0067519 CONNECTOR CAP, 2 PinCONNECTOR CAP, 2 Pin
-
78M0067522 CONNECTOR CAPCONNECTOR CAP
-
886-8M0068010 CONNECTOR, 6 PinCONNECTOR, 6 Pin
-
919-8M0068015 PLUG, 4.0x7.8PLUG, 4.0x7.8
-
108M0068038 CONNECTOR CAPCONNECTOR CAP
-
1186-8M0067525 CONNECTOR, 4 PinCONNECTOR, 4 Pin
-
1284-8M0066255 WIRING HARNESSWIRING HARNESS
-
1354-8M0068018 CLAMP, WIRE TIE, 4.5X200MMCLAMP, WIRE TIE, 4.5X200MM
-
148M0068228 GLOW PLUG, M10x1x25GLOW PLUG, M10x1x25
