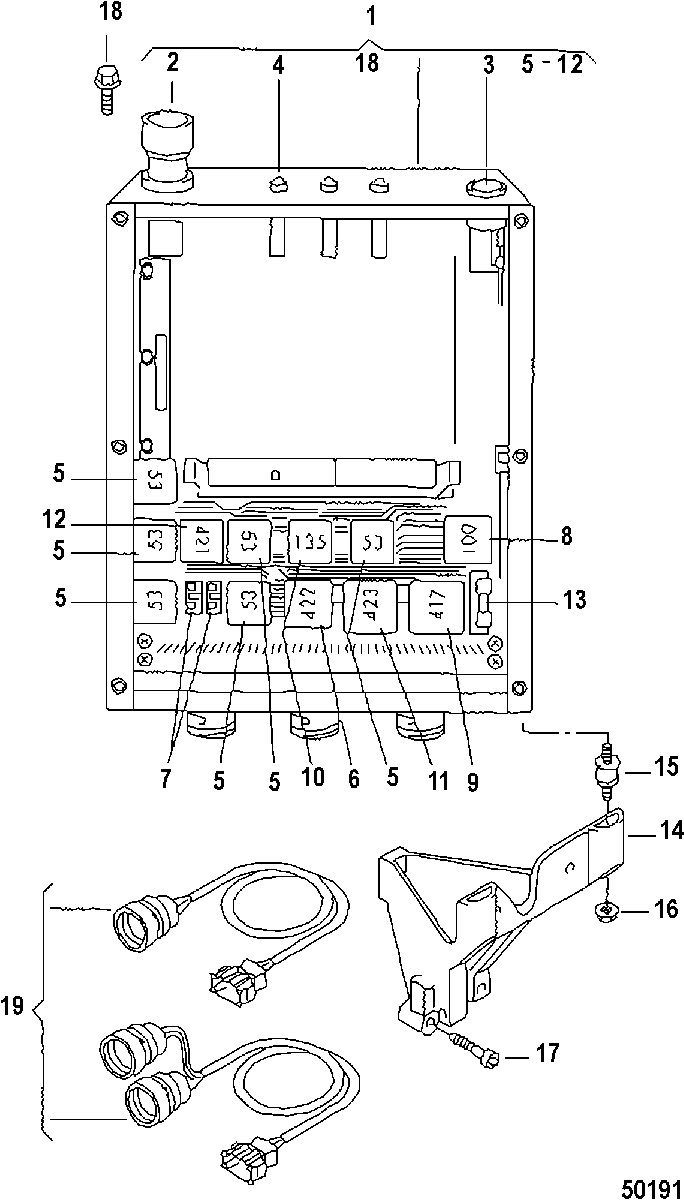

ELECTRICAL COMPONENTS, From: Dec. 2004; All 2.5L Models для Mercruiser - 2.5L SDI 55 I5 BCT001003 & Up
-
№АртикулНазвание
-
1NSS NOT SOLD SEPARATENOT SOLD SEPARATE
-
287-8M0067166 SWITCH , E-STOPSWITCH , E-STOP
-
387-8M0067173 SWITCH, Push ButtonSWITCH, Push Button
-
483-8M0067158 DIODEDIODE
-
58M0068032 RELAY, 40A, 643; 53 +373RELAY, 40A, 643; 53 +373
-
68M0067540 RELAYRELAY
-
788-8M0068173 FUSE, 15A, Light BlueFUSE, 15A, Light Blue
-
88M0068032 RELAY, 40A, 100RELAY, 40A, 100
-
98M0067163 RELAY, 417RELAY, 417
-
108M0068001 RELAY, 135RELAY, 135
-
118M0067161 RELAY, Water TrapRELAY, Water Trap
-
128M0067157 RELAY, 421RELAY, 421
-
1388-8M0068271 FUSE, 50A, RedFUSE, 50A, Red
-
148M0067156 BRACKET, Relay Plate/Fuse BoxBRACKET, Relay Plate/Fuse Box
-
1555-8M0067120 VIBRATION ISOLATORVIBRATION ISOLATOR
-
1611-8M0068164 NUT, M6NUT, M6
-
1710-8M0068295 SCREW , M10x40SCREW , M10x40
-
1810-8M0068204 SCREW , M6x12SCREW , M6x12
