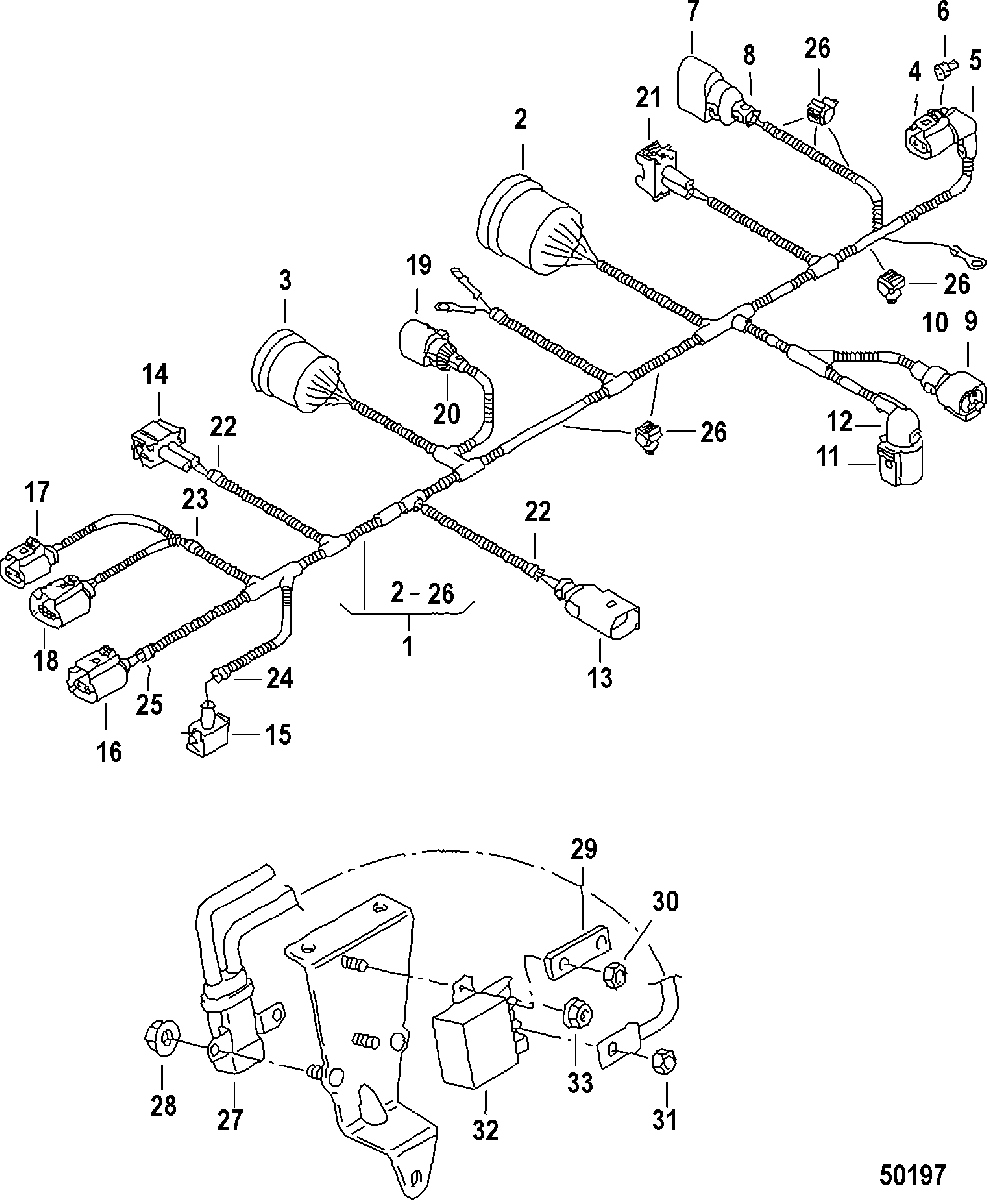

WIRING HARNESS, Engine для Mercruiser - 2.5L SDI 75 I5 ANF001003 & Up
-
№АртикулНазвание
-
184-8M0067187 WIRING HARNESSWIRING HARNESS
-
286-8M0067133 CONNECTOR, 35 PinCONNECTOR, 35 Pin
-
386-8M0067152 CONNECTOR, 16 PinCONNECTOR, 16 Pin
-
486-8M0068027 CONNECTOR, 2 PinCONNECTOR, 2 Pin
-
58M0066263 CONNECTOR CAP, 3 PinCONNECTOR CAP, 3 Pin
-
68M0068009 PLUG, 5.6x7.8, GreenPLUG, 5.6x7.8, Green
-
786-8M0067525 CONNECTOR, 4 PinCONNECTOR, 4 Pin
-
88M0068038 CONNECTOR CAPCONNECTOR CAP
-
986-8M0068023 CONNECTOR, 4 PinCONNECTOR, 4 Pin
-
108M0067511 CONNECTOR CAPCONNECTOR CAP
-
1186-8M0067524 CONNECTOR, 2 Pin, BlackCONNECTOR, 2 Pin, Black
-
128M0068035 CONNECTOR CAP, 2 PINCONNECTOR CAP, 2 PIN
-
1386-8M0068024 CONNECTOR, 4 PinCONNECTOR, 4 Pin
-
148M0068006 CONNECTOR, 2 PinCONNECTOR, 2 Pin
-
1586-8M0068008 CONNECTOR, 1 PinCONNECTOR, 1 Pin
-
1686-8M0067524 CONNECTOR, 2 Pin, BlackCONNECTOR, 2 Pin, Black
-
1786-8M0067530 CONNECTOR, 2 PinCONNECTOR, 2 Pin
-
1886-8M0068019 CONNECTOR, 3 Pin, BlackCONNECTOR, 3 Pin, Black
-
1986-8M0067530 CONNECTOR, 2 PinCONNECTOR, 2 Pin
-
208M0067521 CONNECTOR CAPCONNECTOR CAP
-
2186-8M0066301 CONNECTOR, 2 PinCONNECTOR, 2 Pin
-
2222-8M0068457 FITTING, 4.5FITTING, 4.5
-
238M0068458 TAIL / END PIECE, 7.5TAIL / END PIECE, 7.5
-
248M0068459 TAIL / END PIECE, 13TAIL / END PIECE, 13
-
258M0068460 TAIL / END PIECE, 17TAIL / END PIECE, 17
-
2654-8M0068018 CLAMP, WIRE TIE, 4.5X200MMCLAMP, WIRE TIE, 4.5X200MM
-
NS8M0068483 TUBE, BULK 10mm, 5MTUBE, BULK 10mm, 5M
-
2784-8M0067195 WIRING HARNESSWIRING HARNESS
-
2811-8M0068354 NUT, M8NUT, M8
-
298M0067197 GROUND CABLEGROUND CABLE
-
3011-8M0068086 NUT, M6NUT, M6
-
3111-8M0068089 NUT, M6NUT, M6
-
328M0067541 RELAYRELAY
-
3311-8M0068164 NUT, M6NUT, M6
