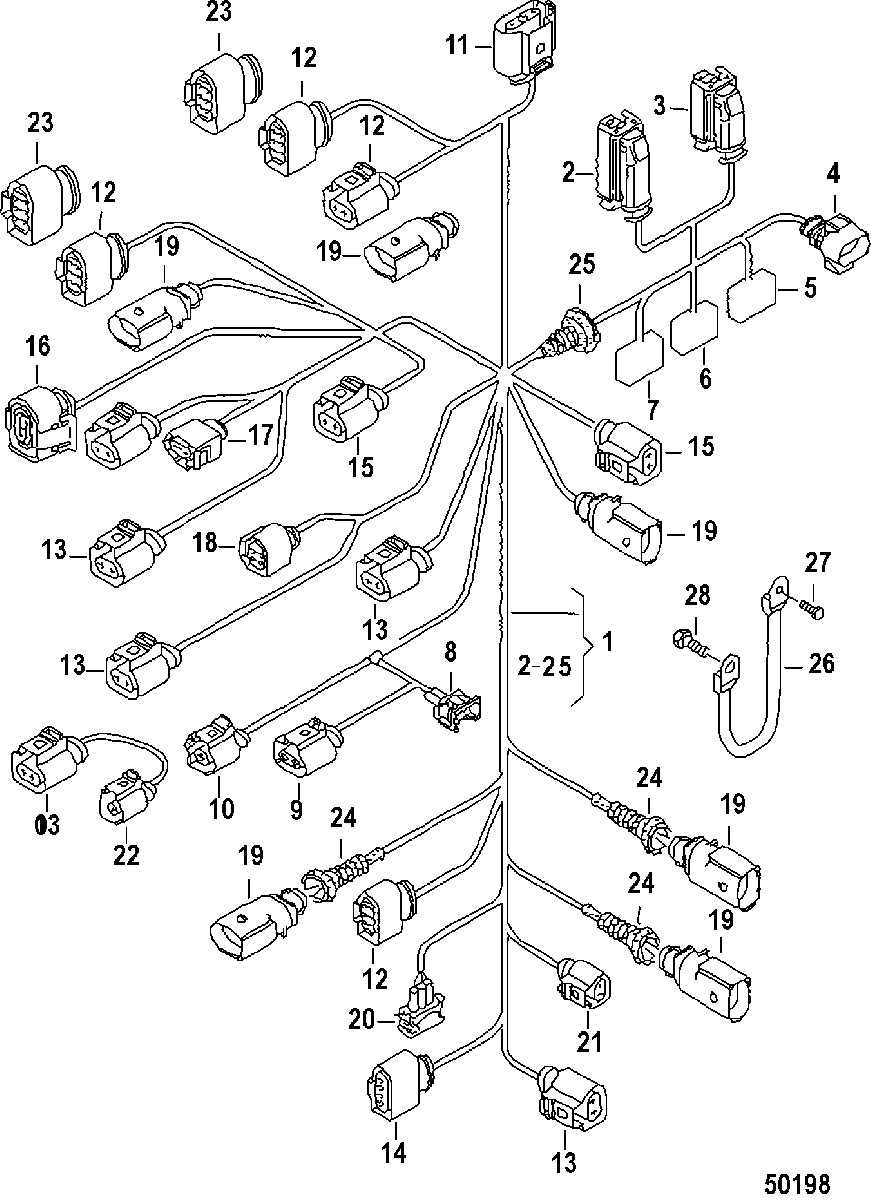

WIRING HARNESS, Engine для Mercruiser - 3.0L TDI 225 V6 BSP000904 & Up
-
№АртикулНазвание
-
184-8M0067380 WIRING HARNESS, BSP (100-225 HP)WIRING HARNESS, BSP (100-225 HP)
-
1NSS NOT SOLD SEPARATE, CEZA (230-265 HP)NOT SOLD SEPARATE, CEZA (230-265 HP)
-
286-8M0068014 CONNECTOR, 94 PinCONNECTOR, 94 Pin
-
386-8M0068013 CONNECTOR, 60 PinCONNECTOR, 60 Pin
-
486-8M0068011 CONNECTOR, 6 PinCONNECTOR, 6 Pin
-
5NSS NOT SOLD SEPARATE, 12 PinNOT SOLD SEPARATE, 12 Pin
-
6NSS NOT SOLD SEPARATE, 21 PinNOT SOLD SEPARATE, 21 Pin
-
7NSS NOT SOLD SEPARATE, 15 PinNOT SOLD SEPARATE, 15 Pin
-
886-8M0066301 CONNECTOR, 2 PinCONNECTOR, 2 Pin
-
986-8M0067526 CONNECTOR, 2 PinCONNECTOR, 2 Pin
-
1086-8M0067536 CONNECTOR, 1 PinCONNECTOR, 1 Pin
-
1186-8M0067527 CONNECTOR, 3 PinCONNECTOR, 3 Pin
-
1286-8M0067528 CONNECTOR, 6 PinCONNECTOR, 6 Pin
-
1386-8M0067524 CONNECTOR, 2 PinCONNECTOR, 2 Pin
-
1486-8M0067525 CONNECTOR, 4 Pin
BSPCONNECTOR, 4 Pin
BSP -
1486-8M0067525 CONNECTOR, 4 Pin
CEZACONNECTOR, 4 Pin
CEZA -
1486-8M0067526 CONNECTOR, 2 Pin
CEZACONNECTOR, 2 Pin
CEZA -
1586-8M0068027 CONNECTOR, 2 PinCONNECTOR, 2 Pin
-
1686-8M0068010 CONNECTOR, 6 PinCONNECTOR, 6 Pin
-
1786-8M0068029 CONNECTOR, 3 PinCONNECTOR, 3 Pin
-
1886-8M0068023 CONNECTOR, 4 PinCONNECTOR, 4 Pin
-
1986-8M0067531 CONNECTOR, 2 PinCONNECTOR, 2 Pin
-
2086-8M0068019 CONNECTOR, 3 PinCONNECTOR, 3 Pin
-
2186-8M0068027 CONNECTOR, 2 PinCONNECTOR, 2 Pin
-
2286-8M0067523 CONNECTOR, 1 PinCONNECTOR, 1 Pin
-
2386-8M0067528 CONNECTOR, 6 PinCONNECTOR, 6 Pin
-
NS8M0068009 PLUG, 5.6x7.8PLUG, 5.6x7.8
-
248M0068036 GROMMET, 11.9X53GROMMET, 11.9X53
-
258M0068040 GROMMETGROMMET
-
268M0067381 GROUND CABLEGROUND CABLE
-
2710-8M0141555 SCREW , M5x20SCREW , M5x20
-
2810-8M0068475 SCREW , M8x12SCREW , M8x12
