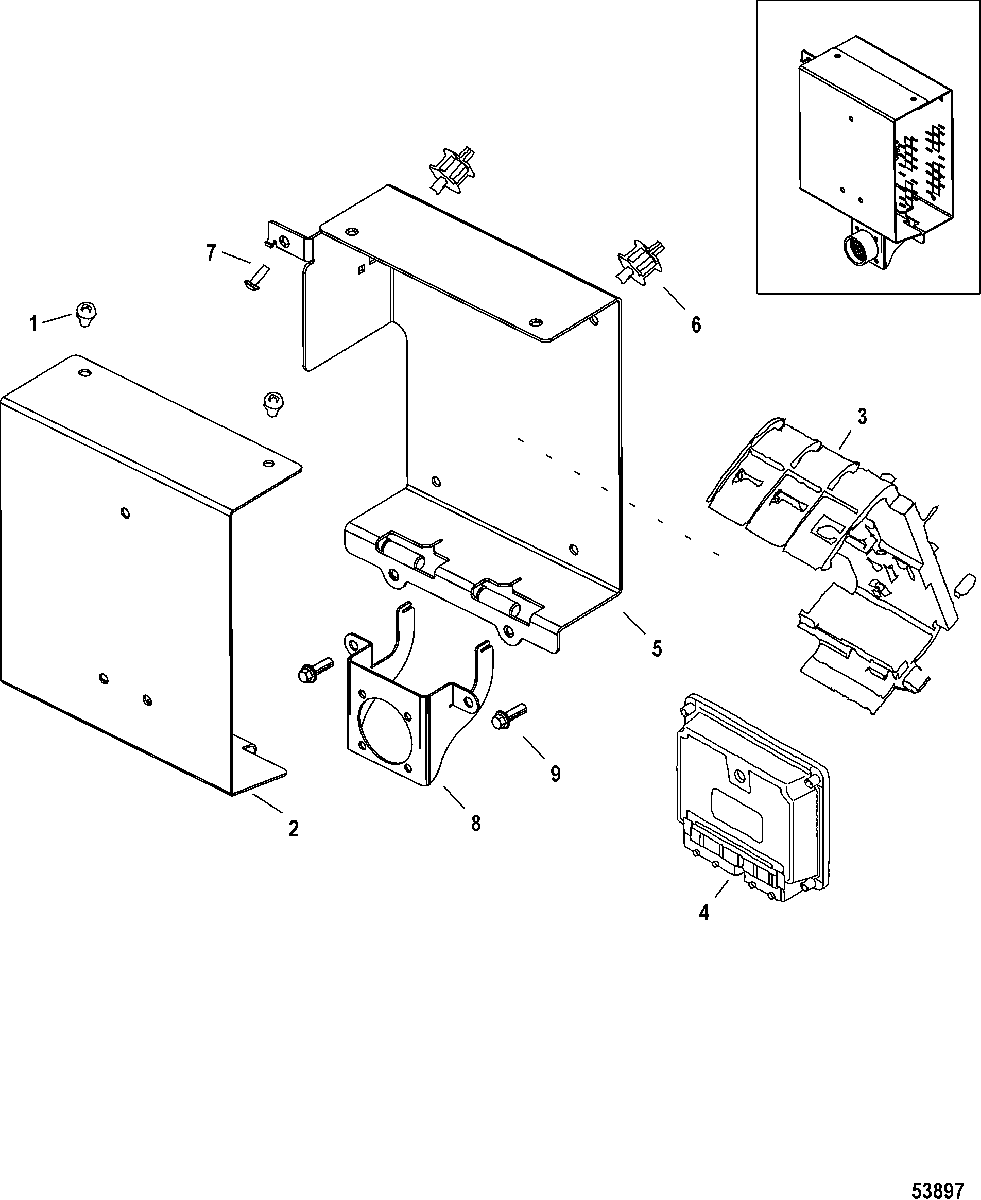

ELECTRICAL для Mercruiser - 3.0L TDI 230 IB ALL & Up
-
№АртикулНазвание
-
NS8M0083072 BRACKET, E-BOXBRACKET, E-BOX
-
18M0068299 SCREW , M6x12SCREW , M6x12
-
28M0054252 BRACKETBRACKET
-
38M0085678 BRACKET, ECMBRACKET, ECM
-
477-8M0086295 ECM, 100 HPECM, 100 HP
-
48M0101208 ECM, 150 HPECM, 150 HP
-
477-8M0086296 ECM, 225 HPECM, 225 HP
-
477-8M0086297 ECM, 230 HPECM, 230 HP
-
477-8M0086298 ECM, 260 HPECM, 260 HP
-
NS8M0090155 CONNECTOR, ECM HousingCONNECTOR, ECM Housing
-
58M0093831 BASE PLATEBASE PLATE
-
68M0091766 VIBRATION ISOLATORVIBRATION ISOLATOR
-
NS11-8M0068163 NUT, M6NUT, M6
-
710-8M0083075 SCREW, M6X16SCREW, M6X16
-
8NSS NOT SOLD SEPARATE, BracketNOT SOLD SEPARATE, Bracket
-
98M0090116 SCREW, HexSCREW, Hex
