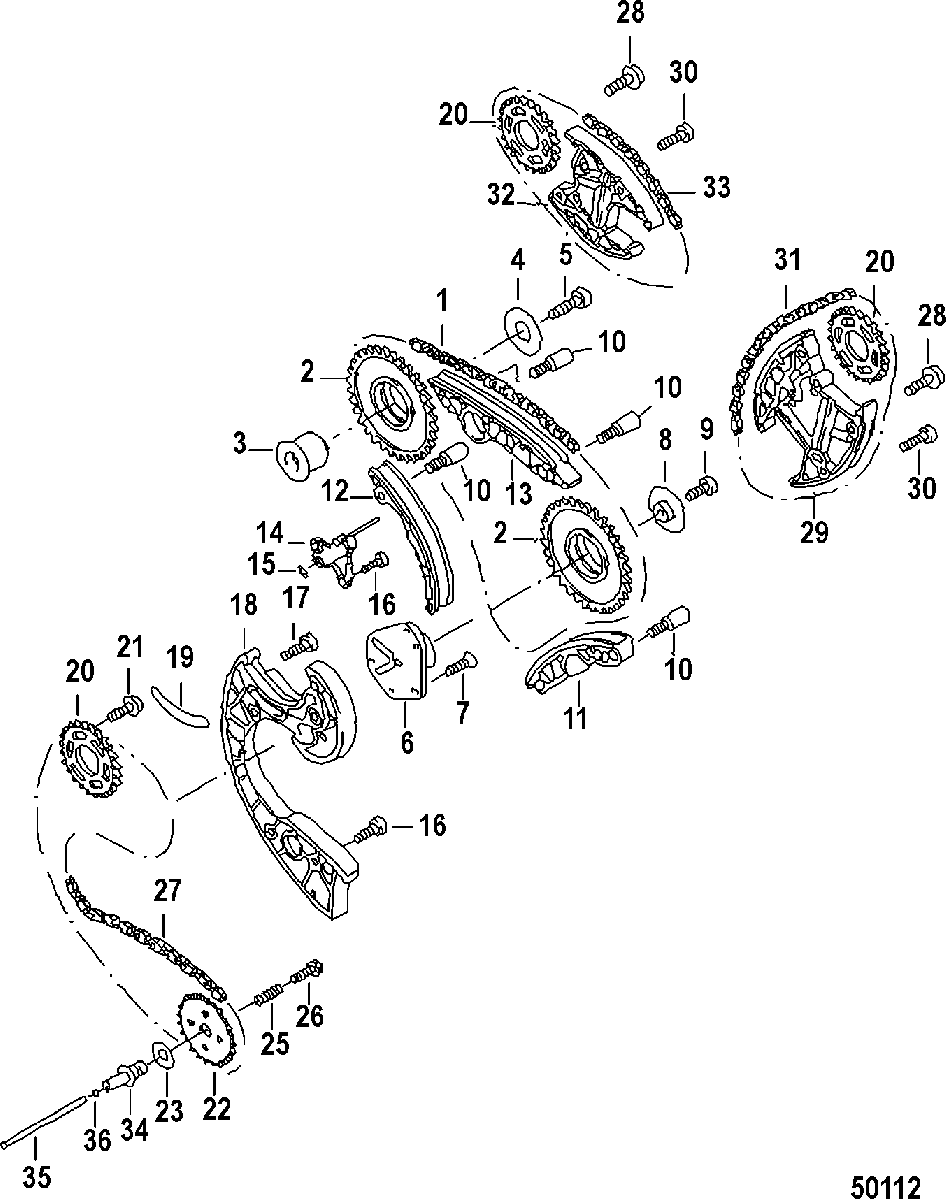

TIMING CHAIN AND SLIDE RAIL для Mercruiser - 3.0L TDI 230 V6 CEZ000201 & Up
-
№АртикулНазвание
-
18M0066610 TIMING CHAIN, Center UpperTIMING CHAIN, Center Upper
-
243-8M0066594 GEAR , 19 ToothGEAR , 19 Tooth
-
38M0066461 PIN, BearingPIN, Bearing
-
423-8M0068568 THRUST WASHERTHRUST WASHER
-
510-8M0068369 SCREW , M10x40SCREW , M10x40
-
68M0066460 PIN, Bearing, LeftPIN, Bearing, Left
-
710-8M0068510 SCREWSCREW
-
823-8M0067482 THRUST WASHER, Center UpperTHRUST WASHER, Center Upper
-
910-8M0068314 SCREW , M6x16SCREW , M6x16
-
1010-8M0068569 SCREW , M6x35SCREW , M6x35
-
118M0066622 GUIDEGUIDE
-
128M0067486 SLIDE RAIL, Center UpperSLIDE RAIL, Center Upper
-
138M0066621 GUIDEGUIDE
-
148M0067483 TENSIONER CHAIN
SN# Start THRU June 2, 2008TENSIONER CHAIN
SN# Start THRU June 2, 2008 -
148M0066620 TENSIONER CHAIN
SN# June 3, 2008 THRU CurrentTENSIONER CHAIN
SN# June 3, 2008 THRU Current -
1526-8M0068448 SEAL , 5x1.5SEAL , 5x1.5
-
1610-8M0068223 SCREW , M6x20SCREW , M6x20
-
1710-8M0068342 SCREW , M6x35SCREW , M6x35
-
188M0067485 TENSIONER CHAIN
BSPTENSIONER CHAIN
BSP -
188M0066624 TENSIONER
CEZATENSIONER
CEZA -
1927-8M0067478 GASKET , Center LowerGASKET , Center Lower
-
2043-8M0066453 GEAR , 25 ToothGEAR , 25 Tooth
-
2110-8M0068541 SCREWSCREW
-
2243-8M0067490 GEAR , 25 ToothGEAR , 25 Tooth
-
2323-8M0066190 THRUST WASHERTHRUST WASHER
-
2524-8M0066623 SPRING, PressureSPRING, Pressure
-
2610-8M0068501 SCREW , M10x20SCREW , M10x20
-
278M0067479 TIMING CHAIN, Center Lower
BSPTIMING CHAIN, Center Lower
BSP -
278M0067245 TIMING CHAIN, Center Lower
CEZATIMING CHAIN, Center Lower
CEZA -
2810-8M0068543 SCREW , M8x12SCREW , M8x12
-
298M0066608 TENSIONER CHAIN, LeftTENSIONER CHAIN, Left
-
3010-8M0068233 SCREW , M6x30SCREW , M6x30
-
318M0066612 TIMING CHAINTIMING CHAIN
-
328M0066459 TENSIONER CHAIN, RightTENSIONER CHAIN, Right
-
338M0066611 TIMING CHAIN, RightTIMING CHAIN, Right
-
348M0066616 PROPSHAFTPROPSHAFT
-
358M0066633 PROPSHAFTPROPSHAFT
-
368M0068380 RING , SecuringRING , Securing
