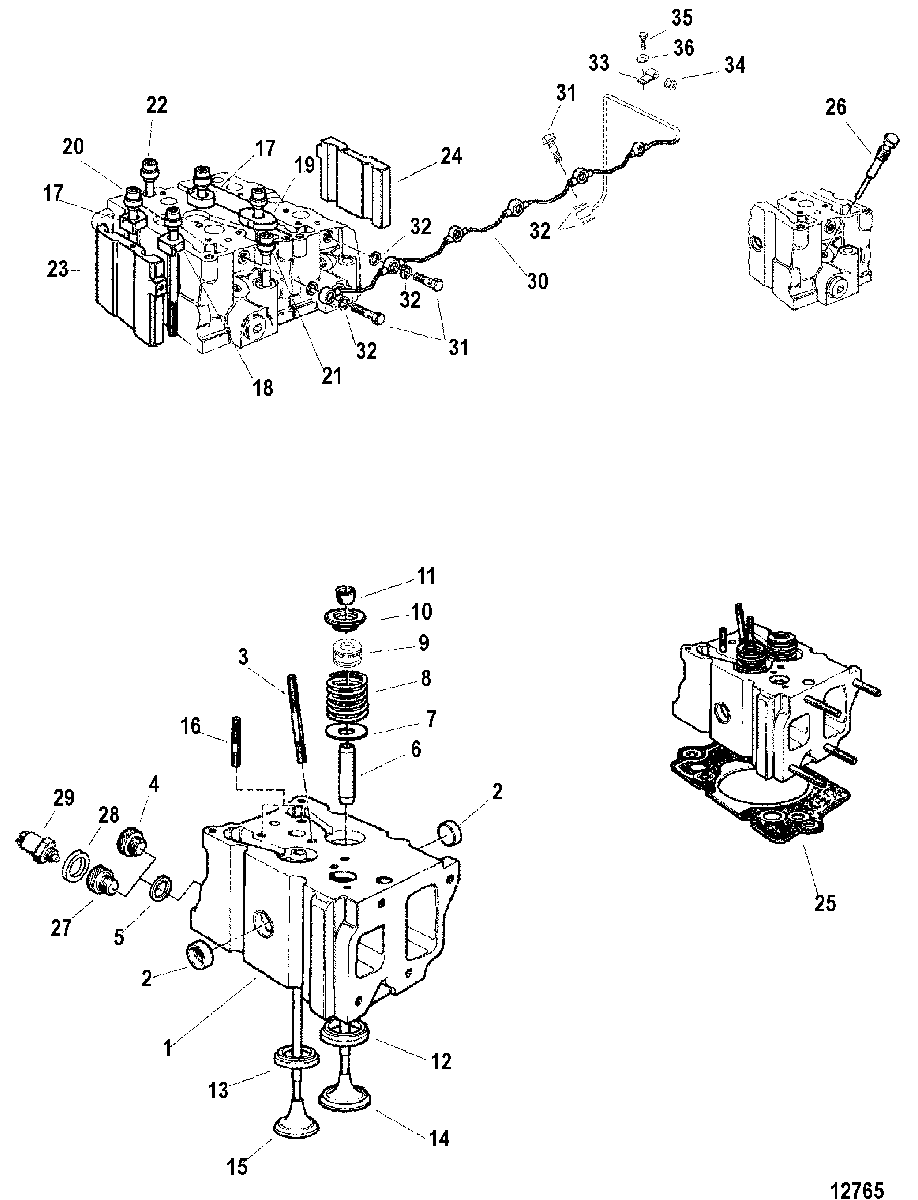

Cylinder Head для Mercruiser - CMD 4.2 EI 300 VM 254 I/L6 88050001 THRU 88050643
-
№АртикулНазвание
-
18M0116382 CYLINDER HEAD ASSEMBLYCYLINDER HEAD ASSEMBLY
-
219-889855 PLUG, ExpansionPLUG, Expansion
-
316-879288279 STUD, (M8 x 60)STUD, (M8 x 60)
-
410-879148010 PLUGPLUG
-
525-809963342 O-RINGO-RING
-
6854070 VALVE GUIDE, StandardVALVE GUIDE, Standard
-
7801331752 PLATE, SpringPLATE, Spring
-
824-8M0116896 SPRING, ValveSPRING, Valve
-
926-854068 SEAL, OilSEAL, Oil
-
10801331754 CAP, SpringCAP, Spring
-
11801331755 KEEPER, ValveKEEPER, Valve
-
12854071 SEAT, Intake ValveSEAT, Intake Valve
-
13854072 SEAT, Exhaust ValveSEAT, Exhaust Valve
-
14854073001 VALVE, IntakeVALVE, Intake
-
15854074 VALVE, ExhaustVALVE, Exhaust
-
1616-854075 STUD, (M8 x 35)STUD, (M8 x 35)
-
17801331671 BRIDGE, Manifold SideBRIDGE, Manifold Side
-
18801331673 BRIDGE, EndBRIDGE, End
-
19801331674 BRIDGE, IntermediateBRIDGE, Intermediate
-
2010-8M0058844 BOLT, (M14 x 149.5), CenterBOLT, (M14 x 149.5), Center
-
2110-8M0057699 BOLT, (M12 x 94.5), Injector SideBOLT, (M12 x 94.5), Injector Side
-
2210-8M0057732 BOLT, (M12 x 127.5), Manifold SideBOLT, (M12 x 127.5), Manifold Side
-
2323-881746 SPACERSPACER
-
2423-881746 SPACERSPACER
-
2527-8M0098620 GASKET, (1.42 mm), Front GasketGASKET, (1.42 mm), Front Gasket
-
258M0094378 GASKET, (1.52 mm), Front GasketGASKET, (1.52 mm), Front Gasket
-
2527-8M0098621 GASKET, (1.62 mm), Front GasketGASKET, (1.62 mm), Front Gasket
-
2527-898101480 GASKET, (1.42 mm), Rear GasketGASKET, (1.42 mm), Rear Gasket
-
2527-898101481 GASKET, (1.52 mm), Rear GasketGASKET, (1.52 mm), Rear Gasket
-
2527-898101482 GASKET, (1.62 mm), Rear GasketGASKET, (1.62 mm), Rear Gasket
-
2619-854080 PLUG, GlowPLUG, Glow
-
2633-802737 GLOW PLUG KITGLOW PLUG KIT
-
2722-880819 ADAPTOR
(SINGLE STATION TEMP SENDER)ADAPTOR
(SINGLE STATION TEMP SENDER) -
2722-52382 BUSHING
(DUAL STATION TEMP SENDER)BUSHING
(DUAL STATION TEMP SENDER) -
2722-896332018 ADAPTOR
(ECT SENSOR)ADAPTOR
(ECT SENSOR) -
2825-809963129 WASHER
(WATER TEMPERATURE SENDER)WASHER
(WATER TEMPERATURE SENDER) -
2825-809963129 WASHER
(ECT SENSOR)WASHER
(ECT SENSOR) -
29880820 SENDER
(SINGLE STATION)(WATER TEMPERATURE SENDER)SENDER
(SINGLE STATION)(WATER TEMPERATURE SENDER) -
2949734 SENDER
(DUAL STATION)(WATER TEMPERATURE SENDER)SENDER
(DUAL STATION)(WATER TEMPERATURE SENDER) -
2987-854081 SENSOR
(ECT SENSOR)SENSOR
(ECT SENSOR) -
3032-889856 LINE, OilLINE, Oil
-
3110-811394 BOLT, BanjoBOLT, Banjo
-
3225-809963042 O-RINGO-RING
-
3354-801333424 CLIPCLIP
-
3425-855459 SLEEVE, RubberSLEEVE, Rubber
-
3510-809913218 SCREW, (M5 x 10)SCREW, (M5 x 10)
-
3612-809931036 WASHERWASHER
-
-27-898272016 GASKET SET, OverhaulGASKET SET, Overhaul
