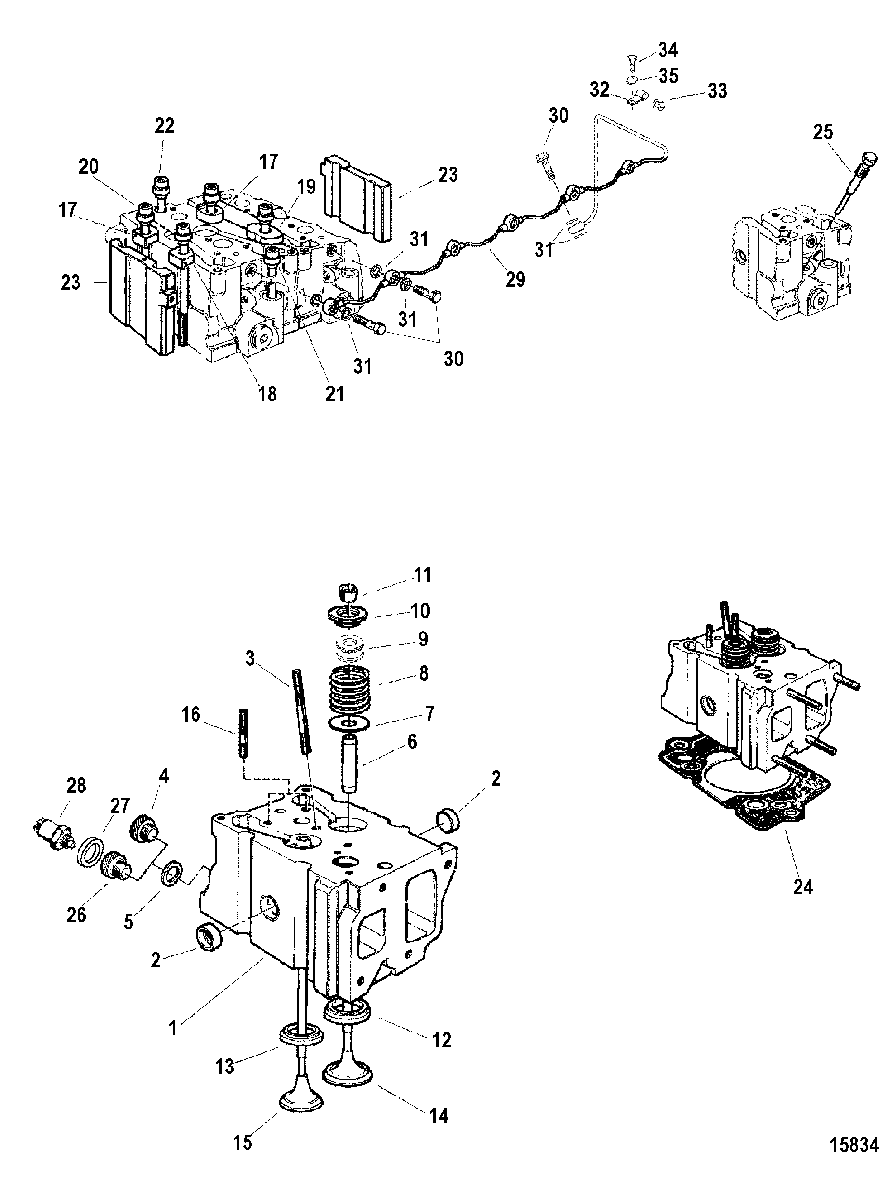

Cylinder Head для Mercruiser - CMD 4.2 MI 230 88030001 THRU 88030344
-
№АртикулНазвание
-
18M0116382 CYLINDER HEAD ASSEMBLYCYLINDER HEAD ASSEMBLY
-
219-811389 PLUGPLUG
-
316-879288279 STUD, (M8 x 60)STUD, (M8 x 60)
-
410-879148010 PLUGPLUG
-
525-809963342 O-RINGO-RING
-
6854070 VALVE GUIDE, StandardVALVE GUIDE, Standard
-
7801331752 PLATE, SpringPLATE, Spring
-
824-8M0116896 SPRINGSPRING
-
926-854068 SEAL, OilSEAL, Oil
-
10801331754 CAP, SpringCAP, Spring
-
11801331755 KEEPERKEEPER
-
12854071 SEAT, IntakeSEAT, Intake
-
13854072 SEAT, ExhaustSEAT, Exhaust
-
14854073001 VALVEVALVE
-
15854074 VALVE, ExhaustVALVE, Exhaust
-
1616-854075 STUD, (M8 x 35)STUD, (M8 x 35)
-
17801331671 BRIDGEBRIDGE
-
18801331673 BRIDGEBRIDGE
-
19801331674 BRIDGEBRIDGE
-
2010-8M0058844 BOLT, (M14 x 149.5), CenterBOLT, (M14 x 149.5), Center
-
2110-8M0057699 BOLT, (M12 x 94.5), Injector SideBOLT, (M12 x 94.5), Injector Side
-
2210-8M0057732 BOLT, (M12 x 127.5), Manifold SideBOLT, (M12 x 127.5), Manifold Side
-
2323-881746 SPACERSPACER
-
2427-8M0098620 GASKET, (1.42 mm)GASKET, (1.42 mm)
-
248M0094378 GASKET, (1.52 mm)GASKET, (1.52 mm)
-
2427-8M0098621 GASKET, (1.62 mm)GASKET, (1.62 mm)
-
2427-898101480 GASKET, (1.42 mm)GASKET, (1.42 mm)
-
2427-898101481 GASKET, (1.52 mm)GASKET, (1.52 mm)
-
2427-898101482 GASKET, (1.62 mm)GASKET, (1.62 mm)
-
2519-854080 PLUGPLUG
-
2533-883874 GLOW PLUG KITGLOW PLUG KIT
-
2622-880819 ADAPTOR, WATER TEMPERATURE SENDERADAPTOR, WATER TEMPERATURE SENDER
-
2622-52382 BUSHING, Water Temperature Sender
(DUAL STATION)BUSHING, Water Temperature Sender
(DUAL STATION) -
2622-880819 ADAPTORADAPTOR
-
2725-809963129 WASHER, Water Temperature SenderWASHER, Water Temperature Sender
-
28880820 SENDER, Water Temperature
(SINGLE STATION)SENDER, Water Temperature
(SINGLE STATION) -
2849734 SENDER, Water Temperature
(DUAL STATION)SENDER, Water Temperature
(DUAL STATION) -
2887-881748 SENDER, Water Temperature
(KSB)SENDER, Water Temperature
(KSB) -
2932-854065 LINE, OilLINE, Oil
-
3010-811394 BOLT, BanjoBOLT, Banjo
-
3125-809963042 O-RINGO-RING
-
3254-801333424 CLIPCLIP
-
3325-855459 SLEEVESLEEVE
-
3410-809913218 SCREW, (M5 x 10)SCREW, (M5 x 10)
-
3512-809931036 WASHERWASHER
-
-27-898272016 GASKET SET, OverhaulGASKET SET, Overhaul
-
-27-898272018 GASKET SET, Cylinder HeadGASKET SET, Cylinder Head
