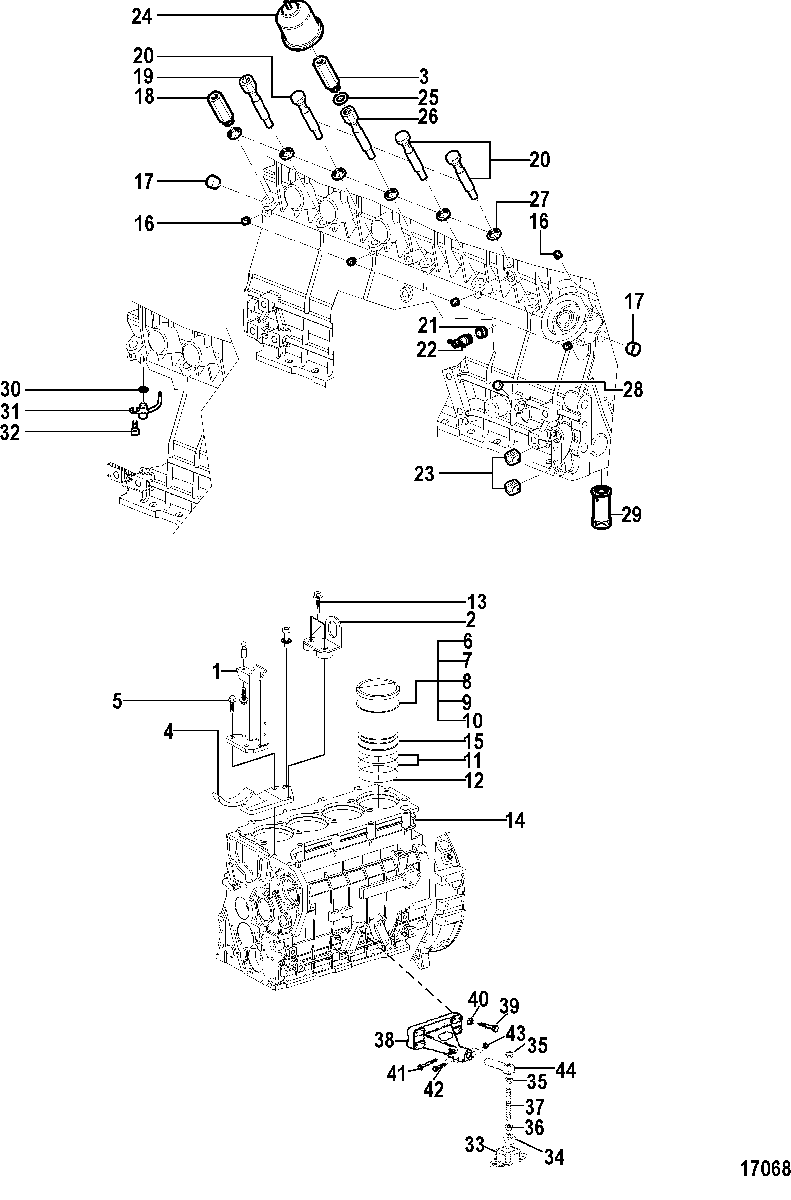

Engine and Cylinder Block для Mercruiser - CMD 4.2 MI 230 88030400 THRU 88040000
-
№АртикулНазвание
-
1898272055 BRACKETBRACKET
-
2898272056 BRACKETBRACKET
-
3898272057 ADAPTORADAPTOR
-
4884002 BRACKETBRACKET
-
510-898101565 BOLTBOLT
-
615-801331607 SHIM, (15 mm)SHIM, (15 mm)
-
715-896332032 SHIM, (.17 mm)SHIM, (.17 mm)
-
815-801331608 SHIM, (20 mm)SHIM, (20 mm)
-
915-801763362 SHIM, (23 mm)SHIM, (23 mm)
-
1015-896332033 SHIM, (.25 mm)SHIM, (.25 mm)
-
1125-817728 O-RINGO-RING
-
1225-817729 O-RINGO-RING
-
1310-898101566 BOLTBOLT
-
14889-889505 CYLINDER BLOCKCYLINDER BLOCK
-
1551-889857 CYLINDER LINERCYLINDER LINER
-
1610-811431 SET SCREW, (M6 x 3)SET SCREW, (M6 x 3)
-
1719-801331602 PLUGPLUG
-
1822-855463 ADAPTORADAPTOR
-
1910-801331651 SCREWSCREW
-
2010-801331650 SCREWSCREW
-
2122-811428 SLEEVESLEEVE
-
2222-801331684 FITTINGFITTING
-
2319-898101767 PLUGPLUG
-
24805267T SENDER, PressureSENDER, Pressure
-
2512-881791 WASHERWASHER
-
2622-801763388 CONNECTORCONNECTOR
-
2712-889153 WASHERWASHER
-
28896332117 CORE PLUGCORE PLUG
-
29854041 VALVEVALVE
-
3025-896332120 O-RINGO-RING
-
3120-8M0058845 NOZZLENOZZLE
-
3210-898101465 BOLTBOLT
-
33879194475 MOUNT, Engine
(Engine Mount, Front)MOUNT, Engine
(Engine Mount, Front) -
3412-809931094 WASHER
(Engine Mount, Front)WASHER
(Engine Mount, Front) -
3511-809922457 NUT, (M16)
(Engine Mount, Front)NUT, (M16)
(Engine Mount, Front) -
3611-809921102 NUT, (M16)
(Engine Mount, Front)NUT, (M16)
(Engine Mount, Front) -
3716-801763908 STUD, (M16 x 125)
(Engine Mount, Front)STUD, (M16 x 125)
(Engine Mount, Front) -
38801761382 BRACKET
(Engine Mount, Front)BRACKET
(Engine Mount, Front) -
3910-898101567 SCREW, (M10 x 45)
(Engine Mount, Front)SCREW, (M10 x 45)
(Engine Mount, Front) -
3910-40001209 SCREW, (M10 x 60)
(Engine Mount, Front)SCREW, (M10 x 60)
(Engine Mount, Front) -
4013-879194382 LOCKWASHER
(Engine Mount, Front)LOCKWASHER
(Engine Mount, Front) -
4110-809912516 SCREW, (M8 x 50)
(Engine Mount, Front)SCREW, (M8 x 50)
(Engine Mount, Front) -
4210-801761617 SCREW
(Engine Mount, Front)SCREW
(Engine Mount, Front) -
4311-815088 NUT, (M8)
(Engine Mount, Front)NUT, (M8)
(Engine Mount, Front) -
44855382 PIN
(Engine Mount, Front)PIN
(Engine Mount, Front)
