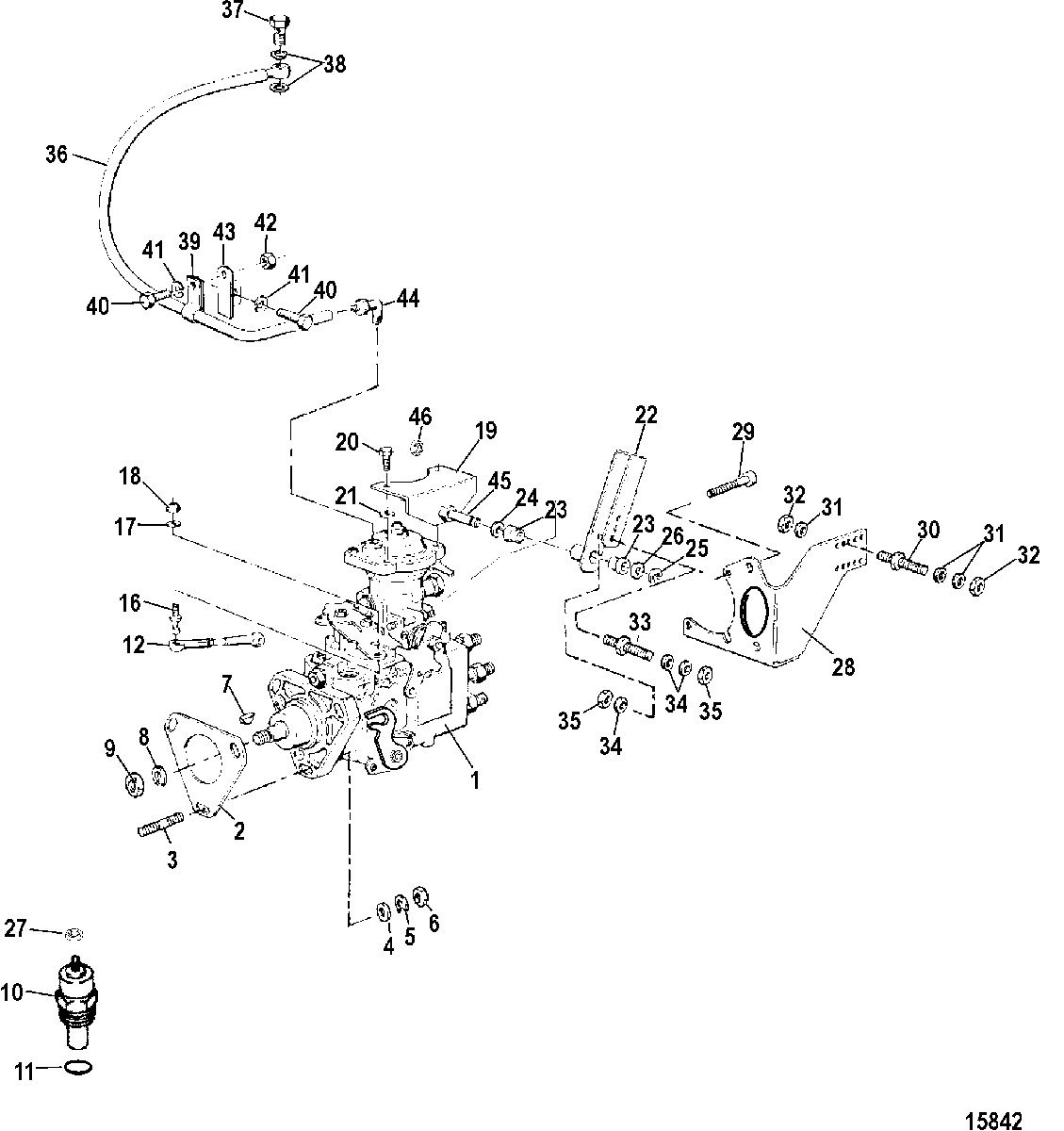

Injection Pump для Mercruiser - CMD 4.2 MS 230 88030001 THRU 88030344
-
№АртикулНазвание
-
1898272030 PUMP ASSEMBLY, Injection
(200)PUMP ASSEMBLY, Injection
(200) -
1895240 PUMP, Injection
(230)PUMP, Injection
(230) -
227-898101487 GASKETGASKET
-
316-811402 STUDSTUD
-
412-811409 WASHERWASHER
-
512-879194141 LOCKWASHER, (M8)LOCKWASHER, (M8)
-
611-854037 NUT, (M8)NUT, (M8)
-
728-811404 KEYKEY
-
813-8M0049895 LOCKWASHERLOCKWASHER
-
911-811403 NUTNUT
-
10811406 VALVE, Fuel Shut Off, Fuel Shut-OffVALVE, Fuel Shut Off, Fuel Shut-Off
-
1112-811407 WASHERWASHER
-
12801333856 ROD KIT, LinkROD KIT, Link
-
NS11-809922038 NUTNUT
-
1617-809987302 PIN, BallPIN, Ball
-
1712-809931036 WASHERWASHER
-
1811-809922410 NUTNUT
-
19801761674 BEARING, AngleBEARING, Angle
-
2010-8248327 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
2123-421581 BUSHINGBUSHING
-
22880838 LEVERLEVER
-
2323-801256320 BUSHINGBUSHING
-
2413-811460 LOCKWASHERLOCKWASHER
-
2513-809932646 LOCKWASHERLOCKWASHER
-
2653-809932852 E CLIPE CLIP
-
2711-809922038 NUTNUT
-
28898272041 SUPPORT, AngleSUPPORT, Angle
-
2910-801761847 SCREWSCREW
-
3016-38525 STUDSTUD
-
3112-24664 WASHER, (M4 x 20)WASHER, (M4 x 20)
-
3211-35888 NUT, (.250-28) Stainless SteelNUT, (.250-28) Stainless Steel
-
3316-8M0113178 STUD, (.250-28 x 2.00), Throttle Cable AnchorSTUD, (.250-28 x 2.00), Throttle Cable Anchor
-
3412-24664 WASHER, (M4 x 20)WASHER, (M4 x 20)
-
3511-35888 NUT, (.250-28) Stainless SteelNUT, (.250-28) Stainless Steel
-
3632-801763467 TUBE, Boost PressureTUBE, Boost Pressure
-
3710-801333874 SCREW, Banjo (M10)SCREW, Banjo (M10)
-
3812-881791 WASHERWASHER
-
3954-801761758 CLAMPCLAMP
-
4010-809913218 SCREW, (M5 x 10)SCREW, (M5 x 10)
-
4113-809932047 LOCKWASHERLOCKWASHER
-
4211-809922038 NUTNUT
-
43801761757 SUPPORTSUPPORT
-
4422-801333873 CONNECTORCONNECTOR
-
4510-801329200 SCREWSCREW
-
4611-815088 NUT, (M8)NUT, (M8)
