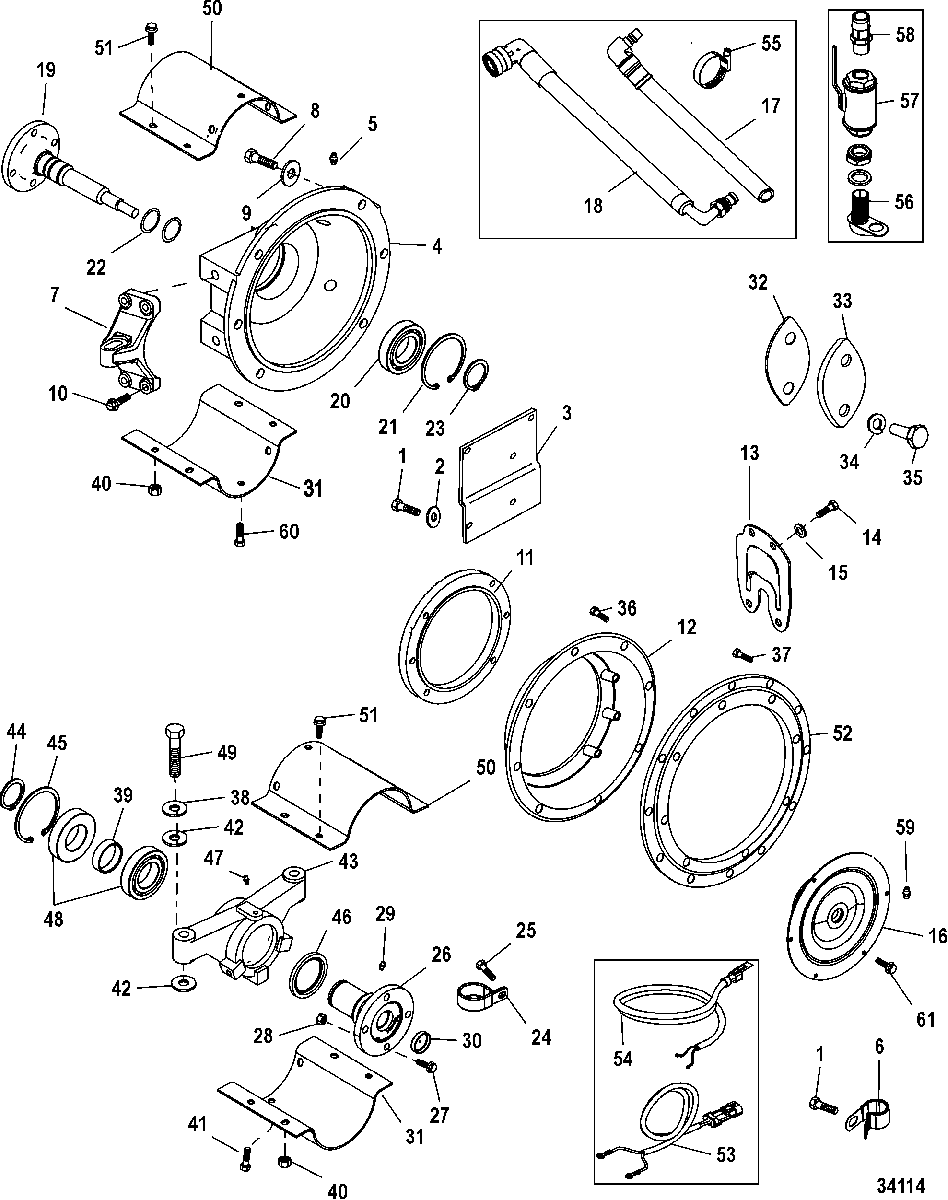

Jackshaft Components для Mercruiser - CMD QSD 2.8 ES 220 88300000 & Up
-
№АртикулНазвание
-
-806843A06 JACKSHAFT KITJACKSHAFT KIT
-
110-59784 SCREW, (.250-10 x 1.00)SCREW, (.250-10 x 1.00)
-
212-21249 WASHERWASHER
-
341063A1 BRACKET ASSEMBLYBRACKET ASSEMBLY
-
493911A4 HOUSING ASSEMBLY, Shaft Extension SupportHOUSING ASSEMBLY, Shaft Extension Support
-
522-74036 FITTING, Grease
(Use with greased bearing)FITTING, Grease
(Use with greased bearing) -
510-8M2015913 PLUG, (.250-28 x .320)
(Use with non-greased bearing)PLUG, (.250-28 x .320)
(Use with non-greased bearing) -
6NSS NOT SOLD SEPARATE, ClampNOT SOLD SEPARATE, Clamp
-
7896332035 BRACKETBRACKET
-
810-40001209 SCREW, (M10 x 60)SCREW, (M10 x 60)
-
913-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
1010-898101566 SCREWSCREW
-
1123-807065T PLATE, SpacerPLATE, Spacer
-
12881787 HOUSINGHOUSING
-
13861776A2 PLATE KITPLATE KIT
-
1410-8M0113180 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
1513-41471 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
1618311A21 COUPLERCOUPLER
-
1732-8M0063022 HOSE, Female Quick ConnectHOSE, Female Quick Connect
-
1832-865390134 HOSE, Male Quick ConnectHOSE, Male Quick Connect
-
1993906A2 SHAFTSHAFT
-
2030-879194A03 BEARING, BallBEARING, Ball
-
2153-94104 RING, RetainingRING, Retaining
-
2225-29845 O-RING, (.924 x .103)O-RING, (.924 x .103)
-
2353-8M0141818 RING, RetainingRING, Retaining
-
2454-62494 CLIPCLIP
-
2510-59784 SCREW, (.250-10 x 1.00)SCREW, (.250-10 x 1.00)
-
26817415T SHAFTSHAFT
-
2710-805159 SCREW, (.437-20 x 1.500)SCREW, (.437-20 x 1.500)
-
2811-82670815 NUT, (.437-20)NUT, (.437-20)
-
2922-74036 FITTING, GreaseFITTING, Grease
-
3019-93921 EXPANSION PLUGEXPANSION PLUG
-
3193918A1 SHIELD, LowerSHIELD, Lower
-
3227-818305 GASKETGASKET
-
338M0095447 BLOCK OFF KITBLOCK OFF KIT
-
3413-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
3510-28636 SCREW, (.250-20 x .750)SCREW, (.250-20 x .750)
-
3610-898101568 BOLTBOLT
-
3710-898101563 SCREWSCREW
-
3812-35777 WASHER, (.5156 x 1.375 x .125) AluminumWASHER, (.5156 x 1.375 x .125) Aluminum
-
3923-817417T SPACERSPACER
-
4011-32219 NUT, (.375-16)NUT, (.375-16)
-
4110-96995 SCREW, (.375-16 x .880)SCREW, (.375-16 x .880)
-
4212-42307 WASHERWASHER
-
43817416A4 HOUSING ASSEMBLYHOUSING ASSEMBLY
-
4453-93915 RING, RetainingRING, Retaining
-
4553-93914 RING, RetainingRING, Retaining
-
4626-93924 SEALSEAL
-
4722-74036 FITTING, GreaseFITTING, Grease
-
4830-93944A2 BEARING SET, BallBEARING SET, Ball
-
4910-57053 SCREW, (.500-20 x 4.500)SCREW, (.500-20 x 4.500)
-
5093919A1 SHIELD, UpperSHIELD, Upper
-
5110-96995 SCREW, (.375-16 x .880)SCREW, (.375-16 x .880)
-
52879194T42 SPACERSPACER
-
5384-8M2100127 HARNESS ASSEMBLY, MercathodeHARNESS ASSEMBLY, Mercathode
-
5484-8M2012384 CABLE ASSEMBLYCABLE ASSEMBLY
-
5554-815504210 CLAMP, Worm Gear (16-27 mm)CLAMP, Worm Gear (16-27 mm)
-
5622-818170A2 FITTINGFITTING
-
5720-818171T VALVEVALVE
-
5822-818172 CONNECTORCONNECTOR
-
5922-49099 FITTINGFITTING
-
6010-76926 SCREW, (.375-16 x .875)SCREW, (.375-16 x .875)
-
6110-35386 SCREW, (.312-18 x 1.00)SCREW, (.312-18 x 1.00)
