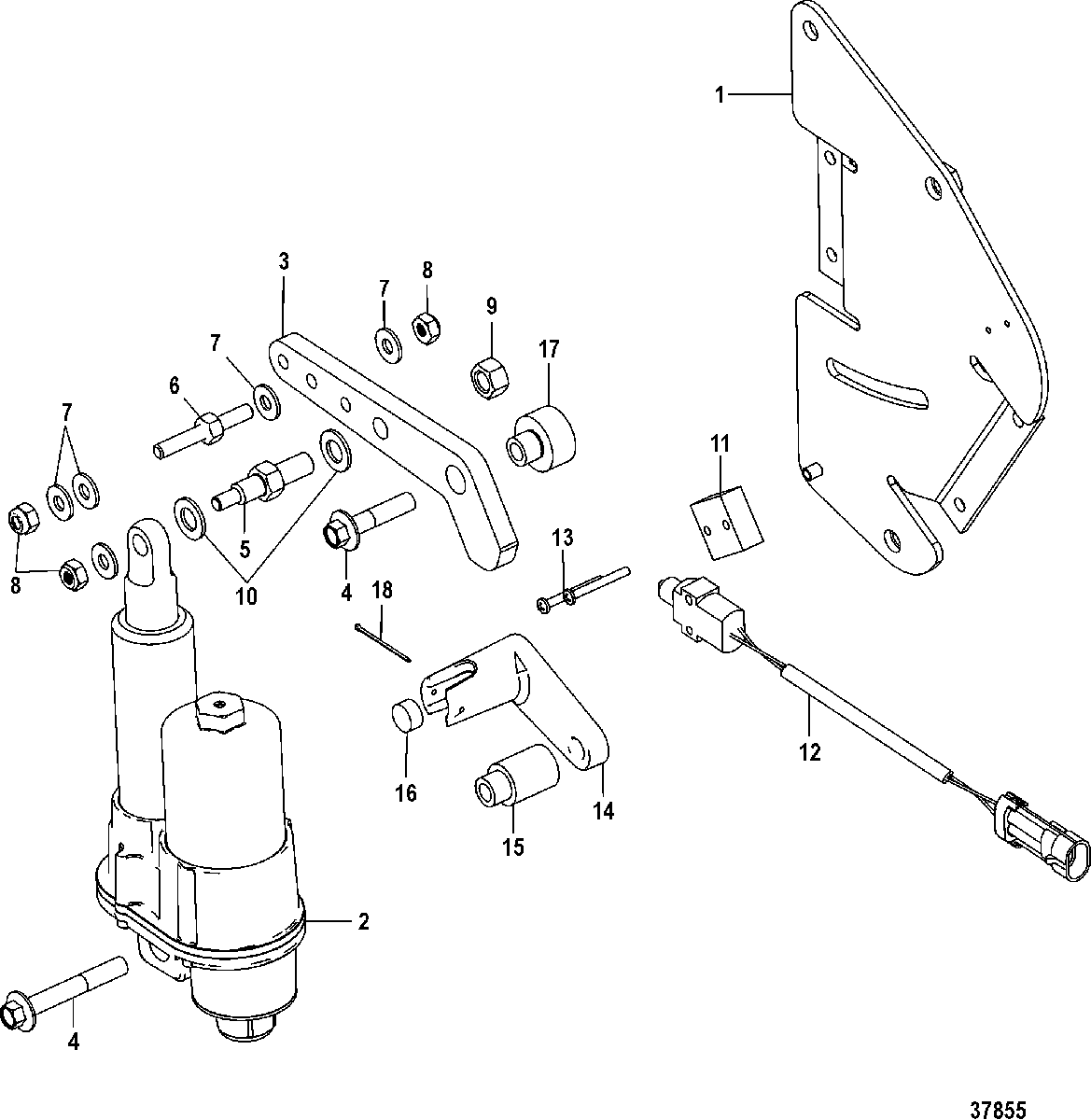

Shift Actuator, Digital Throttle and Shift для Mercruiser - CMD QSD 4.2 EI 320 88405000 THRU 88416999
-
№АртикулНазвание
-
-8M0111459 SHIFT ACTUATOR ASSEMBLYSHIFT ACTUATOR ASSEMBLY
-
1879312T27 BRACKET, ShiftBRACKET, Shift
-
2879194T46 SHIFT ACTUATORSHIFT ACTUATOR
-
38M2018371 LEVERLEVER
-
410-4010735 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
516-864361 STUDSTUD
-
616-8M0113178 STUD, (.250-28 x 2.00)STUD, (.250-28 x 2.00)
-
712-35462 WASHER, (.2656 x .625 x .0625) Stainless SteelWASHER, (.2656 x .625 x .0625) Stainless Steel
-
811-826709109 NUT, (.250-28) Stainless SteelNUT, (.250-28) Stainless Steel
-
911-46335 NUT, (.375-24)NUT, (.375-24)
-
1012-34931 WASHER, (.406 x .734 x .063) Stainless SteelWASHER, (.406 x .734 x .063) Stainless Steel
-
1123-864386 SPACERSPACER
-
1287-8M0052939 SWITCHSWITCH
-
1310-865076 SCREW, (6-32 x 1.25)SCREW, (6-32 x 1.25)
-
14864616 RETAINERRETAINER
-
1523-863133 SPACERSPACER
-
1623-98828 SPACERSPACER
-
1723-863132 SPACERSPACER
-
1818-36002 COTTER PINCOTTER PIN
-
-92-86166Q1 GLUEGLUE
