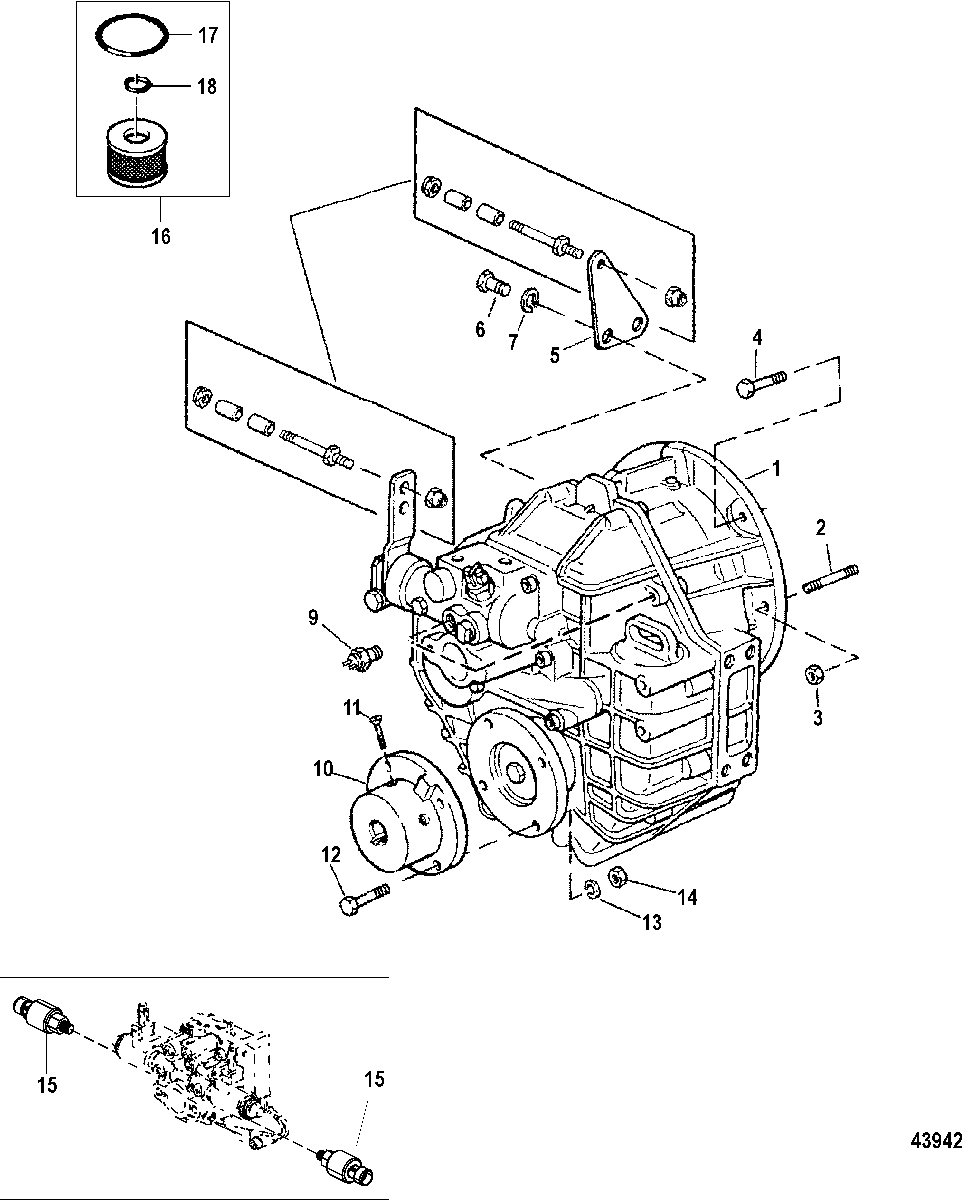

Transmission and Related Parts(INBOARD) для Mercruiser - CMD QSD 4.2 ES 320 88406000 THRU 88415999
-
№АртикулНазвание
-
1863744T2 TRANSMISSION, (1.5:1 Ratio), Down Angle
Mechanical ShiftTRANSMISSION, (1.5:1 Ratio), Down Angle
Mechanical Shift -
1863744T3 TRANSMISSION, (2.0:1 Ratio), Down Angle
Mechanical ShiftTRANSMISSION, (2.0:1 Ratio), Down Angle
Mechanical Shift -
1863744T4 TRANSMISSION, (2.50:1 Ratio), Down Angle
Mechanical ShiftTRANSMISSION, (2.50:1 Ratio), Down Angle
Mechanical Shift -
1863745T2 TRANSMISSION, (1.5:1 Ratio), V Drive
Mechanical ShiftTRANSMISSION, (1.5:1 Ratio), V Drive
Mechanical Shift -
1863745T3 TRANSMISSION, (2.0:1 Ratio), V Drive
Mechanical ShiftTRANSMISSION, (2.0:1 Ratio), V Drive
Mechanical Shift -
1863745T4 TRANSMISSION, (2.5:1 Ratio), V Drive
Mechanical ShiftTRANSMISSION, (2.5:1 Ratio), V Drive
Mechanical Shift -
1865703T02 TRANSMISSION, (1.5:1 Ratio), Down Angle
Electric ShiftTRANSMISSION, (1.5:1 Ratio), Down Angle
Electric Shift -
1865703T03 TRANSMISSION, (2.0:1 Ratio), Down Angle
Electric ShiftTRANSMISSION, (2.0:1 Ratio), Down Angle
Electric Shift -
1865703T04 TRANSMISSION, (2.50:1 Ratio), Down Angle
Electric ShiftTRANSMISSION, (2.50:1 Ratio), Down Angle
Electric Shift -
1865704T02 TRANSMISSION, (1.5:1 Ratio), V Drive
Electric ShiftTRANSMISSION, (1.5:1 Ratio), V Drive
Electric Shift -
1865704T03 TRANSMISSION, (2.0:1 Ratio), V Drive
Electric ShiftTRANSMISSION, (2.0:1 Ratio), V Drive
Electric Shift -
1865704T04 TRANSMISSION, (2.5:1 Ratio), V Drive
Electric ShiftTRANSMISSION, (2.5:1 Ratio), V Drive
Electric Shift -
216-910002 STUDSTUD
-
311-809922113 NUTNUT
-
410-809913837 SCREWSCREW
-
5806238 BRACKETBRACKET
-
610-809919969 SCREWSCREW
-
713-400247 LOCKWASHER, (M8)LOCKWASHER, (M8)
-
816-97477A3 STUD KITSTUD KIT
-
987-88031 SWITCH ASSEMBLYSWITCH ASSEMBLY
-
1079476A1 FLANGE ASSEMBLY, (5.00 x 1.00)FLANGE ASSEMBLY, (5.00 x 1.00)
-
1079476A3 FLANGE ASSEMBLY, (5.00 x 1.25)FLANGE ASSEMBLY, (5.00 x 1.25)
-
1079476A4 FLANGE ASSEMBLY, (5.00 x 1.375)FLANGE ASSEMBLY, (5.00 x 1.375)
-
1079476A5 FLANGE ASSEMBLY, (5.00 x 1.50)FLANGE ASSEMBLY, (5.00 x 1.50)
-
1079476A6 FLANGE ASSEMBLY, (5.00 x 1.75)FLANGE ASSEMBLY, (5.00 x 1.75)
-
1110-60171 SCREW, (.375-16 x 1.250)SCREW, (.375-16 x 1.250)
-
1110-60169 SCREW, (.375-16 x .750)SCREW, (.375-16 x .750)
-
1210-805159 SCREW, (.437-20 x 1.500)SCREW, (.437-20 x 1.500)
-
1313-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
1411-22024 NUT, (.437-14)NUT, (.437-14)
-
15865664 PRESSURE TRANSDUCER, 500 PSIPRESSURE TRANSDUCER, 500 PSI
-
168M0034249 SOLENOIDSOLENOID
-
1735-879194241 FLUID FILTER KITFLUID FILTER KIT
-
1825-813407 O-RINGO-RING
-
1925-813406 O-RINGO-RING
-
-877523 VALVE, TrollingVALVE, Trolling
