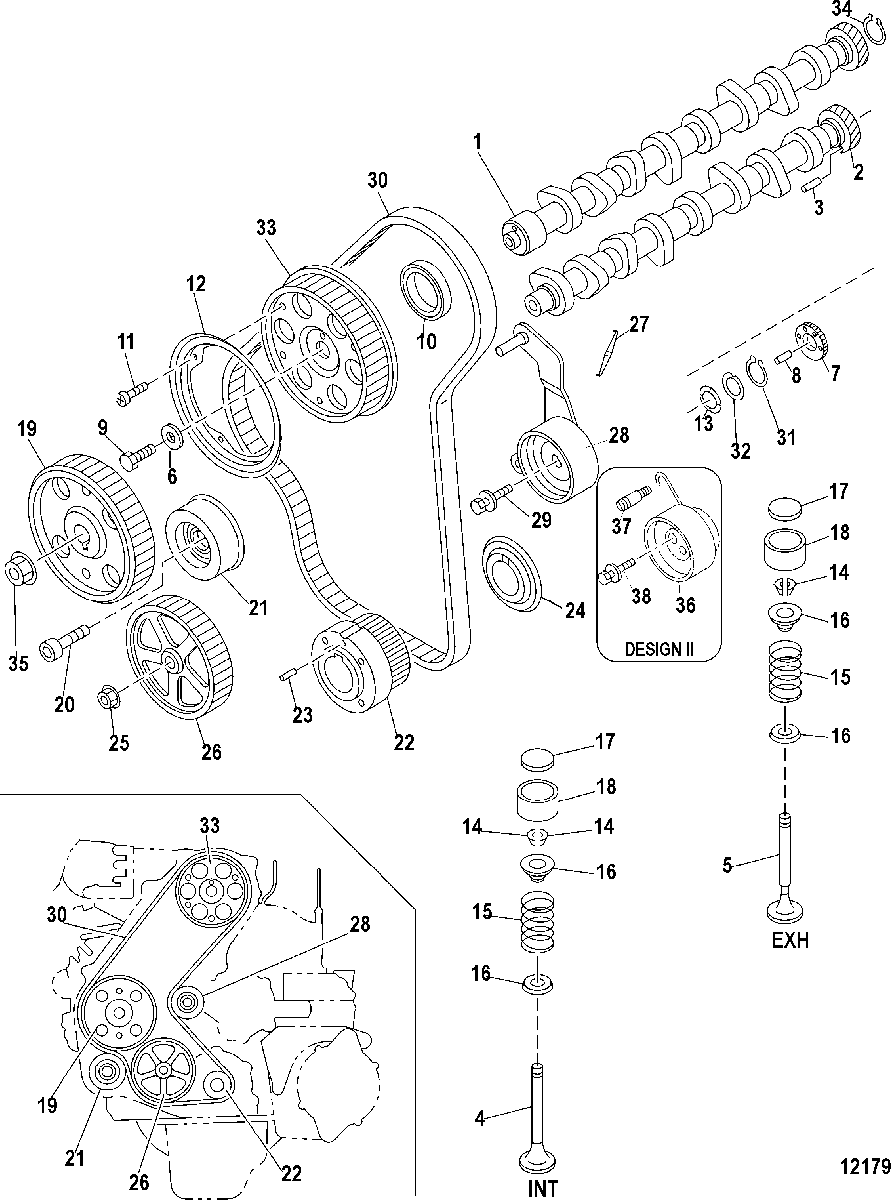

Camshaft and Valves для Mercruiser - D1.7L DTI 0M055000 THRU 0M999999
-
№АртикулНазвание
-
1431-882443 CAMSHAFT
(Intake)CAMSHAFT
(Intake) -
2431-882675 CAMSHAFT
(Exhaust)CAMSHAFT
(Exhaust) -
3882485 PIN, Camshaft (Exhaust Only)PIN, Camshaft (Exhaust Only)
-
4882477 VALVE, IntakeVALVE, Intake
-
5892733 VALVE, ExhaustVALVE, Exhaust
-
612-882362 WASHERWASHER
-
743-882480 GEAR, CamshaftGEAR, Camshaft
-
8882486 PIN, Gear SetPIN, Gear Set
-
910-882427 SCREW, (M12 x 47), Cam PulleySCREW, (M12 x 47), Cam Pulley
-
1025-882367 SEAL, Oil Camshaft, FrontSEAL, Oil Camshaft, Front
-
1110-882626 SCREW, (M4 x 8), Flange With WasherSCREW, (M4 x 8), Flange With Washer
-
12882445 FLANGE, Cam PulleyFLANGE, Cam Pulley
-
1312-882450 WASHER, Gear CamWASHER, Gear Cam
-
14882483 COLLAR, SplitCOLLAR, Split
-
1524-882490 SPRING, ValveSPRING, Valve
-
16882482 SEAT, Spring
(Upper)SEAT, Spring
(Upper) -
16882487001 SEAT, Spring
(Lower)SEAT, Spring
(Lower) -
17882252 SHIM, (T=2.70), Valve GapSHIM, (T=2.70), Valve Gap
-
17882253 SHIM, (T=2.72), Valve GapSHIM, (T=2.72), Valve Gap
-
17882254 SHIM, (T=2.74), Valve GapSHIM, (T=2.74), Valve Gap
-
17882255 SHIM, (T=2.76), Valve GapSHIM, (T=2.76), Valve Gap
-
17882256 SHIM, (T=2.78), Valve GapSHIM, (T=2.78), Valve Gap
-
17882257 SHIM, (T=2.80), Valve GapSHIM, (T=2.80), Valve Gap
-
17882258 SHIM, (T=2.82), Valve GapSHIM, (T=2.82), Valve Gap
-
17882259 SHIM, (T=2.84), Valve GapSHIM, (T=2.84), Valve Gap
-
17882260 SHIM, (T=2.86), Valve GapSHIM, (T=2.86), Valve Gap
-
17882261 SHIM, (T=2.88), Valve GapSHIM, (T=2.88), Valve Gap
-
17882262 SHIM, (T=2.90), Valve GapSHIM, (T=2.90), Valve Gap
-
17882263 SHIM, (T=2.92), Valve GapSHIM, (T=2.92), Valve Gap
-
17882264 SHIM, (T=2.94), Valve GapSHIM, (T=2.94), Valve Gap
-
17882265 SHIM, (T=2.96), Valve GapSHIM, (T=2.96), Valve Gap
-
17882266 SHIM, (T=2.98), Valve GapSHIM, (T=2.98), Valve Gap
-
17882267 SHIM, (T=3.00), Valve GapSHIM, (T=3.00), Valve Gap
-
17882268 SHIM, (T=3.02), Valve GapSHIM, (T=3.02), Valve Gap
-
17882269 SHIM, (T=3.04), Valve GapSHIM, (T=3.04), Valve Gap
-
17882270 SHIM, (T=3.06), Valve GapSHIM, (T=3.06), Valve Gap
-
17882271 SHIM, (T=3.08), Valve GapSHIM, (T=3.08), Valve Gap
-
17882272 SHIM, (T=3.10), Valve GapSHIM, (T=3.10), Valve Gap
-
17882273 SHIM, (T=3.12), Valve GapSHIM, (T=3.12), Valve Gap
-
17882274 SHIM, (T=3.14), Valve GapSHIM, (T=3.14), Valve Gap
-
17882275 SHIM, (T=3.16), Valve GapSHIM, (T=3.16), Valve Gap
-
17882276 SHIM, (T=3.18), Valve GapSHIM, (T=3.18), Valve Gap
-
17882277 SHIM, (T=3.20), Valve GapSHIM, (T=3.20), Valve Gap
-
17882278 SHIM, (T=3.22), Valve GapSHIM, (T=3.22), Valve Gap
-
17882279 SHIM, (T=3.24), Valve GapSHIM, (T=3.24), Valve Gap
-
17882280 SHIM, (T=3.26), Valve GapSHIM, (T=3.26), Valve Gap
-
17882281 SHIM, (T=3.30), Valve GapSHIM, (T=3.30), Valve Gap
-
17882282 SHIM, (T=3.32), Valve GapSHIM, (T=3.32), Valve Gap
-
18882471 TAPPET, ValveTAPPET, Valve
-
19882593 PULLEY, Timing, Injector PumpPULLEY, Timing, Injector Pump
-
2010-8M0115082 BOLT, Idler PulleyBOLT, Idler Pulley
-
218M0115087 PULLEY, Idle, TimingPULLEY, Idle, Timing
-
22882503 PULLEY, Timing, CrankshaftPULLEY, Timing, Crankshaft
-
2317-882630 PIN, Knock, PulleyPIN, Knock, Pulley
-
24882387 PLATE, Guide, Timing BeltPLATE, Guide, Timing Belt
-
2511-882331 NUT, (M10), Pulley, FlangeNUT, (M10), Pulley, Flange
-
26882469001 PULLEY, Timing, Oil PumpPULLEY, Timing, Oil Pump
-
2724-882433 SPRING, TensionerSPRING, Tensioner
-
28899880A01 PULLEY, Tensioner
( Design I )PULLEY, Tensioner
( Design I ) -
2910-882404 SCREW, (M10 x 45), With Washer
( Design I )SCREW, (M10 x 45), With Washer
( Design I ) -
3057-882509 BELT, TimingBELT, Timing
-
31882713 RING, SnapRING, Snap
-
32882452 PLATE, Cam EndPLATE, Cam End
-
33895238 PULLEY, Timing, CamPULLEY, Timing, Cam
-
3424-882484 SPRING, GearSPRING, Gear
-
3511-8M0115085 NUT, (M14), Pulley, FlangeNUT, (M14), Pulley, Flange
-
36888744 PULLEY, Timing Belt
( Design II )PULLEY, Timing Belt
( Design II ) -
3716-889901 STUD
( Design II )STUD
( Design II ) -
3810-888745 BOLT
( Design II )BOLT
( Design II )
