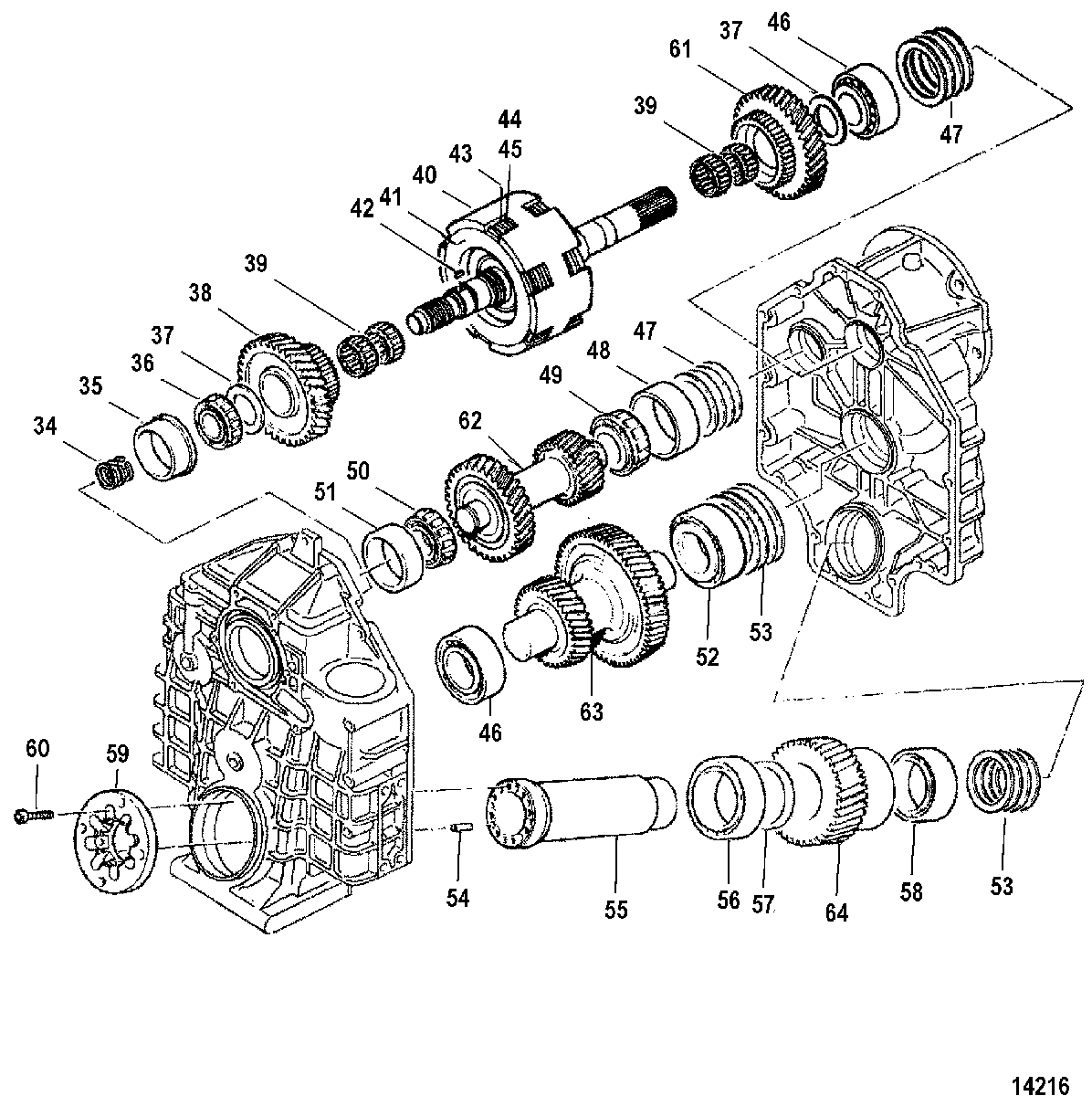

TRANSMISSION(V-DRIVE)(INBOARD) для Mercruiser - D2.8L/165 D-TRONIC VM 169 I/L4 0K144109 THRU 0M999999
-
№АртикулНазвание
-
-863745T2 TRANSMISSION, (1.5:1 Ratio)TRANSMISSION, (1.5:1 Ratio)
-
-863745T3 TRANSMISSION, (2.0:1 Ratio)TRANSMISSION, (2.0:1 Ratio)
-
-863745T4 TRANSMISSION, (2.5:1 Ratio)TRANSMISSION, (2.5:1 Ratio)
-
3453-813312 RINGRING
-
3531-811970 BEARING, Tapered Roller Cup
Refer to MerCruiser Parts Bulletin 95-24BEARING, Tapered Roller Cup
Refer to MerCruiser Parts Bulletin 95-24 -
3631-811969 BEARING, Tapered Roller Cone
Refer to MerCruiser Parts Bulletin 95-24BEARING, Tapered Roller Cone
Refer to MerCruiser Parts Bulletin 95-24 -
3712-811967 WASHER
Refer to MerCruiser Parts Bulletin 95-24WASHER
Refer to MerCruiser Parts Bulletin 95-24 -
3843-813308 GEAR
Refer to MerCruiser Parts Bulletin 95-24GEAR
Refer to MerCruiser Parts Bulletin 95-24 -
3931-813307 BEARING, Roller
Refer to MerCruiser Parts Bulletin 95-24BEARING, Roller
Refer to MerCruiser Parts Bulletin 95-24 -
40813306 SHAFT, Input
Refer to MerCruiser Parts Bulletin 95-24SHAFT, Input
Refer to MerCruiser Parts Bulletin 95-24 -
41813322 PRESSURE DISC
Refer to MerCruiser Parts Bulletin 95-24PRESSURE DISC
Refer to MerCruiser Parts Bulletin 95-24 -
4228-813313 KEY
Refer to MerCruiser Parts Bulletin 95-24KEY
Refer to MerCruiser Parts Bulletin 95-24 -
4353-813321 RINGRING
-
44813319 DISC (INNER)DISC (INNER)
-
45813320 DISC (OUTER)DISC (OUTER)
-
4630-811968 BEARING, Ball
Refer to MerCruiser Parts Bulletin 95-24BEARING, Ball
Refer to MerCruiser Parts Bulletin 95-24 -
4715-813315 SHIM, (.10 mm)SHIM, (.10 mm)
-
4715-813316 SHIM, (.15 mm)SHIM, (.15 mm)
-
4715-813317 SHIM, (.20 mm)SHIM, (.20 mm)
-
4715-813318 SHIM, (.50 mm)SHIM, (.50 mm)
-
4831-811979 BEARING, Tapered Roller Cup
Refer to MerCruiser Parts Bulletin 95-24BEARING, Tapered Roller Cup
Refer to MerCruiser Parts Bulletin 95-24 -
4931-811978 BEARING, Tapered Roller Cone
Refer to MerCruiser Parts Bulletin 95-24BEARING, Tapered Roller Cone
Refer to MerCruiser Parts Bulletin 95-24 -
5031-811971 BEARING, Tapered Roller Cone
Refer to MerCruiser Parts Bulletin 95-24BEARING, Tapered Roller Cone
Refer to MerCruiser Parts Bulletin 95-24 -
5131-811977 BEARING, Tapered Roller Cup
Refer to MerCruiser Parts Bulletin 95-24BEARING, Tapered Roller Cup
Refer to MerCruiser Parts Bulletin 95-24 -
5231-811972 BEARING, Tapered Roller
Refer to MerCruiser Parts Bulletin 95-24BEARING, Tapered Roller
Refer to MerCruiser Parts Bulletin 95-24 -
5315-811973 SHIM
(.10MM) Refer to MerCruiser Parts Bulletin 95-24SHIM
(.10MM) Refer to MerCruiser Parts Bulletin 95-24 -
5315-811974 SHIM
(.15MM) Refer to MerCruiser Parts Bulletin 95-24SHIM
(.15MM) Refer to MerCruiser Parts Bulletin 95-24 -
5315-811975 SHIM
(.30MM) (Refer to MerCruiser Parts Bulletin 95-24SHIM
(.30MM) (Refer to MerCruiser Parts Bulletin 95-24 -
5315-811976 SHIM
(.50MM) Refer to MerCruiser Parts Bulletin 95-24SHIM
(.50MM) Refer to MerCruiser Parts Bulletin 95-24 -
5417-811984 PIN, Dowel
Refer to MerCruiser Parts Bulletin 95-24PIN, Dowel
Refer to MerCruiser Parts Bulletin 95-24 -
55811980 SHAFT, OutputSHAFT, Output
-
5631-811985 BEARING, Tapered Roller
Refer to MerCruiser Parts Bulletin 95-24BEARING, Tapered Roller
Refer to MerCruiser Parts Bulletin 95-24 -
5712-811981 WASHER
Refer to MerCruiser Parts Bulletin 95-24WASHER
Refer to MerCruiser Parts Bulletin 95-24 -
5831-811986 BEARING, Tapered Roller
Refer to MerCruiser Parts Bulletin 95-24BEARING, Tapered Roller
Refer to MerCruiser Parts Bulletin 95-24 -
59811982 FLANGEFLANGE
-
6010-811983 SCREW
Refer to MerCruiser Parts Bulletin 95-24SCREW
Refer to MerCruiser Parts Bulletin 95-24 -
6143-811987 GEAR
1.5:1 RATIO Refer to MerCruiser Parts Bulletin 95-24GEAR
1.5:1 RATIO Refer to MerCruiser Parts Bulletin 95-24 -
6143-811949 GEAR
2.0:1 RATIO Refer to MerCruiser Parts Bulletin 95-24GEAR
2.0:1 RATIO Refer to MerCruiser Parts Bulletin 95-24 -
6143-811949 GEAR
2.5:1 RATIO Refer to MerCruiser Parts Bulletin 95-24GEAR
2.5:1 RATIO Refer to MerCruiser Parts Bulletin 95-24 -
62811951 SHAFT, Reversing
1.5:1 RATIO Refer to MerCruiser Parts Bulletin 95-24SHAFT, Reversing
1.5:1 RATIO Refer to MerCruiser Parts Bulletin 95-24 -
62811947 SHAFT, Reversing
2.0:1 RATIO Refer to MerCruiser Parts Bulletin 95-24SHAFT, Reversing
2.0:1 RATIO Refer to MerCruiser Parts Bulletin 95-24 -
62811947 SHAFT, Reversing
2.5:1 RATIO Refer to MerCruiser Parts Bulletin 95-24SHAFT, Reversing
2.5:1 RATIO Refer to MerCruiser Parts Bulletin 95-24 -
63811952 SHAFT, Intermediate
1.5:1 RATIO Refer to MerCruiser Parts Bulletin 95-24SHAFT, Intermediate
1.5:1 RATIO Refer to MerCruiser Parts Bulletin 95-24 -
63811948 SHAFT, Intermediate
2.0:1 RATIO Refer to MerCruiser Parts Bulletin 95-24SHAFT, Intermediate
2.0:1 RATIO Refer to MerCruiser Parts Bulletin 95-24 -
63811946 SHAFT, Intermediate
2.5:1 RATIO Refer to MerCruiser Parts Bulletin 95-24SHAFT, Intermediate
2.5:1 RATIO Refer to MerCruiser Parts Bulletin 95-24 -
6443-811950 GEAR
1.5:1 RATIO Refer to MerCruiser Parts Bulletin 95-24GEAR
1.5:1 RATIO Refer to MerCruiser Parts Bulletin 95-24 -
6443-811950 GEAR
2.0:1 RATIO Refer to MerCruiser Parts Bulletin 95-24GEAR
2.0:1 RATIO Refer to MerCruiser Parts Bulletin 95-24 -
6443-811945 GEAR
2.5:1 RATIO Refer to MerCruiser Parts Bulletin 95-24GEAR
2.5:1 RATIO Refer to MerCruiser Parts Bulletin 95-24
