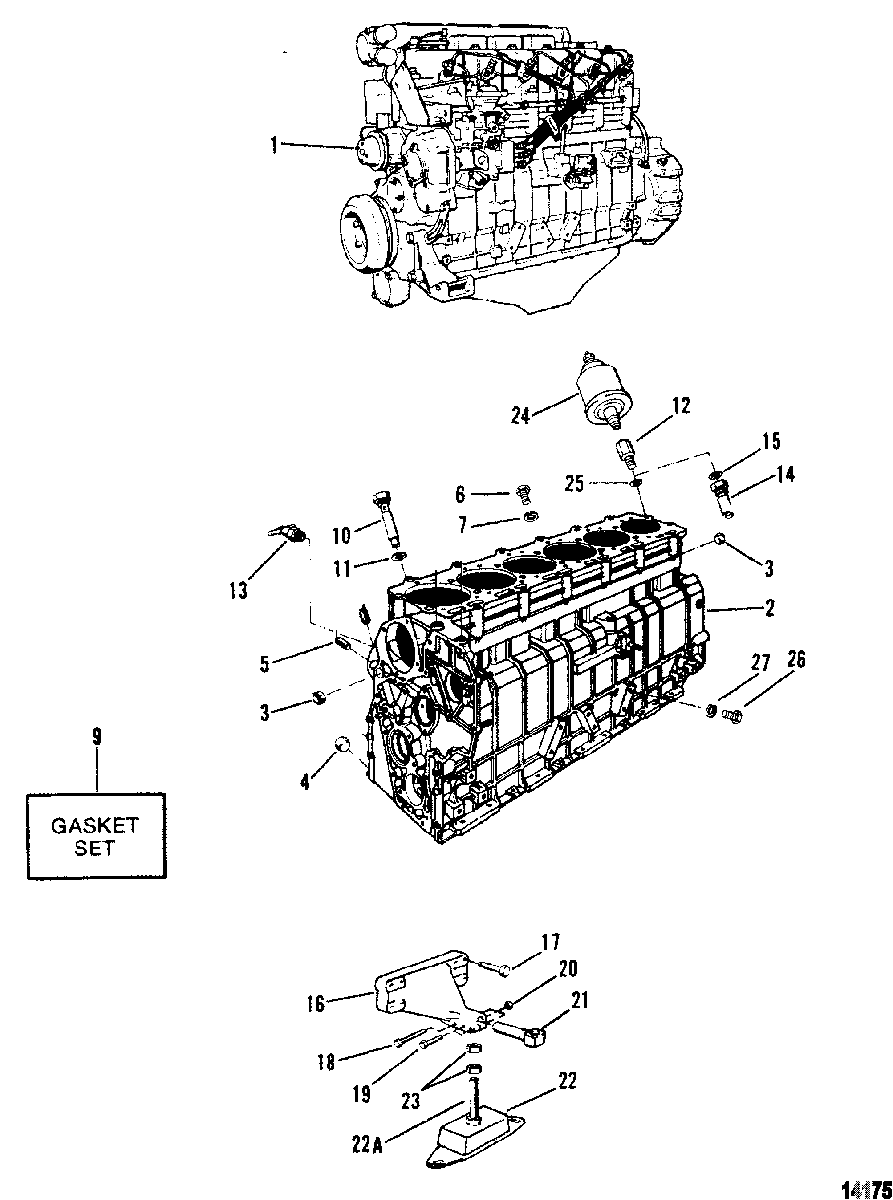

Engine/Cylinder Block для Mercruiser - D3.6L (BRAVO) VM 219 I/L6 0D850128 THRU 0K999999
-
№АртикулНазвание
-
1807041 MARINE LONG BLOCK ENGINE, Includes Internal Parts And Cylinder Heads
(Quantities (5 CYL) - 1; (6 CYL) - 0)MARINE LONG BLOCK ENGINE, Includes Internal Parts And Cylinder Heads
(Quantities (5 CYL) - 1; (6 CYL) - 0) -
1879830 MARINE LONG BLOCK ENGINE, Includes Internal Parts And Cylinder Heads
(Quantities (5 CYL) - 0; (6 CYL) - 1)MARINE LONG BLOCK ENGINE, Includes Internal Parts And Cylinder Heads
(Quantities (5 CYL) - 0; (6 CYL) - 1) -
2882-801763685 CYLINDER BLOCK
(Quantities (5 CYL) - 1; (6 CYL) - 0)CYLINDER BLOCK
(Quantities (5 CYL) - 1; (6 CYL) - 0) -
2882-801331600 CYLINDER BLOCK
(Quantities (5 CYL) - 0; (6 CYL) -1)CYLINDER BLOCK
(Quantities (5 CYL) - 0; (6 CYL) -1) -
319-801331602 PLUG, Expansion
(Quantities (5 CYL) - 2; (6 CYL) - 2)PLUG, Expansion
(Quantities (5 CYL) - 2; (6 CYL) - 2) -
419-809937241 PLUG
(Quantities (5 CYL) - 2; (6 CYL) - 2)PLUG
(Quantities (5 CYL) - 2; (6 CYL) - 2) -
510-801331604 SCREW
(Quantities (5 CYL) - 5; (6 CYL) - 5)SCREW
(Quantities (5 CYL) - 5; (6 CYL) - 5) -
610-4000351 SCREW, (M8 x 16)
(Quantities (5 CYL) - 1; (6 CYL) - 1)SCREW, (M8 x 16)
(Quantities (5 CYL) - 1; (6 CYL) - 1) -
712-814806 WASHER, (.344 x .688 x .065) Stainless Steel
(Quantities (5 CYL) - 1; (6 CYL) - 1)WASHER, (.344 x .688 x .065) Stainless Steel
(Quantities (5 CYL) - 1; (6 CYL) - 1) -
927-898300008 GASKET SET
(Quantities (5 CYL) - 1; (6 CYL) - 0)GASKET SET
(Quantities (5 CYL) - 1; (6 CYL) - 0) -
927-822570A1 GASKET SET, Overhaul
(Quantities (5 CYL) - 0; (6 CYL) - 1)GASKET SET, Overhaul
(Quantities (5 CYL) - 0; (6 CYL) - 1) -
1010-801331650 SCREW, Locating
(Quantities (5 CYL) - 2; (6 CYL) - 3)SCREW, Locating
(Quantities (5 CYL) - 2; (6 CYL) - 3) -
1112-889153 WASHER
(Quantities (5 CYL) - 4; (6 CYL) - 5)WASHER
(Quantities (5 CYL) - 4; (6 CYL) - 5) -
1222-806443 ADAPTOR
(Quantities (5 CYL) - 1; (6 CYL) - 1)ADAPTOR
(Quantities (5 CYL) - 1; (6 CYL) - 1) -
1322-801331684 FITTING, Drain
(Quantities (5 CYL) - 1; (6 CYL) - 1)FITTING, Drain
(Quantities (5 CYL) - 1; (6 CYL) - 1) -
1422-801763388 CONNECTOR
(Quantities (5 CYL) - 1; (6 CYL) - 1)CONNECTOR
(Quantities (5 CYL) - 1; (6 CYL) - 1) -
1512-881791 WASHER
(Quantities (5 CYL) - 1; (6 CYL) - 1)WASHER
(Quantities (5 CYL) - 1; (6 CYL) - 1) -
16801761382 BRACKET
(Quantities (5 CYL) - 2; (6 CYL) - 2)BRACKET
(Quantities (5 CYL) - 2; (6 CYL) - 2) -
1710-809913859 SCREW
(Quantities (5 CYL) - 8; (6 CYL) - 8)SCREW
(Quantities (5 CYL) - 8; (6 CYL) - 8) -
1810-809912516 SCREW, (M8 x 50)
(Quantities (5 CYL) - 4; (6 CYL) - 4)SCREW, (M8 x 50)
(Quantities (5 CYL) - 4; (6 CYL) - 4) -
1910-801761617 SCREW
(Quantities (5 CYL) - 2; (6 CYL) - 2)SCREW
(Quantities (5 CYL) - 2; (6 CYL) - 2) -
2011-815088 NUT, (M8)
(Quantities (5 CYL) - 4; (6 CYL) - 4)NUT, (M8)
(Quantities (5 CYL) - 4; (6 CYL) - 4) -
21855382 PIN, Support
(Quantities (5 CYL) - 2; (6 CYL) - 2)PIN, Support
(Quantities (5 CYL) - 2; (6 CYL) - 2) -
22879194475 MOUNT
(Quantities (5 CYL) - 2; (6 CYL) - 2)MOUNT
(Quantities (5 CYL) - 2; (6 CYL) - 2) -
22A16-801763908 STUD, (M16 x 125)
(Quantities (5 CYL) - 2; (6 CYL) - 2)STUD, (M16 x 125)
(Quantities (5 CYL) - 2; (6 CYL) - 2) -
2311-809921102 NUT, (M16)
(Quantities (5 CYL) - 4; (6 CYL) - 4)NUT, (M16)
(Quantities (5 CYL) - 4; (6 CYL) - 4) -
24805267T SENDER
(Quantities (5 CYL) - 1; (6 CYL) - 1)SENDER
(Quantities (5 CYL) - 1; (6 CYL) - 1) -
2512-881791 WASHER
(Quantities (5 CYL) - 1; (6 CYL) - 1)WASHER
(Quantities (5 CYL) - 1; (6 CYL) - 1) -
2610-4000374 SCREW, (M10 x 16)
(Quantities (5 CYL) - 1; (6 CYL) - 1)SCREW, (M10 x 16)
(Quantities (5 CYL) - 1; (6 CYL) - 1) -
2713-400258 LOCKWASHER, (M10) Stainless Steel
(Quantities (5 CYL) - 1; (6 CYL) - 1)LOCKWASHER, (M10) Stainless Steel
(Quantities (5 CYL) - 1; (6 CYL) - 1)
