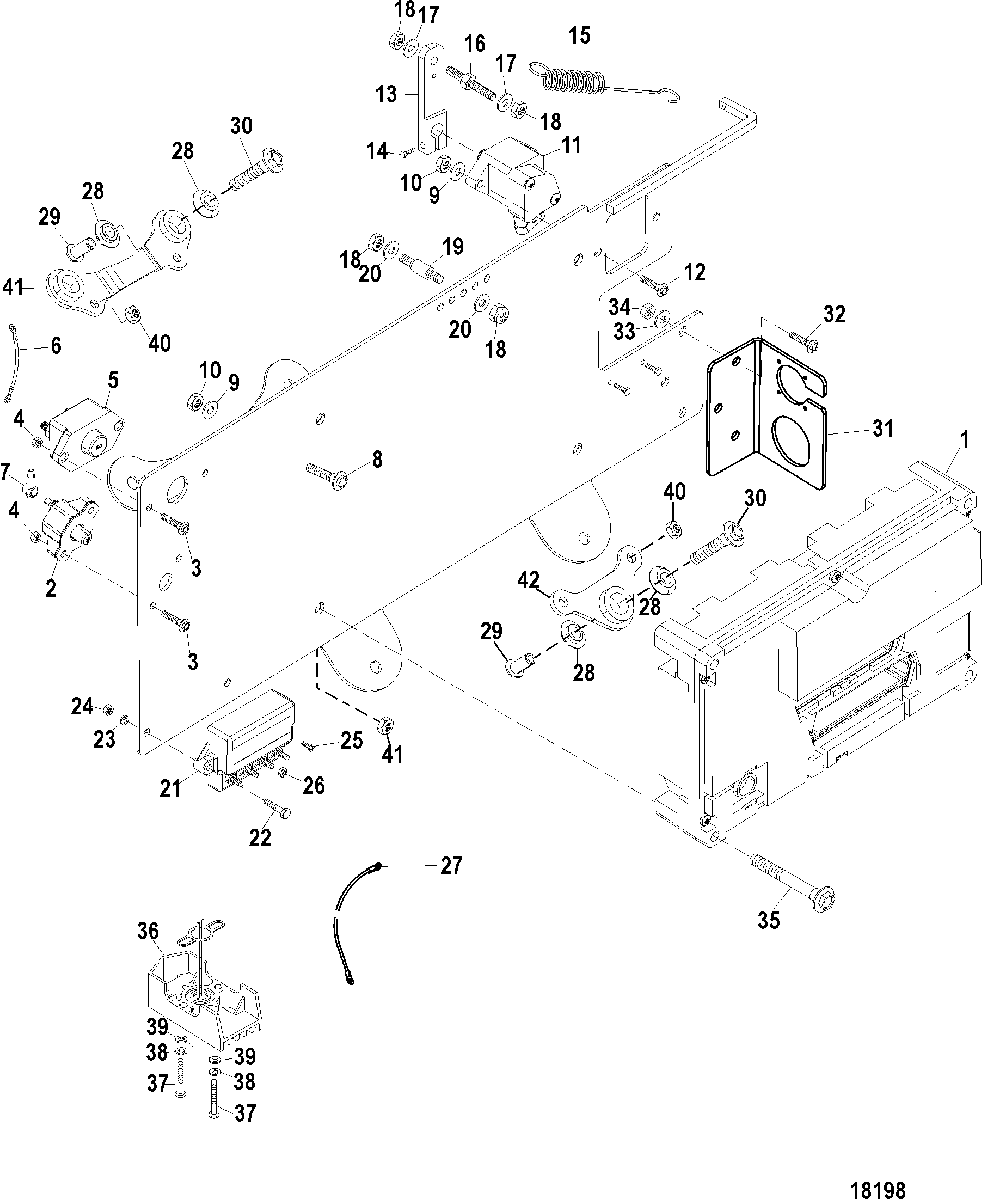

Electronic Panel для Mercruiser - D7.3L D-TRONIC 260 LD 1999 0L050050 & Up
-
№АртикулНазвание
-
1862169T MODULE, Electronic Control
(300 HP)MODULE, Electronic Control
(300 HP) -
1862169T1 MODULE, Electronic Control
(260 HP)MODULE, Electronic Control
(260 HP) -
2853404 BREAKER, Circuit - 30 AmpereBREAKER, Circuit - 30 Ampere
-
310-802784 SCREW, (M5 x 20)SCREW, (M5 x 20)
-
411-400211 NUT, (M5) Stainless SteelNUT, (M5) Stainless Steel
-
588-805692 BREAKER, Circuit - 150 AmpereBREAKER, Circuit - 150 Ampere
-
684-853506 WIREWIRE
-
785-8500671 BOOT, Insulator - RedBOOT, Insulator - Red
-
810-4009416 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
912-853211 WASHERWASHER
-
1011-802777 NUT, (M6)NUT, (M6)
-
11853497 CONTROL, ThrottleCONTROL, Throttle
-
1210-802783 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
13853498 LEVERLEVER
-
1410-853097 SCREW, (M4 x 20)SCREW, (M4 x 20)
-
1524-91821 SPRINGSPRING
-
1616-8M0113178 STUD, (.250-28 x 2.00)STUD, (.250-28 x 2.00)
-
1712-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
1811-8267089 NUT, (.250-28)NUT, (.250-28)
-
1916-818192 STUDSTUD
-
2012-24664 WASHER, (M4 x 20)WASHER, (M4 x 20)
-
2142600A09 CONTROLLER ASSEMBLYCONTROLLER ASSEMBLY
-
2210-802784 SCREW, (M5 x 20)SCREW, (M5 x 20)
-
2313-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
2411-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
2510-62568 SCREW, (#10-16 x .375)SCREW, (#10-16 x .375)
-
2611-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
2784-88543A3 CABLE ASSEMBLYCABLE ASSEMBLY
-
2825-853470 ISOLATORISOLATOR
-
29853504 SPACERSPACER
-
3010-853219 SCREW, (M8 x 25)SCREW, (M8 x 25)
-
31863390 PLATE, Electrical Connection MountingPLATE, Electrical Connection Mounting
-
3210-4009416 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
3312-853211 WASHERWASHER
-
3411-802777 NUT, (M6)NUT, (M6)
-
3510-853412 SCREW, (M8 x 70)SCREW, (M8 x 70)
-
368M0085692 ELECTRODE ASSEMBLYELECTRODE ASSEMBLY
-
3710-69067 SCREW, (.250-20 x 1.375)SCREW, (.250-20 x 1.375)
-
3813-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
3912-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
4011-853468 NUT, (M8)NUT, (M8)
-
41853293T BRACKETBRACKET
-
42853499 BRACKETBRACKET
