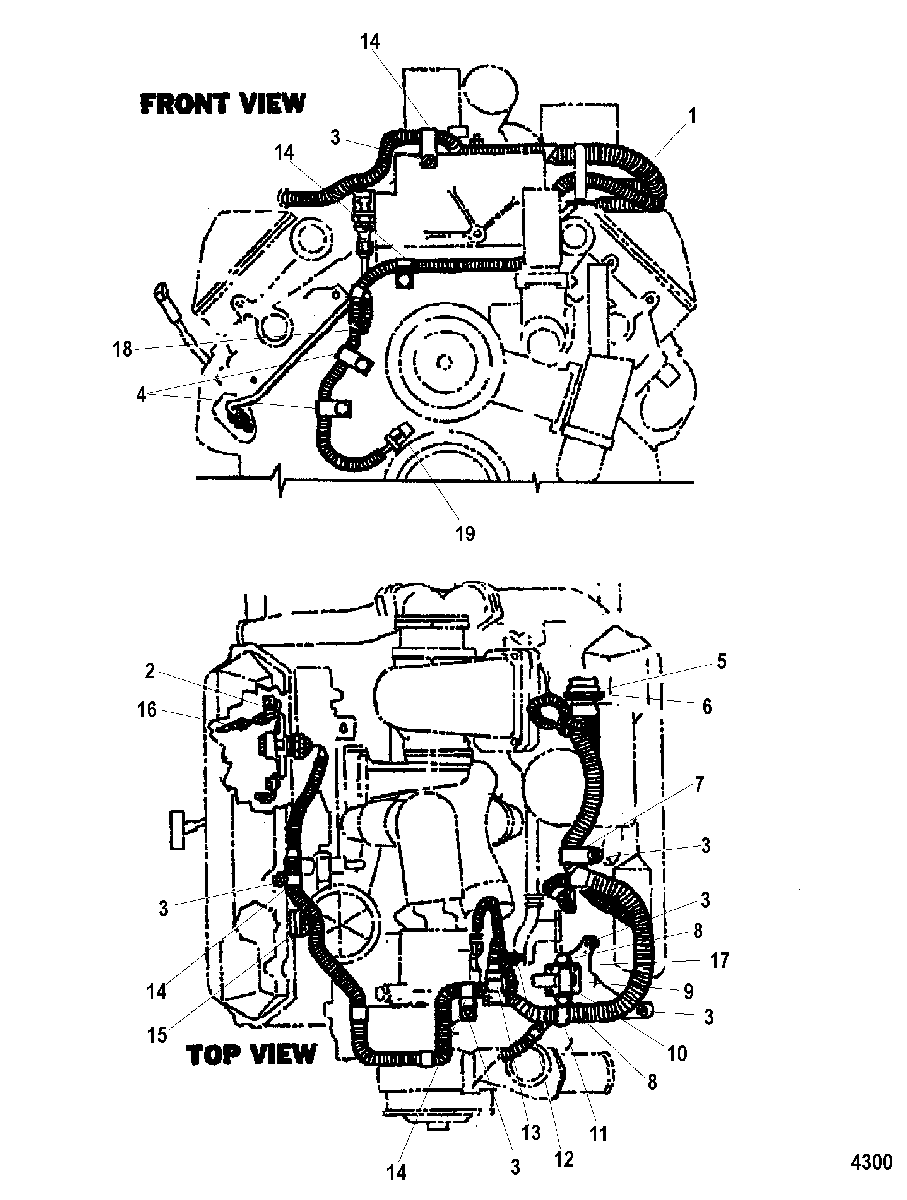

Engine Wiring Harness для Mercruiser - D7.3L D-TRONIC 300 1999 0L050050 & Up
-
№АртикулНазвание
-
184-862613 HARNESS ASSEMBLY, Engine PrimaryHARNESS ASSEMBLY, Engine Primary
-
184-862611 HARNESS ASSEMBLY, ECMHARNESS ASSEMBLY, ECM
-
284-8M0065542 HARNESS ASSEMBLY, Injector, Glow PlugHARNESS ASSEMBLY, Injector, Glow Plug
-
311-853468 NUT, (M8)NUT, (M8)
-
454-853223 CLAMPCLAMP
-
511-853185 NUTNUT
-
612-853186 WASHERWASHER
-
754-853187 CLAMPCLAMP
-
810-4009416 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
9853189 RELAY, Glow PlugRELAY, Glow Plug
-
-26-853190 SEALSEAL
-
-11-853191 NUTNUT
-
10853192 COVER, RelayCOVER, Relay
-
1154-853194 CLAMPCLAMP
-
12853195 SENSOR (ICP, ECM Input)SENSOR (ICP, ECM Input)
-
13853203 SENDER (Oil Temperature, ECM Input)SENDER (Oil Temperature, ECM Input)
-
1454-853197 CLAMPCLAMP
-
1526-853198 SEALSEAL
-
16853199 GLOW PLUGGLOW PLUG
-
17853201 SUPPORTSUPPORT
-
18853203 SENDER (Engine Coolant Temperature, ECM Input)SENDER (Engine Coolant Temperature, ECM Input)
-
19853204 SENSOR (Cam Position, ECM Input)SENSOR (Cam Position, ECM Input)
-
-10-853442 SCREW, (M8 x 16), Cam SensorSCREW, (M8 x 16), Cam Sensor
-
-25-853206 O-RING, Cam SensorO-RING, Cam Sensor
-
-26-853207 SEAL, Cam SensorSEAL, Cam Sensor
-
-830796A1 CONNECTOR ASSEMBLYCONNECTOR ASSEMBLY
