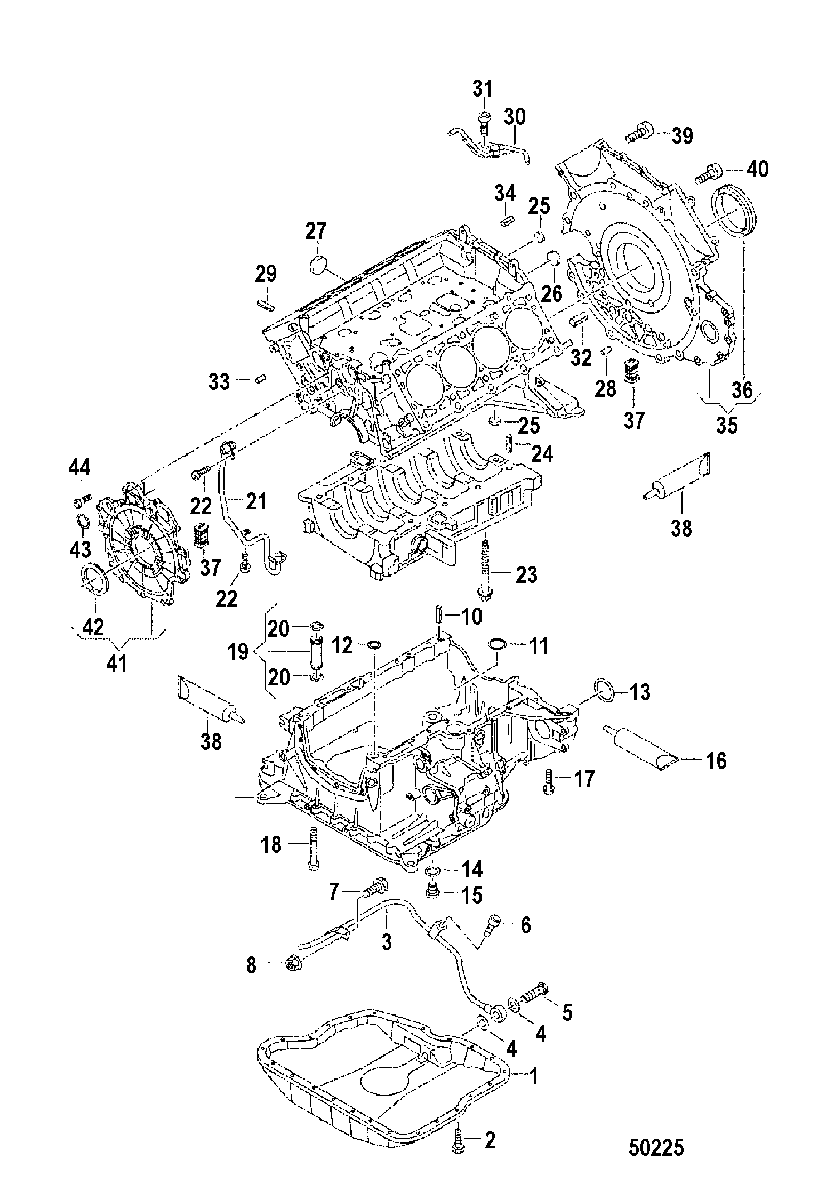

OIL SUMP для Mercruiser - TDI 4.2L 370 MCM CMC000200 & Up
-
№АртикулНазвание
-
18M0093928 PAN, LowerPAN, Lower
-
210-8M0058073 SCREWSCREW
-
38M0088471 PIPEPIPE
-
425-8M0068135 O-RING, 14x18O-RING, 14x18
-
522-8M0068181 SCREW , 10SCREW , 10
-
811-8M0068394 NUT, M8NUT, M8
-
98M0055516 OIL SUMP, UpperOIL SUMP, Upper
-
1017-8M0066404 PIN, SPRING, 6.2x22PIN, SPRING, 6.2x22
-
1125-8M0068524 O-RING, 35x3O-RING, 35x3
-
1225-8M0068513 O-RING, 20x2.5O-RING, 20x2.5
-
1325-8M0068408 O-RING, 42x2.5O-RING, 42x2.5
-
1425-8M0068136 O-RING, 18x24O-RING, 18x24
-
1522-8M0068169 PLUG , M18x1.50PLUG , M18x1.50
-
1692-8M0068049 SEALANT, 50mlSEALANT, 50ml
-
1710-8M0068499 SCREW , M7x50SCREW , M7x50
-
1810-8M0068527 SCREW , M7x105x39SCREW , M7x105x39
-
1932-8M0066435 PIPEPIPE
-
2025-8M0068477 O-RING, 7.65x1.78O-RING, 7.65x1.78
-
2132-8M0066437 PIPEPIPE
-
2210-8M0068239 SCREW, M6x10SCREW, M6x10
-
2310-8M0066528 SCREW , M11x112SCREW , M11x112
-
248M0066410 SLEEVESLEEVE
-
2519-8M0068109 PLUG, 12PLUG, 12
-
2619-8M0068101 PLUG, 20PLUG, 20
-
2719-8M0058178 PLUGPLUG
-
288M0068122 PIN, 6x16PIN, 6x16
-
2917-8M0066404 PIN, SPRING, 6.2x22PIN, SPRING, 6.2x22
-
308M0057954 SPRAY JETSPRAY JET
-
3110-8M0068548 SCREW , M6x6x12SCREW , M6x6x12
-
328M0066201 SLEEVE, 16X13.5SLEEVE, 16X13.5
-
338M0068370 PIN, 6x16PIN, 6x16
-
348M0066375 DOWEL PIN, 11.15x6.5DOWEL PIN, 11.15x6.5
-
358M0058078 FLANGE ASSEMBLY, RearFLANGE ASSEMBLY, Rear
-
3626-8M0086378 SEAL, Flange, RearSEAL, Flange, Rear
-
3727-8M0066411 GASKETGASKET
-
3892-8M0068049 SEALANT, 50mlSEALANT, 50ml
-
3910-8M0068234 SCREW , M6x30SCREW , M6x30
-
4010-8M0068550 SCREW , M8x32SCREW , M8x32
-
418M0058177 FLANGE ASSEMBLY, FrontFLANGE ASSEMBLY, Front
-
4226-8M0086378 SEAL, Flange, FrontSEAL, Flange, Front
-
4410-8M0068223 SCREW , M6x20SCREW , M6x20
-
-21-8M0086380 VALVE, CONTROL, Upper panVALVE, CONTROL, Upper pan
