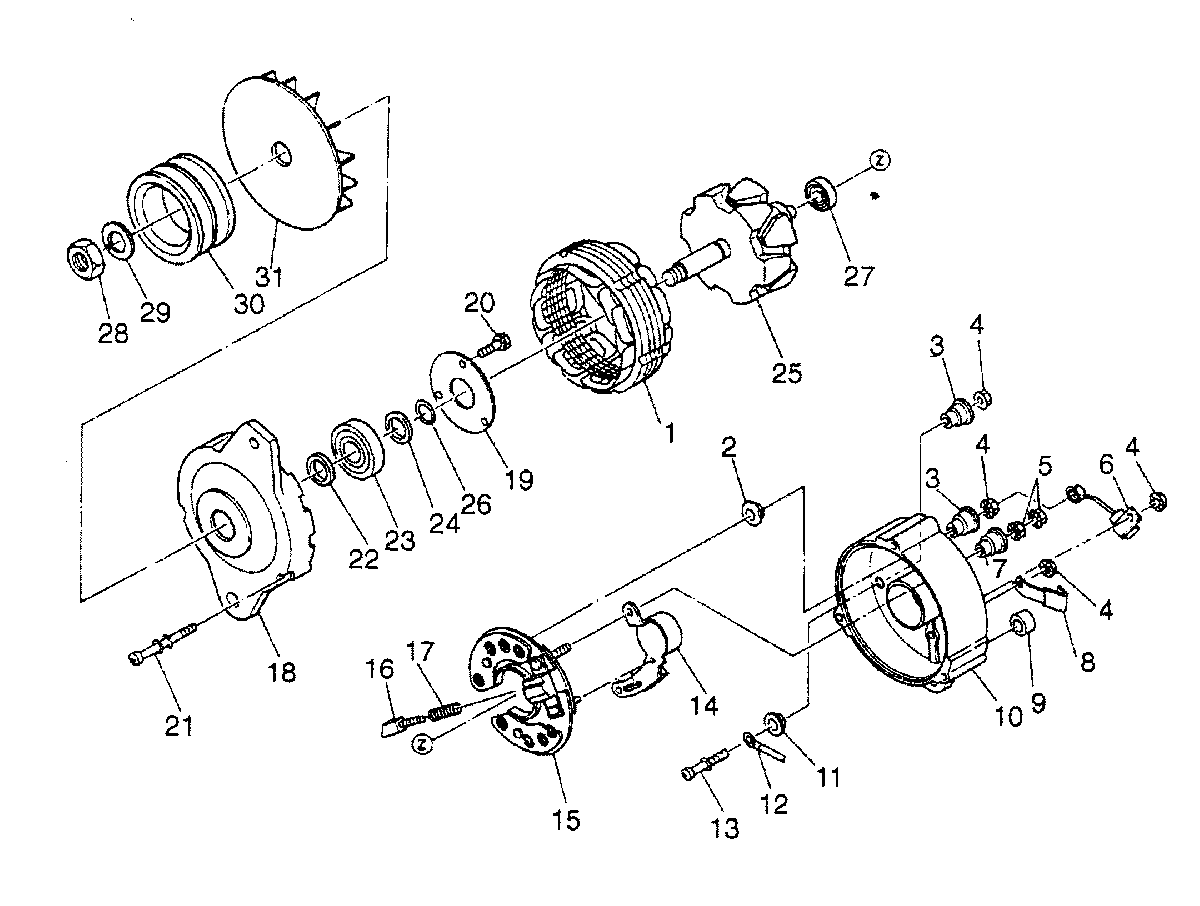

ALTERNATOR ASSEMBLY для Mercruiser - W06DTA (310 HP) HINO 351 I/L6 0D854106 AND UP
-
№АртикулНазвание
-
-830401262 ALTERNATOR ASSEMBLYALTERNATOR ASSEMBLY
-
1834101600 STATOR ASSEMBLYSTATOR ASSEMBLY
-
2833871170 INSULATOR-TERMINAL BINSULATOR-TERMINAL B
-
3833871160 INSULATOR-TERMINAL BINSULATOR-TERMINAL B
-
4830105040 NUTNUT
-
511-830106050 NUTNUT
-
6833551180 CONDENSER-ALTENATORCONDENSER-ALTENATOR
-
7833871150 INSULATOR-TERMINAL BINSULATOR-TERMINAL B
-
8834451190 CLAMPCLAMP
-
9833511020 BUSH-FRAMEBUSH-FRAME
-
10833591810 FRAME-RECTIFIER ENDFRAME-RECTIFIER END
-
11833781600 INSULATOR-TERMINALINSULATOR-TERMINAL
-
12833651080 WIRE-LEADWIRE-LEAD
-
13833641450 BOLT-TERMINALBOLT-TERMINAL
-
14837001520 REGULATOR ASSEMBLY-GENREGULATOR ASSEMBLY-GEN
-
15833561310 HOLDER-W/RECTIFIERHOLDER-W/RECTIFIER
-
16833711170 BRUSH-ALTERNATOR (A)BRUSH-ALTERNATOR (A)
-
17833761030 HOLDER-BRUSH (B)HOLDER-BRUSH (B)
-
18833101510 FRAME ASSEMBLY-ALTERNATOR DRIVE SIDEFRAME ASSEMBLY-ALTERNATOR DRIVE SIDE
-
19833121520 PLATE-RETAINERPLATE-RETAINER
-
20833621090 BOLT-THROUGHBOLT-THROUGH
-
21833171440 BOLT-THROUGHBOLT-THROUGH
-
22834121140 COLLAR-SPACECOLLAR-SPACE
-
23832521630 BEARINGBEARING
-
24834121150 COLLAR-SPACECOLLAR-SPACE
-
25833301530 ROTOR ASSEMBLY-ALTERNATORROTOR ASSEMBLY-ALTERNATOR
-
26833331030 RING-SPACERING-SPACE
-
27832521640 BEARINGBEARING
-
28831016080 NUT-LOCKNUT-LOCK
-
29839016480 LOCKWASHERLOCKWASHER
-
30834311380 PULLEY-ALTERNATORPULLEY-ALTERNATOR
-
31834411170 FAN-ALTERNATORFAN-ALTERNATOR
