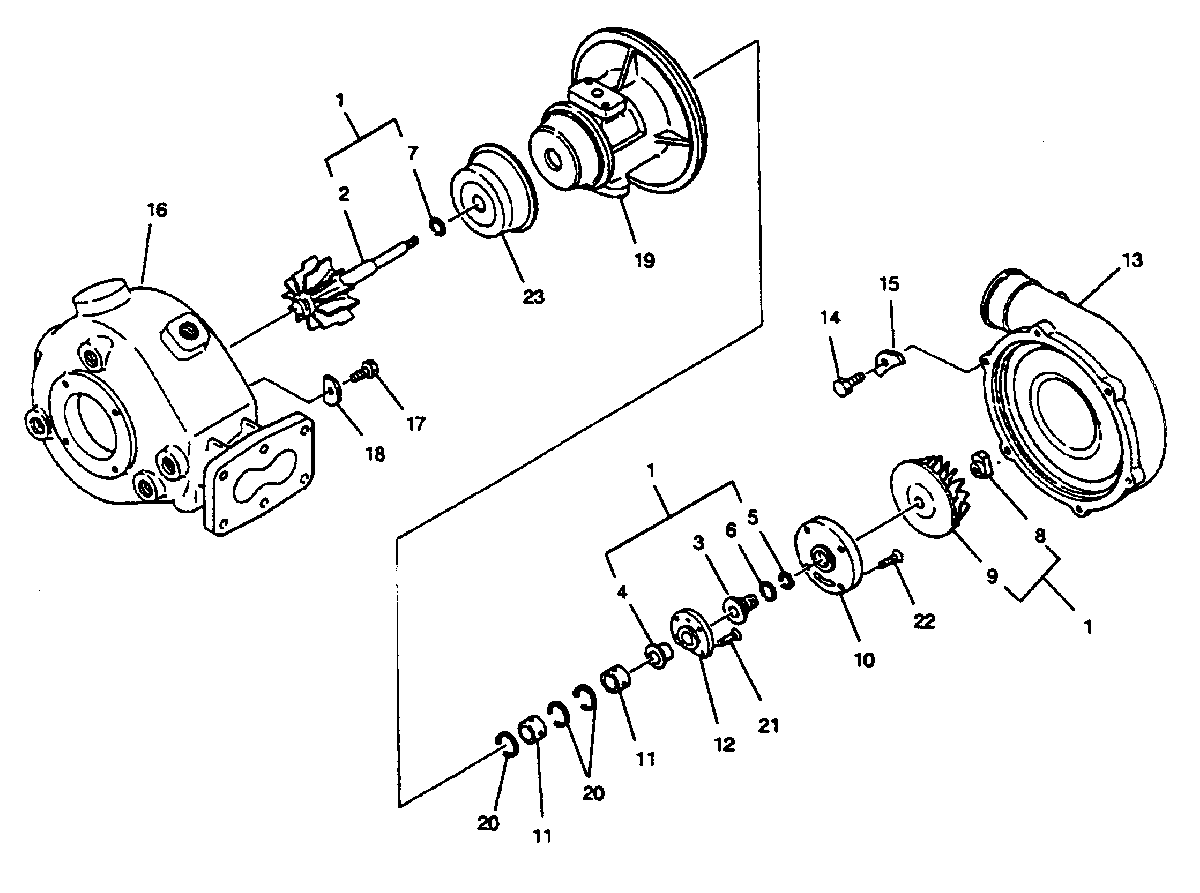

TURBOCHARGER ASSEMBLY для Mercruiser - WO6DTI (250 HP) HINO 351 I/L6 ALL
-
№АртикулНазвание
-
-831002240 TURBOCHARGER ASSEMBLYTURBOCHARGER ASSEMBLY
-
1831501310 ROTOR ASSEMBLYROTOR ASSEMBLY
-
2831151330 ROTOR-TurbineROTOR-Turbine
-
3831161040 THROWER-OilTHROWER-Oil
-
4831421070 SPACER-ThrustSPACER-Thrust
-
5831241190 SEAL-RingSEAL-Ring
-
6831241180 SEAL-RingSEAL-Ring
-
7831241170 SEAL-RingSEAL-Ring
-
8831171140 NUT-LockNUT-Lock
-
9831181111 IMPELLER-BlowerIMPELLER-Blower
-
10831271130 PLATE-BackingPLATE-Backing
-
11831311110 BEARINGBEARING
-
12831431060 BEARING-Inboard ThrustBEARING-Inboard Thrust
-
13831141140 CASE-BlowerCASE-Blower
-
14831451280 BOLT-HousingBOLT-Housing
-
15831231260 PLATE-RetainerPLATE-Retainer
-
16831111430 CASE-TurbineCASE-Turbine
-
17831451290 BOLTBOLT
-
18831231270 PLATEPLATE
-
19831211250 CASE-BearingCASE-Bearing
-
20831321080 RING-NozzleRING-Nozzle
-
21831361160 SCREWSCREW
-
22831361170 SCREWSCREW
-
23831411150 PROTECTOR-HeatPROTECTOR-Heat
