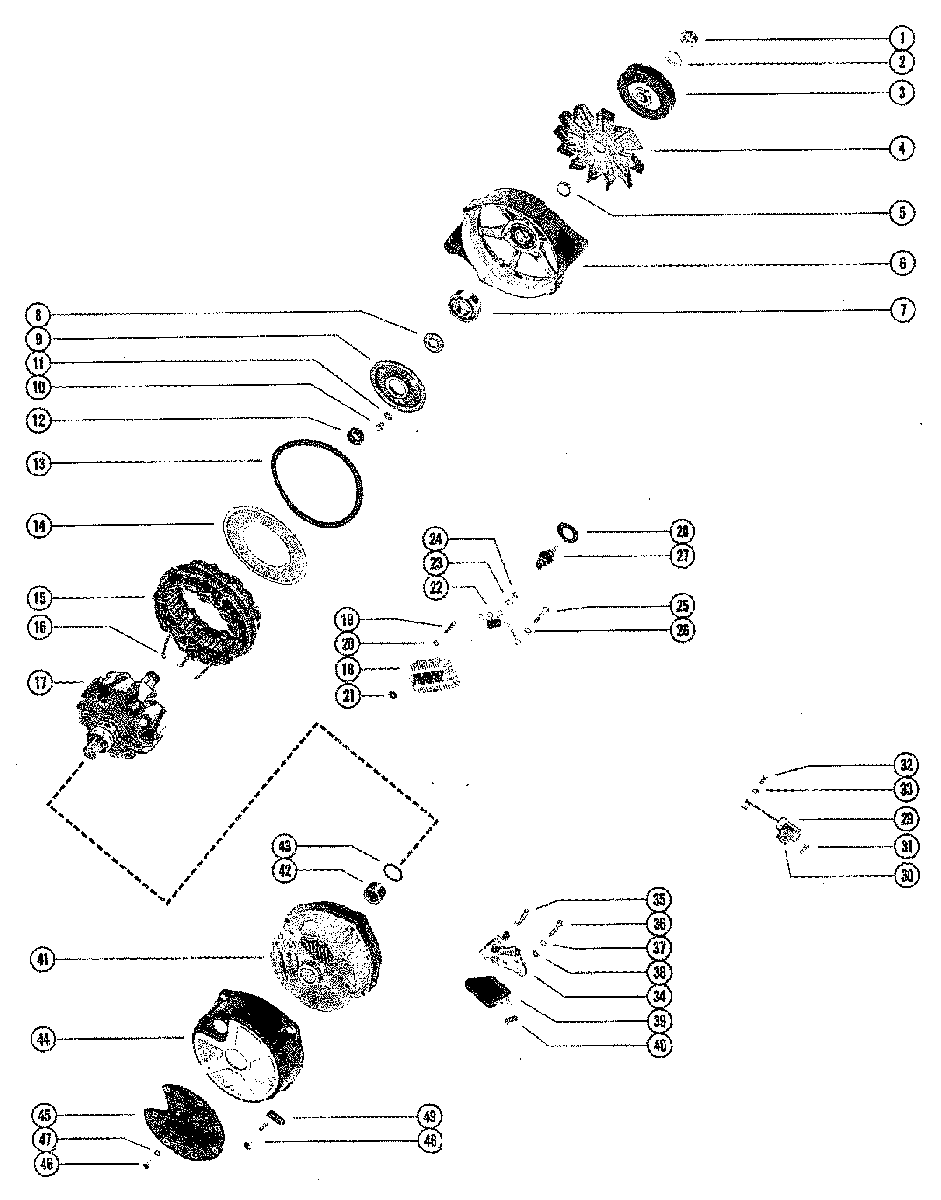

ALTERNATOR ASSEMBLY, COMPLETE для Mercruiser - 198 MIE (2 BBL.) GM 305 V-8 1977 4762210 THRU 6218461
-
№АртикулНазвание
-
-78403A2 ALTERNATOR ASSEMBLY, COMPLETEALTERNATOR ASSEMBLY, COMPLETE
-
-78403A2 ALTERNATOR ASSEMBLY, COMPLETEALTERNATOR ASSEMBLY, COMPLETE
-
-78403A2 ALTERNATOR ASSEMBLY, COMPLETEALTERNATOR ASSEMBLY, COMPLETE
-
-78403A2 ALTERNATOR ASSEMBLY, COMPLETEALTERNATOR ASSEMBLY, COMPLETE
-
111-33272 NUT, FAN AND PULLEY TO ROTORNUT, FAN AND PULLEY TO ROTOR
-
213-33309 LOCKWASHER, FAN AND PULLEY NUTLOCKWASHER, FAN AND PULLEY NUT
-
338766 PULLEY, DRIVE END FRAMEPULLEY, DRIVE END FRAME
-
433336 FAN, DRIVE END FRAMEFAN, DRIVE END FRAME
-
5N.S.S. COLLAR, DRIVE END FRAME - OUTER (DELCO REMY #1959991)COLLAR, DRIVE END FRAME - OUTER (DELCO REMY #1959991)
-
642792 FRAME, DRIVE ENDFRAME, DRIVE END
-
671704 FRAME, DRIVE ENDFRAME, DRIVE END
-
730-56955 BALL BEARING, DRIVE END FRAMEBALL BEARING, DRIVE END FRAME
-
812-56958 WASHER, GREASE SLINGER - DRIVE END FRAMEWASHER, GREASE SLINGER - DRIVE END FRAME
-
956956 PLATE, BALL BEARING RETAINERPLATE, BALL BEARING RETAINER
-
1010-27304 SCREW, RETAINER PLATE TO DRIVE END FRAMESCREW, RETAINER PLATE TO DRIVE END FRAME
-
1113-35208 LOCKWASHER, RETAINER PLATE SCREWLOCKWASHER, RETAINER PLATE SCREW
-
12N.S.S. COLLAR, DRIVE END FRAME - INNER (DELCO REMY #1963139)COLLAR, DRIVE END FRAME - INNER (DELCO REMY #1963139)
-
1327-56960 GASKET, DRIVE END FRAME SCREENGASKET, DRIVE END FRAME SCREEN
-
1460694 SCREEN, DRIVE END FRAMESCREEN, DRIVE END FRAME
-
1460694 SCREEN, DRIVE END FRAMESCREEN, DRIVE END FRAME
-
1556935 STATOR ASSEMBLYSTATOR ASSEMBLY
-
1654-33329 CLIP, TERMINAL - STATOR LEADSCLIP, TERMINAL - STATOR LEADS
-
1756934 ROTORROTOR
-
1856939 RECTIFIER BRIDGERECTIFIER BRIDGE
-
1910-38603 SCREW, RECTIFIER BRIDGE ATTACHINGSCREW, RECTIFIER BRIDGE ATTACHING
-
1910-71702 SCREW, RECTIFIER BRIGDE ATTACHINGSCREW, RECTIFIER BRIGDE ATTACHING
-
2013-34383 LOCKWASHER, RECTIFIER BRIDGE ATTACHING SCREWLOCKWASHER, RECTIFIER BRIDGE ATTACHING SCREW
-
2112-56946 WASHER, INSULATED - RECTIFIER BRIDGE ATTACHING SCREWWASHER, INSULATED - RECTIFIER BRIDGE ATTACHING SCREW
-
2256938 DIODE TRIODIODE TRIO
-
2313-34383 LOCKWASHER, DIODE TRIO TO RECTIFIER BRIDGE TERMINALLOCKWASHER, DIODE TRIO TO RECTIFIER BRIDGE TERMINAL
-
2411-21923T NUT, DIODE TRIO TO RECTIFIER BRIDGE TERMINALNUT, DIODE TRIO TO RECTIFIER BRIDGE TERMINAL
-
2510-71703 SCREW, BRUSH HOLDER ATTACHING - GROUNDSCREW, BRUSH HOLDER ATTACHING - GROUND
-
2510-71703 SCREW, BRUSH HOLDER ATTACHING - GROUNDSCREW, BRUSH HOLDER ATTACHING - GROUND
-
2613-34383 LOCKWASHER, GROUND BRUSH HOLDER SCREWLOCKWASHER, GROUND BRUSH HOLDER SCREW
-
2756948 TERMINAL PACKAGE, BATTERYTERMINAL PACKAGE, BATTERY
-
2760692 TERMINAL PACKAGE, BATTERYTERMINAL PACKAGE, BATTERY
-
2812-56947 WASHER, SPONGE NEOPRENE - BATTERY TERMINAL (1 1/4" O.D.)WASHER, SPONGE NEOPRENE - BATTERY TERMINAL (1 1/4" O.D.)
-
2958296 CONDENSERCONDENSER
-
2958296 CONDENSERCONDENSER
-
30393-2730 BRACKET, CONDENSERBRACKET, CONDENSER
-
30393-2730 BRACKET, CONDENSERBRACKET, CONDENSER
-
3110-60693 SCREW, CONDENSER ATTACHINGSCREW, CONDENSER ATTACHING
-
3110-60693 SCREW, CONDENSER ATTACHINGSCREW, CONDENSER ATTACHING
-
3210-56952 SCREW, CONDENSER LEAD TERMINAL ATTACHINGSCREW, CONDENSER LEAD TERMINAL ATTACHING
-
3210-60693 SCREW, CONDENSER LEAD TERMINAL ATTACHINGSCREW, CONDENSER LEAD TERMINAL ATTACHING
-
3313-34383 LOCKWASHER, CONDENSER LEAD TERMINAL ATTACHING SCREWLOCKWASHER, CONDENSER LEAD TERMINAL ATTACHING SCREW
-
3442791 HOLDER AND BRUSH ASSEMBLYHOLDER AND BRUSH ASSEMBLY
-
3524-56943 SPRING, TENSION - BRUSHESSPRING, TENSION - BRUSHES
-
3610-60691 SCREW, BRUSH HOLDER ATTACHING - INSULATEDSCREW, BRUSH HOLDER ATTACHING - INSULATED
-
3610-60691 SCREW, BRUSH HOLDER ATTACHING - INSULATEDSCREW, BRUSH HOLDER ATTACHING - INSULATED
-
3713-34383 LOCKWASHER, INSULATED BRUSH HOLDER SCREWLOCKWASHER, INSULATED BRUSH HOLDER SCREW
-
3812-56946 WASHER, INSULATED - BRUSH HOLDER SCREWWASHER, INSULATED - BRUSH HOLDER SCREW
-
3956932 VOLTAGE REGULATOR, TRANSISTORVOLTAGE REGULATOR, TRANSISTOR
-
3971699 VOLTAGE REGULATOR, TRANSISTORVOLTAGE REGULATOR, TRANSISTOR
-
3978385 VOLTAGE REGULATOR, TRANSISTORVOLTAGE REGULATOR, TRANSISTOR
-
4054-56933 CLIP, SHORTING - VOLTAGE REGULATORCLIP, SHORTING - VOLTAGE REGULATOR
-
--71700 LEAD, VOLTAGE REGULATORLEAD, VOLTAGE REGULATOR
-
--11-71701 NUT, VOLTAGE REGULATORNUT, VOLTAGE REGULATOR
-
4156936 FRAME ASSEMBLY, SLIP RING ENDFRAME ASSEMBLY, SLIP RING END
-
4231-56937 ROLLER BEARING, SLIP RING END FRAMEROLLER BEARING, SLIP RING END FRAME
-
4326-33348 SEAL, SLIP RING END FRAMESEAL, SLIP RING END FRAME
-
4160689 FRAME ASSEMBLY, SLIP RING ENDFRAME ASSEMBLY, SLIP RING END
-
4231-60690 ROLLER BEARING, SLIP RING END FRAMEROLLER BEARING, SLIP RING END FRAME
-
4460695 COVER ASSEMBLY, SLIP RING ENDCOVER ASSEMBLY, SLIP RING END
-
4535-60696 SCREEN, COVERSCREEN, COVER
-
4610-56963 SCREW, SCREEN TO COVERSCREW, SCREEN TO COVER
-
4713-35208 LOCKWASHER, SCREEN SCREWLOCKWASHER, SCREEN SCREW
-
4460695 COVER ASSEMBLY, SLIP RING ENDCOVER ASSEMBLY, SLIP RING END
-
4478387 COVER ASSEMBLY, SLIP RING ENDCOVER ASSEMBLY, SLIP RING END
-
4535-60696 SCREEN, COVERSCREEN, COVER
-
4610-56963 SCREW, SCREEN TO COVERSCREW, SCREEN TO COVER
-
4713-35208 LOCKWASHER, SCREEN SCREWLOCKWASHER, SCREEN SCREW
-
4810-33322 BOLT, THRU - SLIP RING END FRAME TO DRIVE END FRAMEBOLT, THRU - SLIP RING END FRAME TO DRIVE END FRAME
-
4954-56953 CLIP, GROUND - THRU BOLTCLIP, GROUND - THRU BOLT
-
--78386 BOOT, VOLTAGE REGULATOR TERMINALSBOOT, VOLTAGE REGULATOR TERMINALS
-
--78388 CONNECTORCONNECTOR
-
--78389 BRACKET, CONNECTOR ATTACHINGBRACKET, CONNECTOR ATTACHING
-
--11-71701 NUT, BRACKET ATTACHINGNUT, BRACKET ATTACHING
