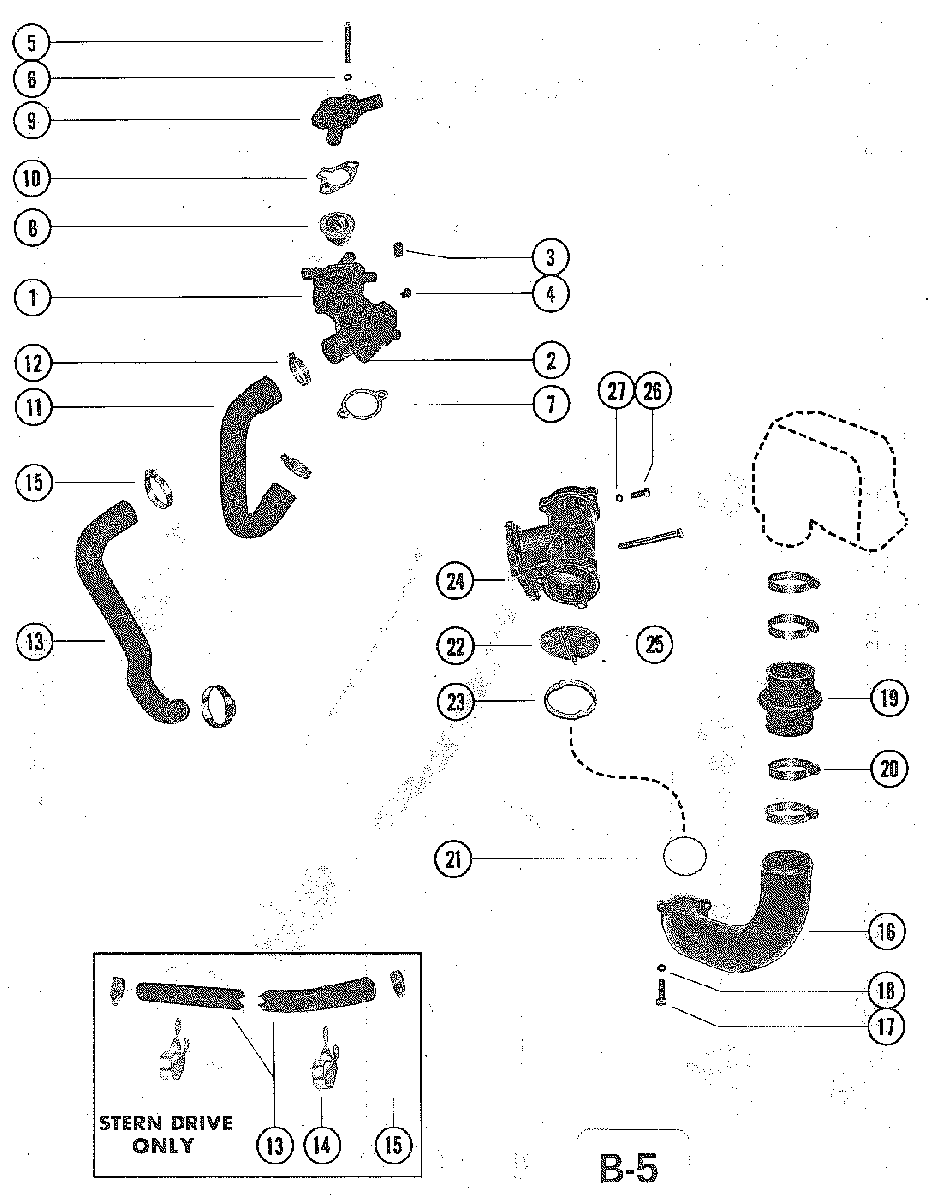

THERMOSTAT HOUSING, COVER AND EXHAUST ELBOW для Mercruiser - 228 (4 BBL.) GM 305 V-8 1977-1978 4765100 THRU 5170008
-
№АртикулНазвание
-
178984A08 THERMOSTATE HOUSING ASSEMBLYTHERMOSTATE HOUSING ASSEMBLY
-
223-47511 SLEEVE, THERMOSTAT HOUSINGSLEEVE, THERMOSTAT HOUSING
-
322-47540 PLUG, ALLEN HEADPLUG, ALLEN HEAD
-
422-416223 PLUG, PIPEPLUG, PIPE
-
510-60410 SCREW, HOUSING TO INTAKE MANIFOLD (1")SCREW, HOUSING TO INTAKE MANIFOLD (1")
-
613-35048 LOCKWASHER, THERMOSTATE HOUSING SCREWLOCKWASHER, THERMOSTATE HOUSING SCREW
-
727-530451 GASKET, THERMOSTAT HOUSINGGASKET, THERMOSTAT HOUSING
-
88M0089715 THERMOSTAT (143)THERMOSTAT (143)
-
947441A1 COVER, THERMOSTATCOVER, THERMOSTAT
-
1027-488181 GASKET, THERMOSTAT COVERGASKET, THERMOSTAT COVER
-
1132-33189 HOSE, THERMOSTAT HOUSING TO WATER PUMP (MOLDED)HOSE, THERMOSTAT HOUSING TO WATER PUMP (MOLDED)
-
1254-815504228 CLAMP, HOSE TO THERMOSTAT HOSUING AND WATER PUMPCLAMP, HOSE TO THERMOSTAT HOSUING AND WATER PUMP
-
1332-76847A1 HOSE ASS'Y HSG. TO TRANSOM (W/O POWER STEERING) MCM 228HOSE ASS'Y HSG. TO TRANSOM (W/O POWER STEERING) MCM 228
-
1332-77479A2 HOSE ASS'Y HSG. TO COOLER (W/POWER STEERING) MCM 228HOSE ASS'Y HSG. TO COOLER (W/POWER STEERING) MCM 228
-
1454-47715 CLAMP, HOSE ATTACHING MCM 228CLAMP, HOSE ATTACHING MCM 228
-
1454-64489 CLAMP, HOSE ATTACHING MCM 228CLAMP, HOSE ATTACHING MCM 228
-
1554-815504220 CLAMP, HOSE ATTACHING MCM 228CLAMP, HOSE ATTACHING MCM 228
-
1673738A4 ELBOW, EXHAUST (MCM 228)ELBOW, EXHAUST (MCM 228)
-
1673660 ELBOW, EXHAUST - PORT MCM 228 TRELBOW, EXHAUST - PORT MCM 228 TR
-
1673659A3 ELBOW, EXHAUST - STARBOARD MCM 228 TRELBOW, EXHAUST - STARBOARD MCM 228 TR
-
1710-60992 SCREW EXHUAST ELBOW (1 1/4")-MCM 228SCREW EXHUAST ELBOW (1 1/4")-MCM 228
-
1710-8M0113174 SCREW, EXHUAST ELBOW (1 1/4")-MCM 228 TRSCREW, EXHUAST ELBOW (1 1/4")-MCM 228 TR
-
1813-35048 LOCKWASHER, ELBOW SCREW MCM 228 AND MCM 228 TRLOCKWASHER, ELBOW SCREW MCM 228 AND MCM 228 TR
-
1970981A3 BELLOWS, EXHUAST ELBOW MCM 228 AND MCM 228 TRBELLOWS, EXHUAST ELBOW MCM 228 AND MCM 228 TR
-
2054-815504456 CLAMP, BELLOW TO EXHUAST ELBOW (UPPER)
MCM 228 AND MCM 228 TRCLAMP, BELLOW TO EXHUAST ELBOW (UPPER)
MCM 228 AND MCM 228 TR -
2054-815504372 CLAMP, BELLOW TO EXHAUST ELBOW (LOWER)
MCM 228 AND MCM 228 TRCLAMP, BELLOW TO EXHAUST ELBOW (LOWER)
MCM 228 AND MCM 228 TR -
2125-35029 "O" RING, EXHUAST ELBOW TO TRANSOM PLATE
MCM 228 AND MCM 228 TR"O" RING, EXHUAST ELBOW TO TRANSOM PLATE
MCM 228 AND MCM 228 TR -
2260930 SHUTTER, WATER EXHAUST SEPARATOR
MCM 228 AND MCM 228 TRSHUTTER, WATER EXHAUST SEPARATOR
MCM 228 AND MCM 228 TR -
2360931 RETAINER, WATER SHUTTER (MCM 228)RETAINER, WATER SHUTTER (MCM 228)
-
2363151T RETAINER, WATER SHUTTER (MCM 228 TR)RETAINER, WATER SHUTTER (MCM 228 TR)
-
2459825A9 SEPARATOR, EXHAUST MCM 228SEPARATOR, EXHAUST MCM 228
-
2510-60835 SCREW, SPEARATOR TO HOUSING (5") MCM 228SCREW, SPEARATOR TO HOUSING (5") MCM 228
-
2610-60992 SCREW, SEPARATOR TO HOUSING (1 1/4") MCM 228SCREW, SEPARATOR TO HOUSING (1 1/4") MCM 228
-
2713-35048 LOCKWASHER, SEPARATOR SCREW MCM 228LOCKWASHER, SEPARATOR SCREW MCM 228
