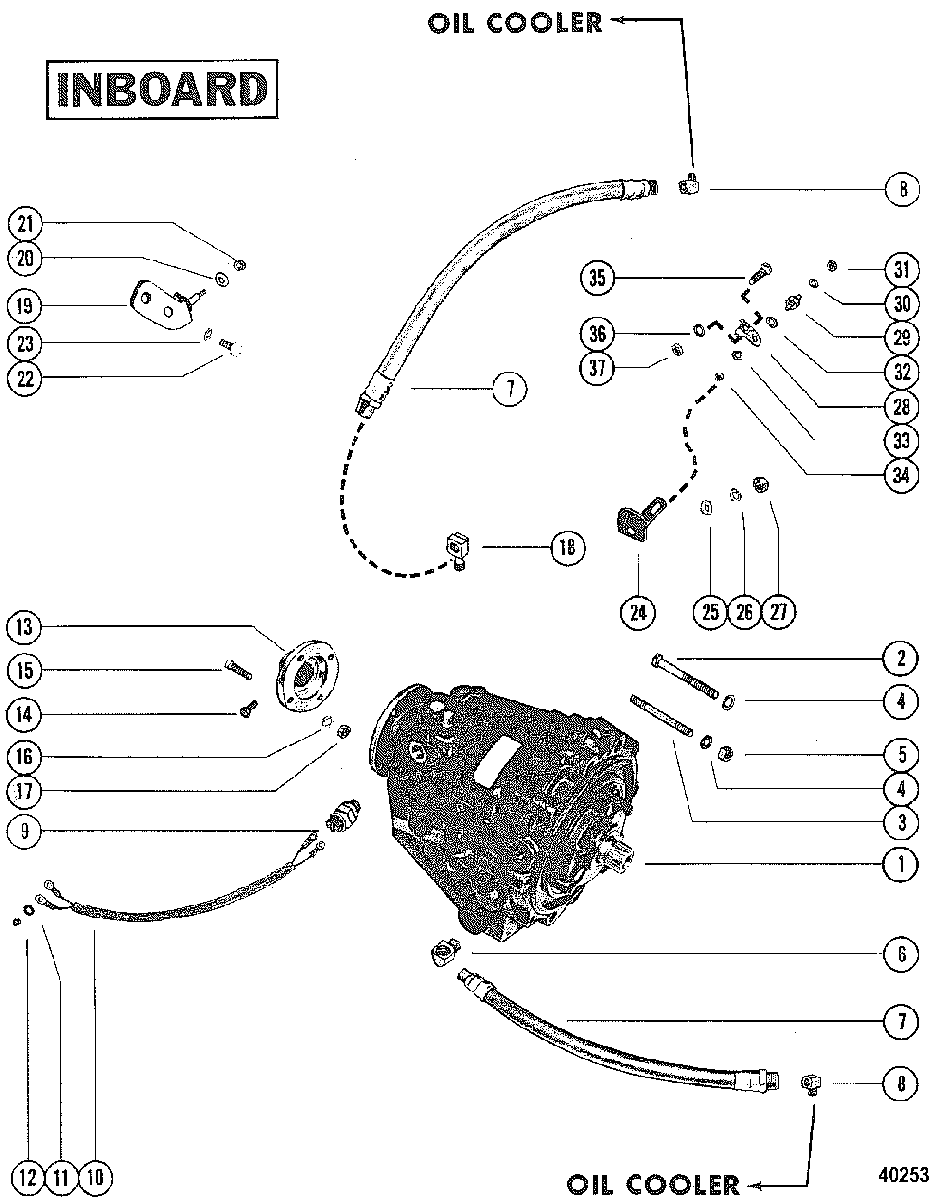

TRANSMISSION AND RELATED PARTS(INBOARD) для Mercruiser - 228 (4 BBL.) GM 305 V-8 1979-1982 5170009 THRU 6218461
-
№АртикулНазвание
-
147805A7 TRANSMISSION (DIRECT DRIVE)TRANSMISSION (DIRECT DRIVE)
-
147806R07 TRANSMISSION (1.523:1 REDUCTION)TRANSMISSION (1.523:1 REDUCTION)
-
147807A7 TRANSMISSION (1.909:1 REDUCTION)TRANSMISSION (1.909:1 REDUCTION)
-
147808R07 TRANSMISSION (2.57:1 REDUCTION)TRANSMISSION (2.57:1 REDUCTION)
-
147809A7 TRANSMISSION (2.909:1 REDUCTION)TRANSMISSION (2.909:1 REDUCTION)
-
210-47724 SCREW, (.437-14 x 3.00), TRANSMISSION TO ENGINE
47805SCREW, (.437-14 x 3.00), TRANSMISSION TO ENGINE
47805 -
210-60179 SCREW, (.437-14 x 3.500), TRANSMISSION TO ENGINE
All except 47805SCREW, (.437-14 x 3.500), TRANSMISSION TO ENGINE
All except 47805 -
316-57921 STUD, (.437-14/.437-20 x 4.00), TRANSMISSION TO ENGINE
47805STUD, (.437-14/.437-20 x 4.00), TRANSMISSION TO ENGINE
47805 -
413-32993 LOCKWASHER, (.437), TRANSMISSION SCREW AND STUDLOCKWASHER, (.437), TRANSMISSION SCREW AND STUD
-
511-22024 NUT, (.437-14), TRANSMISSION STUD
47805NUT, (.437-14), TRANSMISSION STUD
47805 -
622-47629 ELBOW, 90 Degree, HOSE TO TRANSMISSION
All except 47805ELBOW, 90 Degree, HOSE TO TRANSMISSION
All except 47805 -
622-63835 ELBOW, 45 Degree, HOSE TO TRANSMISSION
All except 47805ELBOW, 45 Degree, HOSE TO TRANSMISSION
All except 47805 -
732-475166 HOSE, TRANSMISSION TO OIL COOLER (28")
47805HOSE, TRANSMISSION TO OIL COOLER (28")
47805 -
732-4751612 HOSE, TRANSMISSION TO OIL COOLER (20")
All except 47805HOSE, TRANSMISSION TO OIL COOLER (20")
All except 47805 -
732-475166 HOSE ASSEMBLY, (30.00 Inches), TRANSMISSION TO OIL COOLER (30")HOSE ASSEMBLY, (30.00 Inches), TRANSMISSION TO OIL COOLER (30")
-
822-47629 ELBOW, 90 Degree, HOSE TO OIL COOLERELBOW, 90 Degree, HOSE TO OIL COOLER
-
947613 SWITCH, NEUTRAL SAFETYSWITCH, NEUTRAL SAFETY
-
1387917A1 FLANGE ASSEMBLY (1")
47805 (See Note 1)FLANGE ASSEMBLY (1")
47805 (See Note 1) -
1387917A2 FLANGE ASSEMBLY (1 1/8")
47805 (See Note 1)FLANGE ASSEMBLY (1 1/8")
47805 (See Note 1) -
1387917A3 FLANGE ASSEMBLY (1 1/4")
47805 (See Note 1)FLANGE ASSEMBLY (1 1/4")
47805 (See Note 1) -
1348384A1 FLANGE ASSEMBLY (1 3/8")
47805 (See Note 1)FLANGE ASSEMBLY (1 3/8")
47805 (See Note 1) -
1387917A5 FLANGE ASSEMBLY (1 1/2")
47805 (See Note 1)FLANGE ASSEMBLY (1 1/2")
47805 (See Note 1) -
1379476A1 FLANGE ASSEMBLY (1")
All Except 47805 (See Note 2)FLANGE ASSEMBLY (1")
All Except 47805 (See Note 2) -
1379476A2 FLANGE ASSEMBLY (1 1/8")
All Except 47805 (See Note 2)FLANGE ASSEMBLY (1 1/8")
All Except 47805 (See Note 2) -
1379476A3 FLANGE ASSEMBLY (1 1/4")
All Except 47805 (See Note 2)FLANGE ASSEMBLY (1 1/4")
All Except 47805 (See Note 2) -
1379476A4 FLANGE ASSEMBLY (1 3/8")
All Except 47805 (See Note 2)FLANGE ASSEMBLY (1 3/8")
All Except 47805 (See Note 2) -
1379476A5 FLANGE ASSEMBLY (1 1/2")
All Except 47805 (See Note 2)FLANGE ASSEMBLY (1 1/2")
All Except 47805 (See Note 2) -
1410-60168 SCREW, FLANGE TO PROPELLER SHAFT (1 1/2")
47805 (See Note 1 & 2)SCREW, FLANGE TO PROPELLER SHAFT (1 1/2")
47805 (See Note 1 & 2) -
1410-60171 SCREW, (.375-16 x 1.250), FLANGE TO PROPELLER SHAFT
All Except 47805 (See Note 1 & 2)SCREW, (.375-16 x 1.250), FLANGE TO PROPELLER SHAFT
All Except 47805 (See Note 1 & 2) -
1410-60171 SCREW, (1 In.), FLANGE TO PROPELLERE SHAFT
All Except 47805 (See Note 1 & 2)SCREW, (1 In.), FLANGE TO PROPELLERE SHAFT
All Except 47805 (See Note 1 & 2) -
1410-60169 SCREW, (.375-16 x .750), FLANGE TO PROPELLEER SHAFT
47805 (See Note 1 & 2)SCREW, (.375-16 x .750), FLANGE TO PROPELLEER SHAFT
47805 (See Note 1 & 2) -
1510-37909 SCREW, (.375-24 x 1.125), FLANGE TO TRANSMISSION
47805SCREW, (.375-24 x 1.125), FLANGE TO TRANSMISSION
47805 -
1613-35048 LOCKWASHER, (.375), TRANSMISSION FLANGE SCREW
47805LOCKWASHER, (.375), TRANSMISSION FLANGE SCREW
47805 -
1711-46335 NUT, TRANSMISSION FLANGE SCREW
47805NUT, TRANSMISSION FLANGE SCREW
47805 -
1510-60106 SCREW, (1.25 In), FLANGE TO PROPELLER FLANGE (1 1/4")
All Except 47805SCREW, (1.25 In), FLANGE TO PROPELLER FLANGE (1 1/4")
All Except 47805 -
1613-32993 LOCKWASHER, (.437), FLANGE SCREW
All Except 47805LOCKWASHER, (.437), FLANGE SCREW
All Except 47805 -
1711-22024 NUT, (.437-14), FLANGE SCREW
All Except 47805NUT, (.437-14), FLANGE SCREW
All Except 47805 -
1822-47629 ELBOW, 90 Degree, HOSE TO TRANSMISSION
47805ELBOW, 90 Degree, HOSE TO TRANSMISSION
47805 -
1822-63824 ELBOW, HOSE TO TRANSMISSION (90 DEGREE)
All Except 47805ELBOW, HOSE TO TRANSMISSION (90 DEGREE)
All Except 47805 -
1963815A1 BRACKET, SHIFT CABLEBRACKET, SHIFT CABLE
-
2012-56681 WASHER, SHIFT CABLE TO BRACKET STUDWASHER, SHIFT CABLE TO BRACKET STUD
-
2111-46438 NUT, (#10-32), SHIFT CABLE TO BRACKET STUDNUT, (#10-32), SHIFT CABLE TO BRACKET STUD
-
2210-65746 SCREW, (.75 In.), BRACKET TO TRANSMISSIONSCREW, (.75 In.), BRACKET TO TRANSMISSION
-
2313-26992 LOCKWASHER, (.250) Stainless Steel, BRACKET SCREWLOCKWASHER, (.250) Stainless Steel, BRACKET SCREW
-
2448515 LEVER, SHIFT - TRANSMISSIONLEVER, SHIFT - TRANSMISSION
-
2512-20722 WASHER, (.328 x .625 x .060), SHIFT LEVER TO TRANSMISSIONWASHER, (.328 x .625 x .060), SHIFT LEVER TO TRANSMISSION
-
2613-26993 LOCKWASHER, (.312), SHIFT LEVER TO TRANSMISSIONLOCKWASHER, (.312), SHIFT LEVER TO TRANSMISSION
-
2711-22053 NUT, (5/16-24), SHIFT LEVER TO TRANSMISSIONNUT, (5/16-24), SHIFT LEVER TO TRANSMISSION
-
2848652 ADAPTOR, SHIFT CABLE TO SHIFT LEVERADAPTOR, SHIFT CABLE TO SHIFT LEVER
-
2916-48680 STUD, (1.25), SHIFT CABLE ADAPTOR TO SHIFT LEVERSTUD, (1.25), SHIFT CABLE ADAPTOR TO SHIFT LEVER
-
3012-20533 WASHER, SHIFT CABLE ADAPTOR STUDWASHER, SHIFT CABLE ADAPTOR STUD
-
3111-20184 NUT, (1/4-28), SHIFT CABLE ADAPTOR STUDNUT, (1/4-28), SHIFT CABLE ADAPTOR STUD
-
3213-29402 WAVE WASHER, SHIFT CABLE ADAPTOR STUDWAVE WASHER, SHIFT CABLE ADAPTOR STUD
-
3312-56681 WASHER, (.203 x .500 x .032), SHIFT CABLE ADAPTOR STUDWASHER, (.203 x .500 x .032), SHIFT CABLE ADAPTOR STUD
-
3411-46438 NUT, (#10-32), SHIFT CABLE ADAPTOR STUDNUT, (#10-32), SHIFT CABLE ADAPTOR STUD
-
3510-20639 SCREW, (.312-24 x 1.12), SHIFT CABLE TO ADAPTORSCREW, (.312-24 x 1.12), SHIFT CABLE TO ADAPTOR
-
3612-22753 WASHER, SHIFT CABLE SCREWWASHER, SHIFT CABLE SCREW
-
3711-29250 NUT, (5/16-24), SHIFT CABLE SCREWNUT, (5/16-24), SHIFT CABLE SCREW
