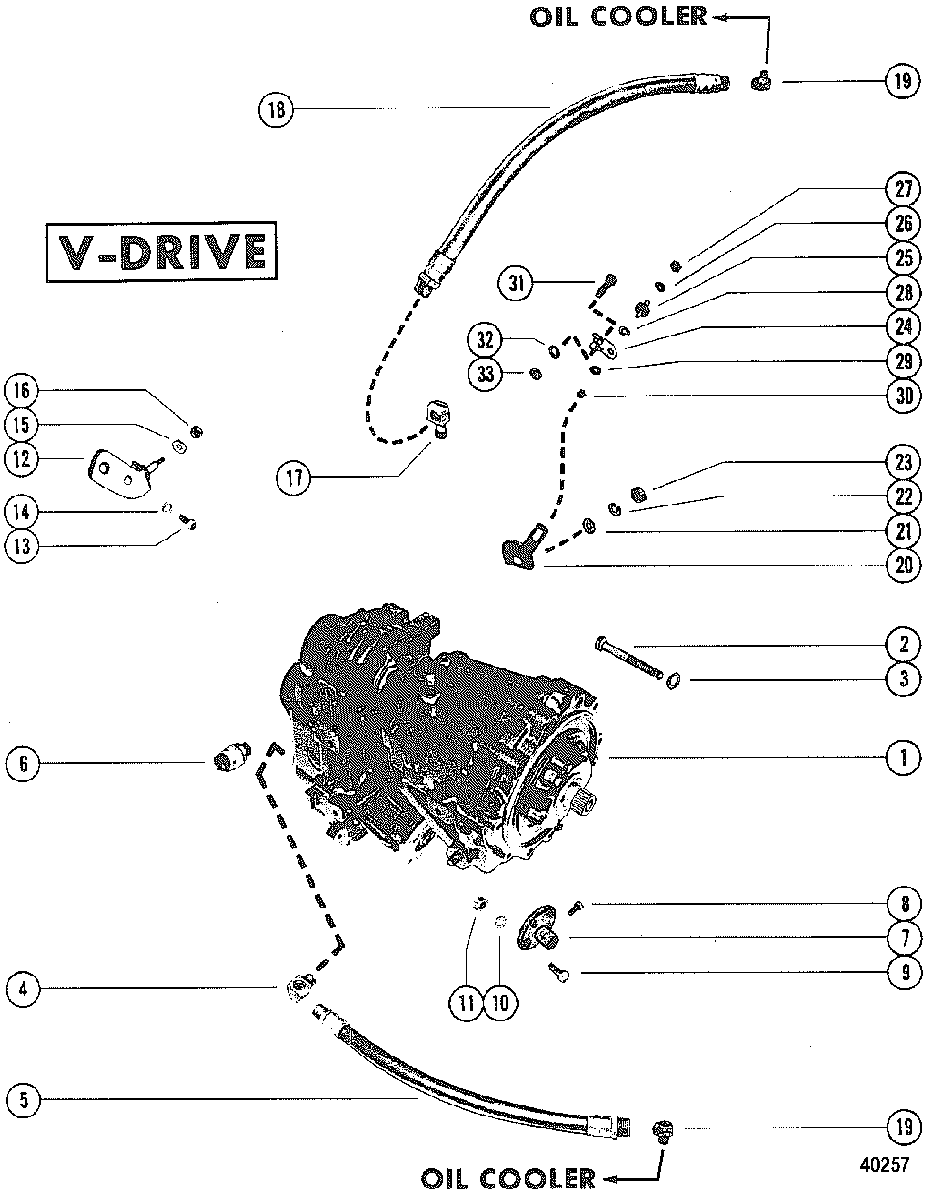

TRANSMISSION AND RELATED PARTS(V-DRIVE) для Mercruiser - 228 MIE (4 BBL.) GM 305 V-8 1979-1980 5170009 THRU 5907057
-
№АртикулНазвание
-
160953A13 TRANSMISSION, V-DRIVE (DIRECT DRIVE)TRANSMISSION, V-DRIVE (DIRECT DRIVE)
-
160588A11 TRANSMISSION, V-DRIVE (1.51:1 REDUCTION)TRANSMISSION, V-DRIVE (1.51:1 REDUCTION)
-
160954A11 TRANSMISSION, V-DRIVE (1.99:1 REDUCTION)TRANSMISSION, V-DRIVE (1.99:1 REDUCTION)
-
160955A10 TRANSMISSION, V-DRIVE (2.49:1 REDUCTION)TRANSMISSION, V-DRIVE (2.49:1 REDUCTION)
-
160956A11 TRANSMISSION, V-DRIVE (3.14:1 REDUCTION)TRANSMISSION, V-DRIVE (3.14:1 REDUCTION)
-
210-47724 SCREW, (.437-14 x 3.00), TRANSMISSION TO ENGINESCREW, (.437-14 x 3.00), TRANSMISSION TO ENGINE
-
313-32993 LOCKWASHER, (.437), TRANSMISSION SCREWLOCKWASHER, (.437), TRANSMISSION SCREW
-
422-63824 ELBOW, HOSE TO TRANSMISSION (90 DEGREE)ELBOW, HOSE TO TRANSMISSION (90 DEGREE)
-
532-475169 HOSE ASSEMBLY, (37.00 Inches), OIL COOLER TO TRANSMISSIONHOSE ASSEMBLY, (37.00 Inches), OIL COOLER TO TRANSMISSION
-
647613 SWITCH, NEUTRAL SAFETYSWITCH, NEUTRAL SAFETY
-
779476A1 FLANGE ASSEMBLY (1")FLANGE ASSEMBLY (1")
-
779476A2 FLANGE ASSEMBLY (1 1/8")FLANGE ASSEMBLY (1 1/8")
-
779476A3 FLANGE ASSEMBLY (1 1/4")FLANGE ASSEMBLY (1 1/4")
-
779476A4 FLANGE ASSEMBLY (1 3/8")FLANGE ASSEMBLY (1 3/8")
-
779476A5 FLANGE ASSEMBLY (1 1/2")FLANGE ASSEMBLY (1 1/2")
-
779476A6 FLANGE ASSEMBLY (1 3/4")FLANGE ASSEMBLY (1 3/4")
-
779476A7 FLANGE ASSEMBLY (2")FLANGE ASSEMBLY (2")
-
810-60171 SCREW, (.375-16 x 1.250), FLANGE TO PROPELLER SHAFT
(See Note)SCREW, (.375-16 x 1.250), FLANGE TO PROPELLER SHAFT
(See Note) -
810-60171 SCREW, (1 In.), FLANGE TO PROPELLER SHAFT
(See Note)SCREW, (1 In.), FLANGE TO PROPELLER SHAFT
(See Note) -
810-60169 SCREW, (.375-16 x .750), FLANGE TO PROPELLER SHAFT
(See Note)SCREW, (.375-16 x .750), FLANGE TO PROPELLER SHAFT
(See Note) -
910-60106 SCREW, (1.25 In), TRANSMISSION FLANGE TO PROPELLER FLANGESCREW, (1.25 In), TRANSMISSION FLANGE TO PROPELLER FLANGE
-
1013-32993 LOCKWASHER, (.437), FLANGE SCREWLOCKWASHER, (.437), FLANGE SCREW
-
1111-22024 NUT, (.437-14), FLANGE SCREWNUT, (.437-14), FLANGE SCREW
-
1263815A1 BRACKET, SHIFT CABLEBRACKET, SHIFT CABLE
-
1310-65746 SCREW, (.75 In.), BRACKET TO FLYWHEEL HOUSINGSCREW, (.75 In.), BRACKET TO FLYWHEEL HOUSING
-
1413-26992 LOCKWASHER, (.250) Stainless Steel, BRACKET TO TRANSMISSION SCREWLOCKWASHER, (.250) Stainless Steel, BRACKET TO TRANSMISSION SCREW
-
1512-56681 WASHER, SHIFT CABLE TO BRACKET STUDWASHER, SHIFT CABLE TO BRACKET STUD
-
1611-46438 NUT, (#10-32), SHIFT CABLE TO BRACKET STUDNUT, (#10-32), SHIFT CABLE TO BRACKET STUD
-
1722-47629 ELBOW, 90 Degree, HOSE TO TRANSMISSIONELBOW, 90 Degree, HOSE TO TRANSMISSION
-
1832-475169 HOSE, TRANSMISSION TO OIL COOLER (33")HOSE, TRANSMISSION TO OIL COOLER (33")
-
1922-47629 ELBOW, 90 Degree, HOSE TO OIL COOLERELBOW, 90 Degree, HOSE TO OIL COOLER
-
2048515 LEVER, SHIFT - TRANSMISSIONLEVER, SHIFT - TRANSMISSION
-
2112-20722 WASHER, (.328 x .625 x .060), SHIFT LEVER TO TRANSMISSIONWASHER, (.328 x .625 x .060), SHIFT LEVER TO TRANSMISSION
-
2213-26993 LOCKWASHER, (.312), SHIFT LEVER TO TRANSMISSIONLOCKWASHER, (.312), SHIFT LEVER TO TRANSMISSION
-
2311-22053 NUT, (5/16-24), SHIFT LEVER TO TRANSMISSIONNUT, (5/16-24), SHIFT LEVER TO TRANSMISSION
-
2448652 ADAPTOR, SHIFT CABLE TO SHIFT LEVERADAPTOR, SHIFT CABLE TO SHIFT LEVER
-
2516-48680 STUD, (1.25), SHIFT CABLE ADAPTOR TO SHIFT LEVERSTUD, (1.25), SHIFT CABLE ADAPTOR TO SHIFT LEVER
-
2612-20533 WASHER, SHIFT CABLE ADAPTOR STUDWASHER, SHIFT CABLE ADAPTOR STUD
-
2711-20184 NUT, (1/4-28), SHIFT CABLE ADAPTOR STUD (1/4-28)NUT, (1/4-28), SHIFT CABLE ADAPTOR STUD (1/4-28)
-
2813-29402 WAVE WASHER, SHIFT CABLE ADAPTOR STUDWAVE WASHER, SHIFT CABLE ADAPTOR STUD
-
2912-56681 WASHER, SHIFT CABLE ADAPTOR STUDWASHER, SHIFT CABLE ADAPTOR STUD
-
3011-46438 NUT, (#10-32), SHIFT CABLE ADAPTOR STUDNUT, (#10-32), SHIFT CABLE ADAPTOR STUD
-
3110-20639 SCREW, (.312-24 x 1.12), SHIFT CABLE TO ADAPTORSCREW, (.312-24 x 1.12), SHIFT CABLE TO ADAPTOR
-
3212-22753 WASHER, SHIFT CABLE SCREWWASHER, SHIFT CABLE SCREW
-
3311-29250 NUT, (5/16-24), SHIFT CABLE SCREW (5/16-24)NUT, (5/16-24), SHIFT CABLE SCREW (5/16-24)
