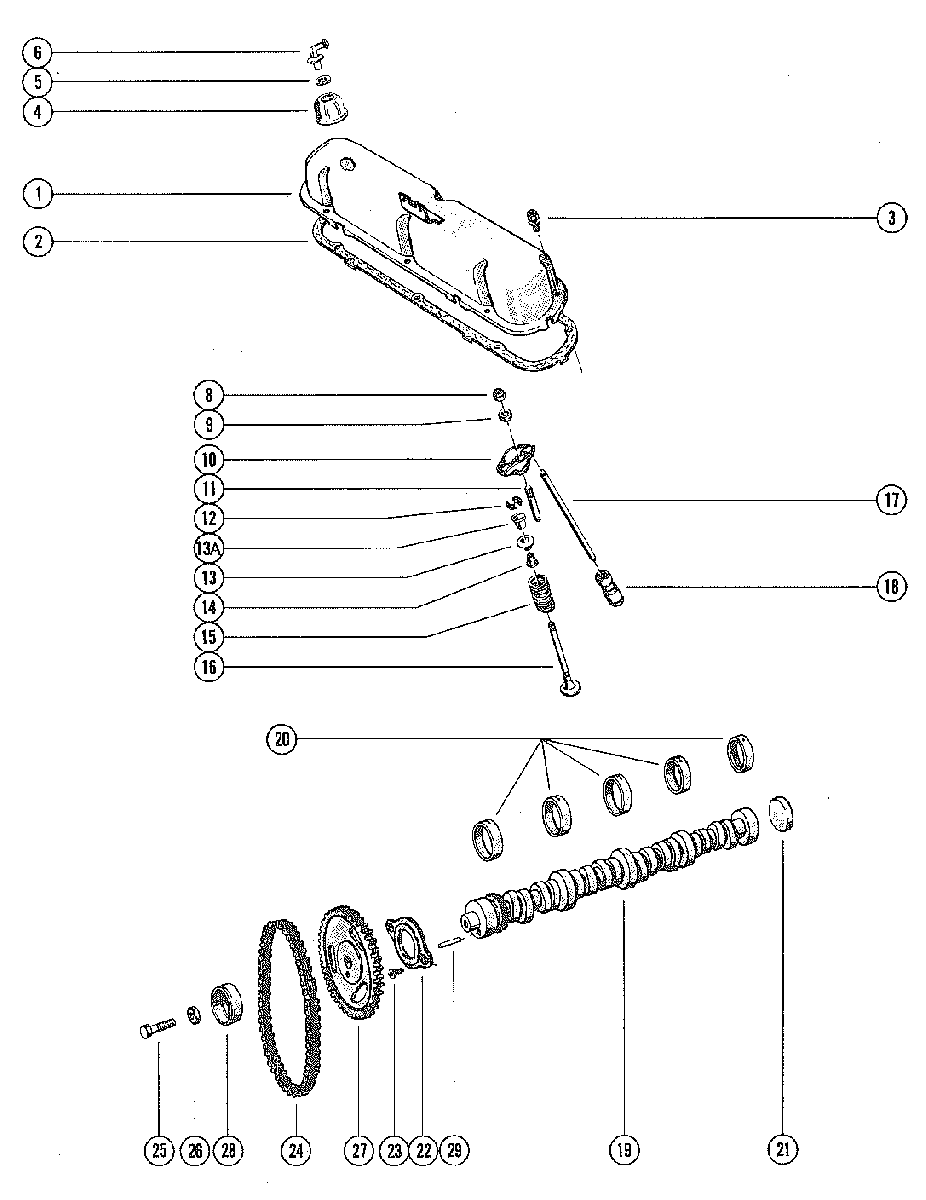

ROCKER COVER, CAMSHAFT AND VALVES для Mercruiser - 233 FORD 351 V-8 1975-1977 4173000 THRU 4902304
-
№АртикулНазвание
-
156156 COVER, ROCKER (PORT)COVER, ROCKER (PORT)
-
156171 COVER, ROCKER (STARBOARD)COVER, ROCKER (STARBOARD)
-
227-56173 GASKET, ROCKER COVERGASKET, ROCKER COVER
-
310-60708 SCREW, ROCKER COVER TO CYLINDER HEAD (9/16")SCREW, ROCKER COVER TO CYLINDER HEAD (9/16")
-
465152 CAP, OIL FILLER -ROCKER COVERCAP, OIL FILLER -ROCKER COVER
-
525-65196 GROMMET, OIL FILLER CAPGROMMET, OIL FILLER CAP
-
665197 ELBOW, OIL FILLER CAPELBOW, OIL FILLER CAP
-
637-77250 DECAL, ROCKER COVER -"H.P."DECAL, ROCKER COVER -"H.P."
-
811-56167 NUT, ROCKER ARM STUDNUT, ROCKER ARM STUD
-
956166 BALL, ROCKER ARMBALL, ROCKER ARM
-
1056168 ARM, ROCKERARM, ROCKER
-
1116-56164 STUD, ROCKER ARM - CYLINDER HEAD (STANDARD)STUD, ROCKER ARM - CYLINDER HEAD (STANDARD)
-
1116-58242 STUD, ROCKER ARM - CYLINDER HEAD (.006 O.S.)STUD, ROCKER ARM - CYLINDER HEAD (.006 O.S.)
-
1116-58243 STUD, ROCKER ARM - CYLINDER HEAD (.015 O.S.)STUD, ROCKER ARM - CYLINDER HEAD (.015 O.S.)
-
1228-547971 KEY, VALVE STEM (2 PER VALVE)KEY, VALVE STEM (2 PER VALVE)
-
1372561 RETAINER, VALVE SPRING (INLET AND EXHAUST)RETAINER, VALVE SPRING (INLET AND EXHAUST)
-
13A72562 SLEEVE, VALVE SPRING _ INLET AND EXHAUSTSLEEVE, VALVE SPRING _ INLET AND EXHAUST
-
1426-75624 SEAL, VALVE (STANDARD)
SERIAL 00000000-04500860SEAL, VALVE (STANDARD)
SERIAL 00000000-04500860 -
1426-75624 SEAL, VALVE (.015 O.S.)
SERIAL 00000000-04500860SEAL, VALVE (.015 O.S.)
SERIAL 00000000-04500860 -
1524-56159 SPRING, VALVE
SERIAL 00000000-04500860SPRING, VALVE
SERIAL 00000000-04500860 -
1671777 VALVE, EXHAUST (STANDARD)
SERIAL 00000000-04500860VALVE, EXHAUST (STANDARD)
SERIAL 00000000-04500860 -
1671778 VALVE, EXHAUST (.015 O.S.)
SERIAL 00000000-04500860VALVE, EXHAUST (.015 O.S.)
SERIAL 00000000-04500860 -
1671779 VALVE, INLET (STANDARD)
SERIAL 00000000-04500860VALVE, INLET (STANDARD)
SERIAL 00000000-04500860 -
1672560 VALVE, INLET (.015 O.S.)
SERIAL 00000000-04500860VALVE, INLET (.015 O.S.)
SERIAL 00000000-04500860 -
1764784 ROD, PUSH
SERIAL 00000000-04500860ROD, PUSH
SERIAL 00000000-04500860 -
1426-75624 SEAL, VALVE (STANDARD)
SERIAL 04500861-09999999SEAL, VALVE (STANDARD)
SERIAL 04500861-09999999 -
1426-75624 SEAL, VALVE (.015 O.S.)
SERIAL 04500861-09999999SEAL, VALVE (.015 O.S.)
SERIAL 04500861-09999999 -
1524-75619 SPRING, VALVE - EXHAUST
SERIAL 04500861-09999999SPRING, VALVE - EXHAUST
SERIAL 04500861-09999999 -
1524-56159 SPRING, VALVE - INTAKE
SERIAL 04500861-09999999SPRING, VALVE - INTAKE
SERIAL 04500861-09999999 -
1675621 VALVE, EXAUS (STANDARD)
SERIAL 04500861-09999999VALVE, EXAUS (STANDARD)
SERIAL 04500861-09999999 -
1675622 VALVE, EXHAUST (.150 O.S.)
SERIAL 04500861-09999999VALVE, EXHAUST (.150 O.S.)
SERIAL 04500861-09999999 -
1671779 VALVE, INLET (STANDARD)
SERIAL 04500861-09999999VALVE, INLET (STANDARD)
SERIAL 04500861-09999999 -
1672560 VALVE, INLET (.015 O.S.)
SERIAL 04500861-09999999VALVE, INLET (.015 O.S.)
SERIAL 04500861-09999999 -
1775644 ROD, PUSH
SERIAL 04500861-09999999ROD, PUSH
SERIAL 04500861-09999999 -
1856153 LIFTER, HYDRAULIC - TAPPETLIFTER, HYDRAULIC - TAPPET
-
19447-5098 CAMSHAFT (LEFT HAND CRANKSHAFT ROTATION)CAMSHAFT (LEFT HAND CRANKSHAFT ROTATION)
-
19447-5099 CAMSHAFT (RIGHT HAND CRANKSHAT ROTATION)CAMSHAFT (RIGHT HAND CRANKSHAT ROTATION)
-
2023-56124 BEARING SET, CAMSHAFTBEARING SET, CAMSHAFT
-
2119-56128 PLUG, EXPANSION - CAMSHAFT BEARING HOLEPLUG, EXPANSION - CAMSHAFT BEARING HOLE
-
2256130 PLATE, THRUST - CAMSHAFT (STANDARD)PLATE, THRUST - CAMSHAFT (STANDARD)
-
2256131 PLATE, THRUST - CAMSHAFT (.002 O.S.)PLATE, THRUST - CAMSHAFT (.002 O.S.)
-
2256132 PLATE, THRUST - CAMSHAFT (.004 O.S.)PLATE, THRUST - CAMSHAFT (.004 O.S.)
-
2310-56133 SCREW, THRUST PLATE TO CYLINDER BLOCK (5/8")SCREW, THRUST PLATE TO CYLINDER BLOCK (5/8")
-
2456129 CHAIN, TIMINGCHAIN, TIMING
-
2510-56138 SCREW, ECDCENTRIC AND SPROCKET TO CAMSHAFT (1 1/2")SCREW, ECDCENTRIC AND SPROCKET TO CAMSHAFT (1 1/2")
-
2612-56136 WASHER, ECCENTRIC AND SPROCKET SCREWWASHER, ECCENTRIC AND SPROCKET SCREW
-
2743-66177 SPROCKET, CAMSHAFT TIMING (42 TEETH)SPROCKET, CAMSHAFT TIMING (42 TEETH)
-
2871684 ECCENTRIC, CAMSHAFT (FUEL PUMP DRIVE) - 1 PIECE
SEE NOTEECCENTRIC, CAMSHAFT (FUEL PUMP DRIVE) - 1 PIECE
SEE NOTE -
2917-66180 PIN DOWEL - CAMSHAFT
SEE NOTEPIN DOWEL - CAMSHAFT
SEE NOTE -
2743-66177A1 SPROCKET ASSEMBLY, CAMSHAFT TIMING (42 TEETH)
SEE NOTESPROCKET ASSEMBLY, CAMSHAFT TIMING (42 TEETH)
SEE NOTE -
2871684 ECCENTRIC, CAMSHAFT (FUEL PUMP DRIVE) - 2 PIECE
SEE NOTEECCENTRIC, CAMSHAFT (FUEL PUMP DRIVE) - 2 PIECE
SEE NOTE -
2917-66180 PIN, DOWEL - CAMSHAFT
SEE NOTEPIN, DOWEL - CAMSHAFT
SEE NOTE
